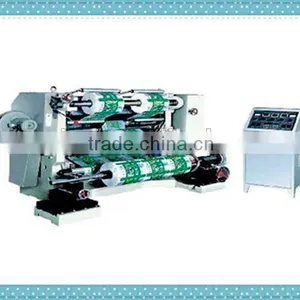

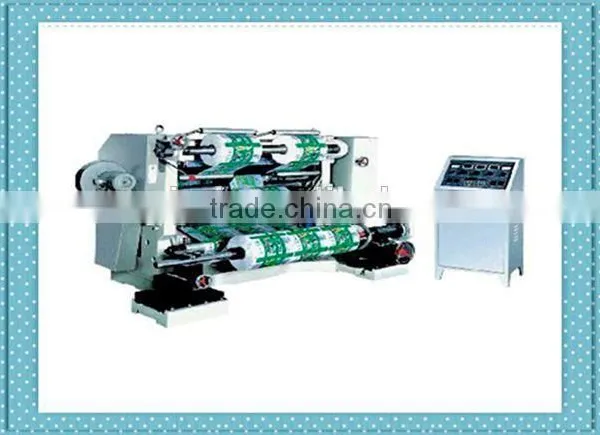

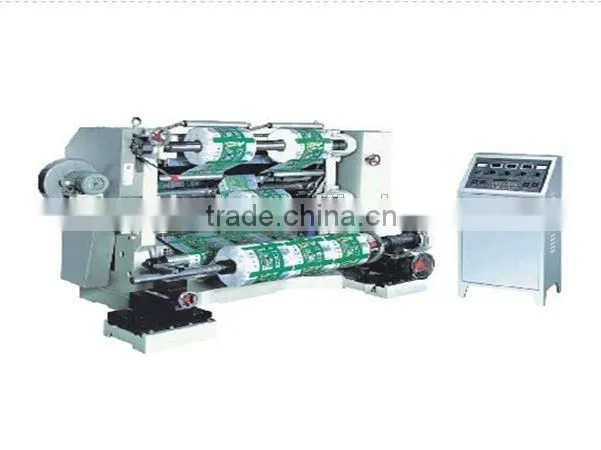

Help CenterHigh Precise Plastic Vertical Slitting & Rewinding Slitting Machine
Related Products
-
Vertical Ttr Slitting Machine Of XinTaiNegotiableMOQ: 1 Set -
Vertical Metal Slitting Machine For SaleNegotiableMOQ: 1 Set
-
Vertical Micro Slitting Machine Of XinTaiNegotiableMOQ: 1 Set
-
Vertical Bopp Slitting Machine For SaleNegotiableMOQ: 1 Set
-
Vertical Ultrasonic Slitting Machine Of XinTaiNegotiableMOQ: 1 Set
Specifications
Spec:1 Suitable for BOPP, PET, CPP, CPE, PVC, paper etc.
2 Cut material according to your needs.
High speed, High Precesion Slitting Machine
Features
1. A kind of vertical slitting & rewinding machine
2. Independent master control panel, more flexible and even easier operation.
4 Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.
4. standard shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control
5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control
6. Main motor with frequency converter for speed regulation
7. Equipped with rim charge conveying device.
8. Automatic meter counting device
high speed slliting machin
Printing Materials
suitable for PE,PP,PET,OPP,PVC and low gsm paper etc.
Type |
YAD-700A |
YAD-1100A |
YAD-1300A |
Max.Width of Mother Roll |
700mm |
1100mm |
1300mm |
MAX.Diameter of Mother Roll |
Φ600mm |
Φ600mm |
Φ600mm |
Width of Final Roll |
30-600mm |
30-600mm |
30-600mm |
Slitting and Rewinging Speed |
5-160m/min |
5-160m/min |
5-160m/min |
Tolerance of EPC |
<±0.5mm |
<±0.5mm |
<±0.5mm |
Total Power |
2.7kw |
3.5kw |
3.5kw |
Weight of Machine |
1200kg |
1500kg |
1800kg |
Overall Dimension |
2000×1110×1400mm |
2400×1110×1400mm |
2600×1110×1400mm |
NOTES: Changes Can be Made Based on Your Requirements!

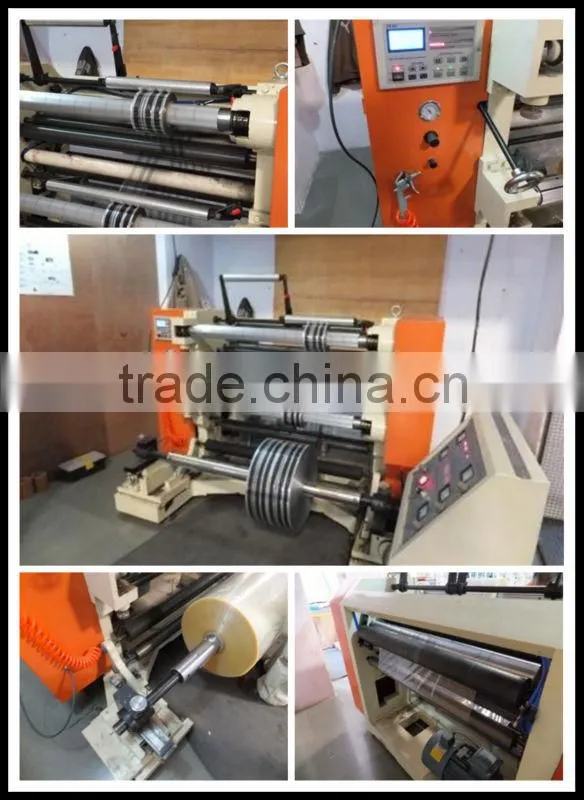

Machine Show
Contact Information
Xin Tai Printing Machinery CO., Ltd
Http: //
Tel: 86-577-65150222 86-65150111
Add: NO. 22 Industrial Road. XueQian Industrial Zone, RuiAn City, Zhejiang China
