Help CenterU Pipe Solar Collector
Related Products
Specifications
1.U-pipe solar collector composes of metal U pipetal slice, insulation layer
3. vacuum tube and collector frame

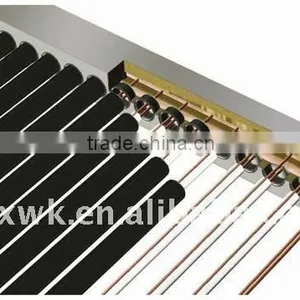

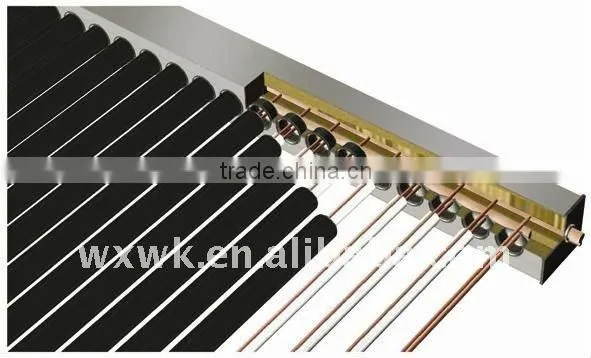

U pipe solar collector
1. The vacuum tubes transform solar light into heat energy and then transfer the heat to the working media depending upon the fin and U-shaped copper pipe in the manner of thermal conduction.
2. There is no water in the vacuum tube,so the tube will not broken in the winter.
3. It has a smaller thermal loss,stronger adaptability and better performance of aging-resistant membranous layer.
4. Can operate with water pressure up to 0.6MPa
5. Can be combined with existing energy source
6. Storage do not need be installed above the collector
7. It can be combined with the architecture perfectly
Manifold: |
Aluminum alloy-2.0mm/ Stainless steel 304 2B- 0.8mm |
Insulation: |
Polyurethane foam 50mm or Rock wool |
Frame: |
Aluminum alloy-2.0mm/ Stainless steel-1.2mm |
Coating of vacuum tube: |
QB-AL-SS/CU-47/1500/58/180 |
Collector mounting: |
Flat roof/slope roof |
Test Pressure and work pressure: |
Test pressure 9Bar, work pressure 6bar to 8bar |
