Specifications

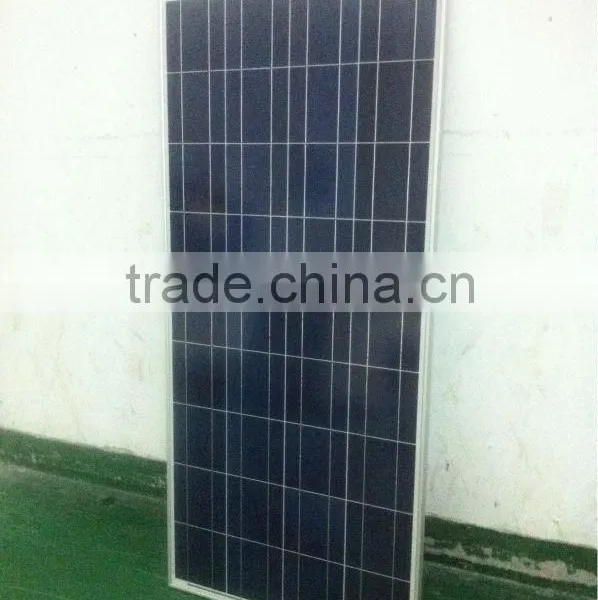

Long life-span, long warranty, green energy100 watt solar panels are professionally made from 36 high efficiency mono crystalline solar cells.

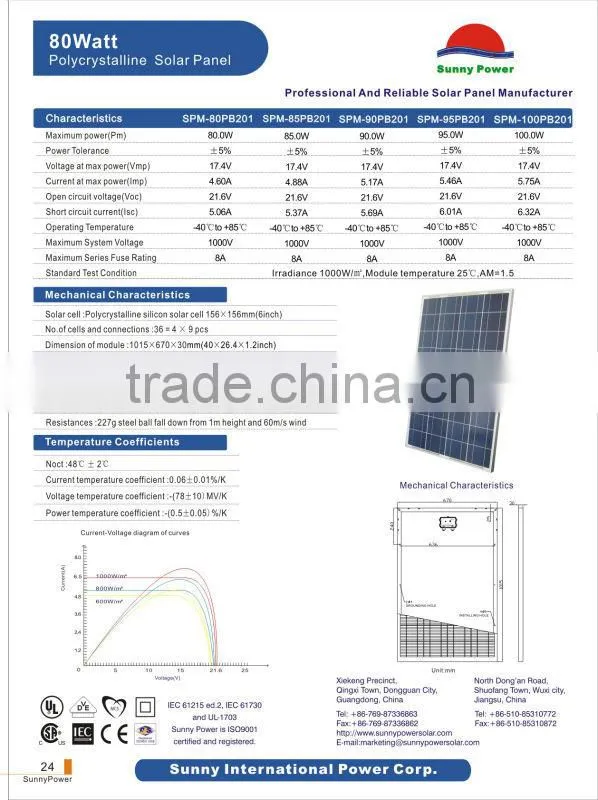

The following are the key technical data of the solar panel,
Maximum power(Pm): 100 watts
Voltage at max power(Vmp): 17.4 V
Current at max power(Imp): 5.75A
Open circuit voltage: 21.6 V
Short circuit current: 6.33 A
Maximum system voltage: 1000 V
Dimension of module:1015*670*30mm
Solar Panel Features:
1, Made of high efficiency 156mm x 156mm Polycrystalline solar cells.
2, 90cm long cables with male and female connectors for easy connections with other solar panels.
3, anti-reflective coating provides uniform black color and increases absorption of light in all weather conditions.
4, Industrial strength double EVA encapsulation with TPT multilayer backsheet for the best protection against water, moisture, UV, and oxidation.
5, Anodized aluminum frame provides structural strength and holes drilled at the right places for easy mounting, and drain holes to minimize water build up behind solar panels.
6, With VDE(IEC61215&IEC61730),CSA(UL1703), California Energy Commission (CEC)& CE certificate
Packing:
1x20’ft container can load with 750PCS
1x40’ft container can load with 1600PCS
