Specifications

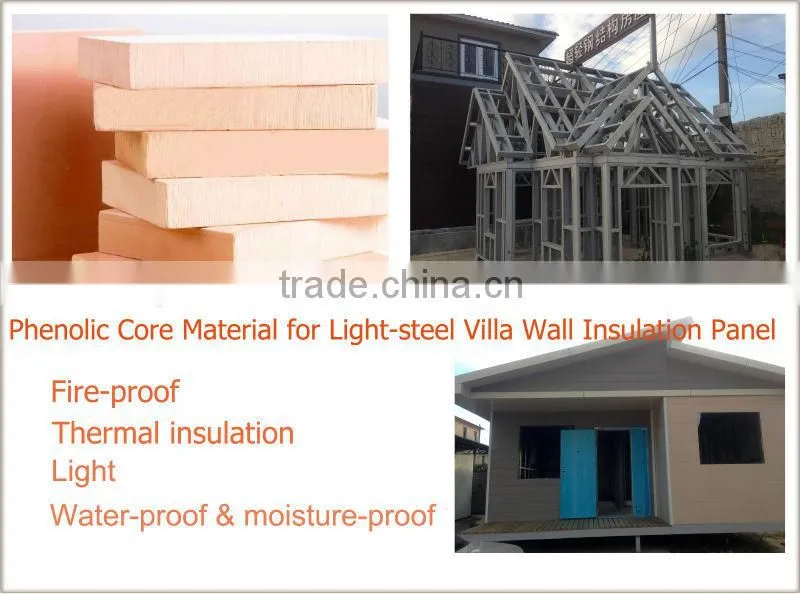

Phenolic foam insulation panel for light-steel villa core material:Fire Resistance Class 0;
Lightweight;
Water(moisture)-pro
Phenolic foam insulation material is a kind of new thermosetting foam,
Currently due to lightweight, superior fire resistance and excellent waterproof function, also been widely used in
the color steel sandwich panel and light steel villa industry, is the most potential alternatives of current products
like rockwool, EPS, XPS used in this fields.
Currently, the product is selected as the preferred fireproof core materials used on the light steel villa, prefab
housing, clean plant, have been exported to Taiwan, Europe, Indonesia, Middle East and other overseas
markets, and has been well recognized by the customers!
Compared with EPS, Rockwool:
Fire Resistance Class 0 BS476
Higher thermal efficiency
Non-toxicity and low smoke
Anticorrosion and Anti-aging property
Waterproof and moisture-proof
| Item | Unit | Specification |
| Foam Density | kg/m3 | 35-60 |
| Thermal Conductivity | w/m.k | 0.021 |
| Compressing Strength | Mpa | 0.25 |
| Bending Strength | Mpa | 1.2 |
| Combustibility Property | Class 0 (BS476 Part 6 & 7) Class A (ASTM E84) | |
| Water Absorption | % | 1.9 |
| Max Smoke Density | % | 2 |
| Dimension Change | % | 0.3 |
| Working Temperature | °C | -250- +150 |
| Maximum Allowable Wind Velocity | m/s | ≤15 |
| Continuous Running Maximum Temperature | °C | ≤120 |
Can be further used for prefabricated houses, granny flat, Sentry box,
Light steel villas, Compartment type houses, Additional layers, Partition walls,
Residential houses, Resort villa, commercial office, Motel, Storage room,
Container housing, Transportable building etc.
Inner plastic film, carton outside.
