Help CenterPhenolic Foam Koolduct for HVAC System
Related Products
-
GOOT Phenolic Foam Preinsulated Duct PanelUS$ 5 - 5.5MOQ: 1000 Square Meters -
GOOT Phenolic Foam Composite Panel for HVAC DuctworkUS$ 5 - 5.5MOQ: 1000 Square Meters
-
GOOT Phenolic Foam Air Conditioning Panel for HVAC SystemUS$ 5 - 5.5MOQ: 1000 Square Meters
-
GOOT Phenolic Foam Air Conditioning Duct Panel for HVAC SystemUS$ 5 - 5.5MOQ: 1000 Square Meters
-
20mm/25mm/30mm Fireproof Phenolic Foam HVAC Air Duct PanelUS$ 5 - 5.5MOQ: 1000 Square Meters

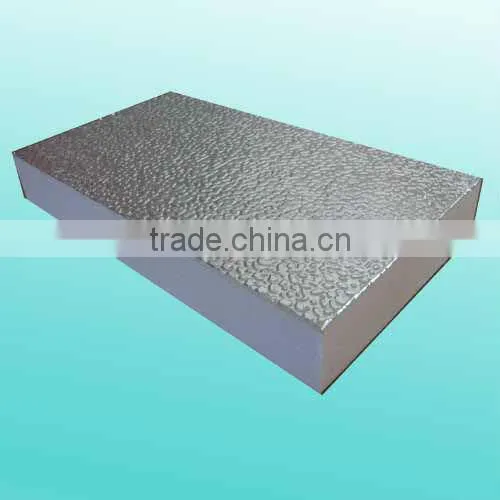

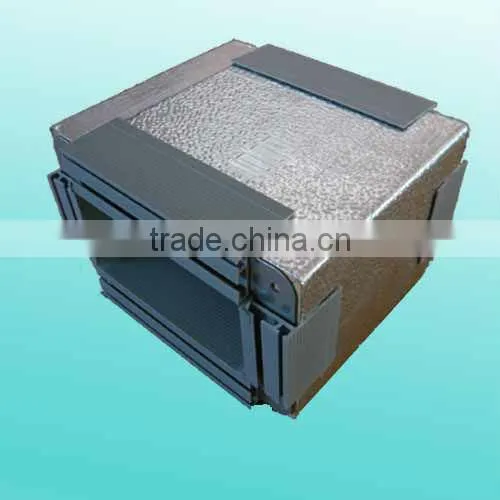

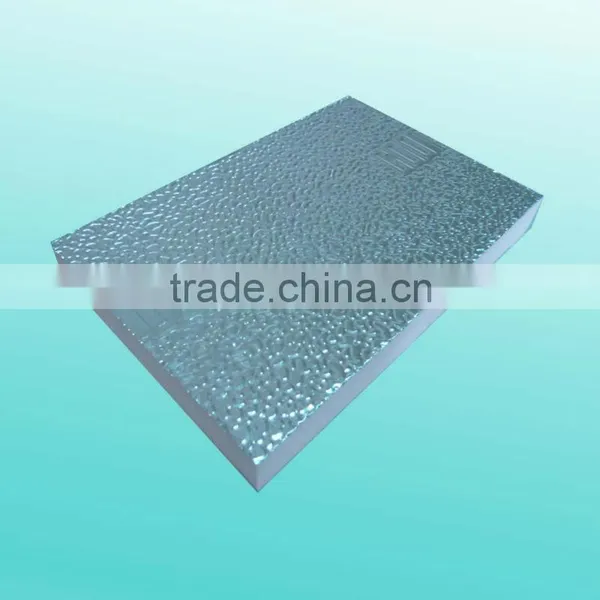

The GOOT® Phenolic Foam Koolduct for HVAC System is like no other insulated ductwork system. It is the most advanced and nnovative energy saving system of air-distribution ductwork available worldwide. Ductwork is fabricated using rigid insulation panels in sections up to 4m and can provide the optimum energy saving and environmental solution in comparison with other types of ductwork. The system consists of Phenolic Pre-insulated Duct Panels, fabrication methods, jointing systems and a complete line of accessories to produce a System where air leakage can be reduced to a fraction of that typical of sheet metal ductwork.
The GOOT ® Phenolic Foam Pre-insulated Duct System is the clear leader in new generation pre-insulated ductwork. It offers the triple benefits of cutting energy, cutting carbon and cutting cost whilst already having proved itself in its highly competitive marketplace. Being based on a phenolic resin it has outstanding fire characteristics and extremely low smoke emission when exposed to a flame source.
Advantages compared to traditional insulated Sheet Metal Ductwork:
Do it in one time, no lag insulation required, save the labor and cost.
Save the buiding space
Very light, decrease the total weight of building
Little air leakage by flange joint connectting
Low thermal conductivity, no condensation and energy saving
Closed cell foam, good acoustic insulation
Fire proof, no smoke when exposing to fire
Faced with aluminum foil, it’s water proof and anti-microbial
CFC and HCFC free, environment friendly
Item |
Unit |
Specification |
Panel Structure |
Alu./Foam/Alu. |
|
Standard Panel Size |
mm |
3950*1200*20 |
Alu. Foil Thickness |
mm |
0.06 |
Alu. Foil Thickness |
mm |
0.06 |
Foam Density |
kg/m3 |
60 |
Thermal Conductivity |
w/m.k |
0.021 |
Compressing Strength |
Mpa |
0.25 |
Bending Strength |
Mpa |
1.0 |
Combustibility Property |
Class 0 (BS476 Part 6 & 7) Class A (ASTM E84) |
|
Water Absorption |
% |
1.9 |
Max Smoke Density |
% |
2 |
Dimension Change |
% |
0.3 |
Working Temperature |
°C |
-250- +150 |
Maximum Allowable Wind Velocity |
m/s |
≤12 |
Continuous Running Maximum Temperature |
°C |
≤120 |
