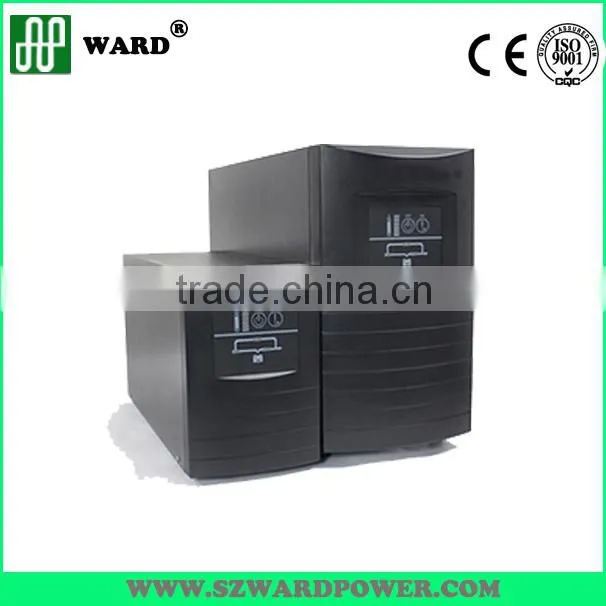

high frequency online UPS T1K-T3K ,Large blue ground LCD digital display
Application:
T/EX series1KVA-3KVA high frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital bureau, traffic, traffic, public security, ATM and so on.
Main Features:
1. Large blue ground LCD digital display shows Detailed Real-Time UPS Status and parameters.
2. Set Output voltage, Frequency parameter and bypass function on the display.
3. Advanced MCU microprocessor control technology, ensure long life reliability.
4. Wide input voltage range, Zero transfer time.
5. Excellent Protection against over voltage, over load, over current, over charge and so on.
6. Input L and N lines reverse wiring detection, Auto start when AC back.
7. DC start function, Input PFC revise function.
8. Humanization bypass output can be adjustable.
9. Smart RS232 communication with monitoring software.
10. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
11. Strong antijamming capability.
12. Available to work with generators.
13. Lightning, surge, short circuit, Network/fax/modem surge protection.
14. Corresponding plug and sockets to different countries.
Technical specifications for high frequency online UPS EX1K-EX3K:
| Online UPS MODEL | T1K/EX1K | T2K/EX2K | T3K/EX3K | T1KL/EX1KL | T2KL/EX2KL | T3KL/EX3KL | |
| CAPACITY | VA/W | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 1000VA/800W | 2000VA/1600W | 3000VA/2400W |
| INPUT | Nominal Voltage | 110/115/120VAC or 220/230/240VAC | |||||
| Voltage Range | 60~138VAC or 115~300VAC | ||||||
| Frequency Range | 50Hz: 46~54Hz; 60Hz: 56~64Hz | ||||||
| Phase | Single phase with Ground | ||||||
| Power Factor | >=0.97 | ||||||
| OUTPUT | Voltage | 110/115/120*(1±2%)VAC or 220/230/240*(1±2%)VAC | |||||
| Frequency |
50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz(1±0.2%) |
||||||
| Wave Form | Pure Sine Wave | ||||||
| Power Factor | 0.7 | ||||||
| Harmonic Distortion | <3% THD (Linear Load), <7% THD (Non-Linear Load) | ||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 200ms | ||||||
| Current Crest Ratio | 3:1 | ||||||
| Connections | IEC320*4 | IEC320*6 | IEC320*3 & Terminal block | IEC320*4 | IEC320*6 | IEC320*3 & Terminal block | |
| Efficiency | To AC Mode | 85% | |||||
| To Battery Mode | 83% | ||||||
| Battery | Type | Sealed free maintenance lead acid battery | |||||
| Nominal DC voltage | Built in batteries 12v7.2ah | 36VDC | 96VDC | 96VDC | |||
| Quantity | 3pcs | 8pcs | 8pcs | Depends on requested back-up time | |||
| Back-up Time (Full load) |
>=7 minutes | >=8 minutes | >=6 minutes | Depends on the capacity of external battery bank | |||
| Recharge Time | 5hours to 90% of capacity full discharge | Depends on the capacity of external battery bank | |||||
| Charge current(MAX) | 1.0A | 1.0A | 1.0A | 7A | 8A | 8A | |
| Charge voltage | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V | 41.1Vdc ± 0.6V | 110Vdc ± 0.4V | |||
| Bypass | Automatic Transfer | On overload and UPS failure | |||||
| Before UPS Power-on | Default "NO" user adjustable to "YES" | ||||||
| Transfer Time | 0ms, less than 4ms from inverter to bypass and vice versa | ||||||
| Indicators | LCD Display | UPS status, I/P & O/P voltage& frequency, Battery voltage, Battery capacity, Loading, Fault code | |||||
| Audible Alarm | Bypass, On battery mode, Battery low, Overload, Fault | ||||||
| Acoustic noise | At 1 meter distance | <45dB | <50dB | <50dB | <45dB | <50dB | <50dB |
| Communications | Intelligent RS232 serial port | Software support Windows family software, Linux, Sun network operating system, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX and MAC | |||||
| SNMP (Optional) | Remote control UPS through SNMP management and Internet | ||||||
| USB (Optional) | Windows family software and Mac OS | ||||||
| Network Surge Protection | RJ45 I/O port available for network or FAX/Telephone line/Modem | ||||||
| Environmental | Operating Temperature | 0~40 °C | |||||
| Operating Humidity | 20~90% ( Non Condensing) | ||||||
| Weight | Net weight (kg) | 14 | 31.5 | 32 | 7 | 13.5 | 14 |
| UPS Dimension | L*W*H (mm) | 400*145*220 | 460*192*348 | 460*192*348 | 400*145*220 | 460*192*348 | 460*192*348 |
1. Respond as Soon as Possible
2. Keep Clients Updated
3. Go the Extra Mile
4. Fix Your Mistakes
5.24 hours online
6. Keep Promises
7. Don’t Confuse Clients with Jargon
8. Be Patient
9. Know Everything we Need to Know
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.
Q2. How's the delivery time ?
A. Usually it will take about 15~20 days for production
Q3. Tell me the standard package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q4. What kind of material of transformer?
A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.
Q5. Would you accept our logo ?
A.If you have reached the minimum quantity, absolutely no problem to do OEM.
Q6. We want to know your monthly capacity.
A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.
Q7. Where is your market?
A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.
Q8. Does the inverter connect with solar system ?
A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..
Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package
Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
