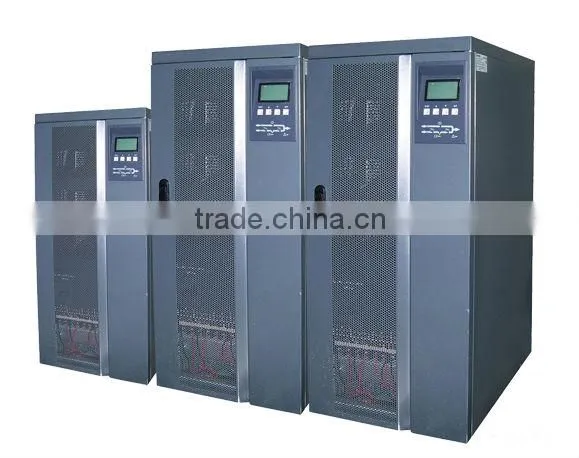

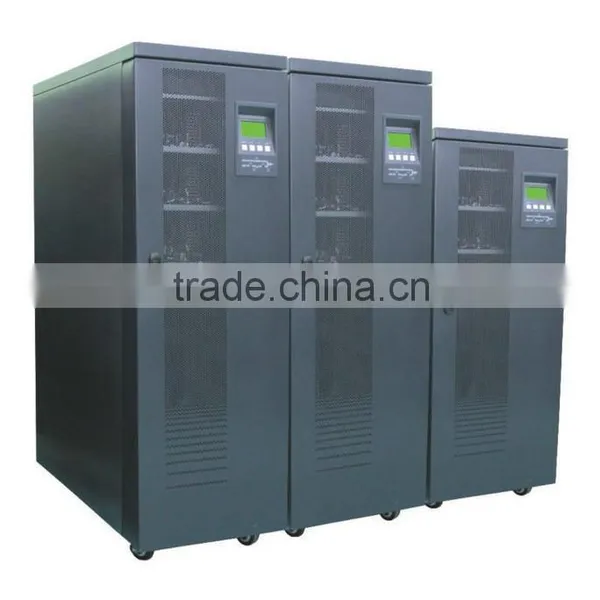

made in china High Frequency online ups power supply 20K--80K
Introduction
1. 20KVA to 80KVA, 16KW to 64KW ,three phase 4line and ground,
2. 0.8 output power factor and high efficietnt DSP chip
3. IP21 Protection level.
4. Twin-channel line input, N+X parallel redundancy
Application:
EX33 high frequency online UPS is applicable to small and mediumsized data centers, network management center, computer rooms for enterprises, or able to provide solutions to conditions like voltage instantaneous drop-off or damping concussion, high-voltage pulse , voltage distortion ,and frequency fluctuation.
Each single phase of the EX33 series UPS is converted to DC through an individual PFC circuit and transferred to AC through inverter for output .At the same time , a separate controller is provided for the real time control and date collection of PFC circuit so that the whole system can operate more harmonious or feedback the system state to the customer more promptly.In addition, the controlling of battery charging can extend the battery’s channel line input improves the system’s reliability.
Furthermore, the series product is enhanced with excellent performance in protection level , which ensure the stability of UPS working in industrial environment with large dusts.
Main Features:
*Excellent performance in industrial environment protection
*Intelligent management of battery charging and discharging
*Frontal-board LCD display panel operation and maintenance
*Twin-channel line input
*Remote monitoring
*High-efficient DSP chip
*Outstanding electric property
*Flexible battery arrangement

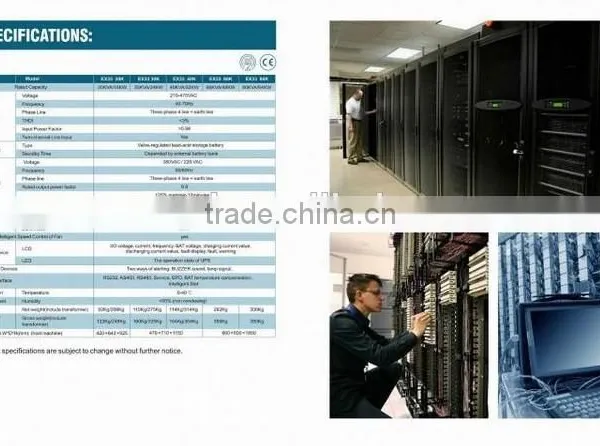

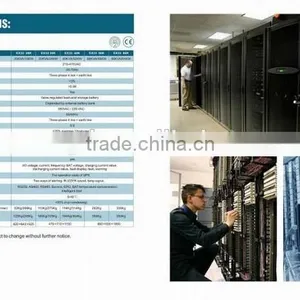

Specification:
Online UPS Model |
EX33 20K |
EX33 30K |
EX33 40K |
EX33 60K |
EX33 80K |
||
Rated Capacity |
20KVA/16KW |
30KVA/24KW |
40KVA/32KW |
60KVA/48KW |
80KVA/64KW |
||
Input |
Voltage |
210-475VAC |
|||||
Frequency |
40-70Hz |
||||||
Phase Line |
Three-phase 4 line + earth line |
||||||
THDI |
<3% |
||||||
Input Power Factor |
>0.99 |
||||||
Twin-channel Line Input |
Yes |
||||||
Battery |
Type |
Valve-regulated lead-acid storage battery |
|||||
Standby Time |
Depended by external battery bank |
||||||
Output |
Voltage |
380VAC / 220 VAC |
|||||
Frequency |
50/60Hz |
||||||
Phase line |
Three-phase 4 line + earth line |
||||||
Rated output power factor |
0.8 |
||||||
Overload Capacity |
125% maintain 10minutes |
||||||
150% maintain 1minutes |
|||||||
Efficiency |
Line Input Mode |
93% |
94% |
||||
BAT Mode |
93% |
94% |
|||||
ECO Mode |
98% |
||||||
Intelligent Speed Control of Fan |
yes |
||||||
Display Device |
LCD |
I/O voltage, current, frequency, BAT voltage, charging current value, discharging current value, fault display, fault, warning |
|||||
LED |
The operation state of UPS |
||||||
Warning Devices |
Two ways of alerting: BUZZER sound, lamp signal, |
||||||
Communication Interface |
RS232, AS400, RS485, Service, EPO, BAT temperature compensation, Intelligent Slot |
||||||
Operation |
Temperature |
0-40 |
|||||
Environment |
Humidity |
<95% (non condesing) |
|||||
Weight |
Net weight(include transformer) |
82Kg/208Kg |
110Kg/275Kg |
114Kg/314Kg |
282Kg |
306Kg |
|
Gross weight(include transformer) |
122Kg/248Kg |
160Kg/325Kg |
164Kg/364Kg |
356Kg |
380Kg |
||
Size L*W*H(mm) |
643×420×925 |
710×470×1150 |
800×600×1850 |
||||
1. Respond as Soon as Possible
2. Keep Clients Updated
3. Go the Extra Mile
4. Fix Your Mistakes
5.24 hours online
6. Keep Promises
7. Don’t Confuse Clients with Jargon
8. Be Patient
9. Know Everything we Need to Know
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping and Western Union.
Q2. How's the delivery time ?
A. Usually it will take about 15~20 days for production
Q3. Tell me the standard package?
A. For the small capacity, it uses carton, but for big capacity, we should use strong wooden case for protection.
Q4. What kind of material of transformer?
A.We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have little difference. Copper is better and also price higher.
Q5. Would you accept our logo ?
A.If you have reached the minimum quantity, absolutely no problem to do OEM.
Q6. We want to know your monthly capacity.
A. It varies with product models. For example, monthly capacity can reach near 20000pcs for small capacity and big capacity near 3000pcs.
Q7. Where is your market?
A. Our products are popular in Nigeria, Egypt, Russia, indonesia, Philippines, Italy, America, Pakistan and so on. Hope you can join us and make mutural benifits through our cooperation.
Q8. Does the inverter connect with solar system ?
A. Yes. The unique feature combines inverter, charger and AC auto-transfer switch into one complete system, making the inverter not only connects with solar system, also can be used in office equipment, household items, power tools and etc..

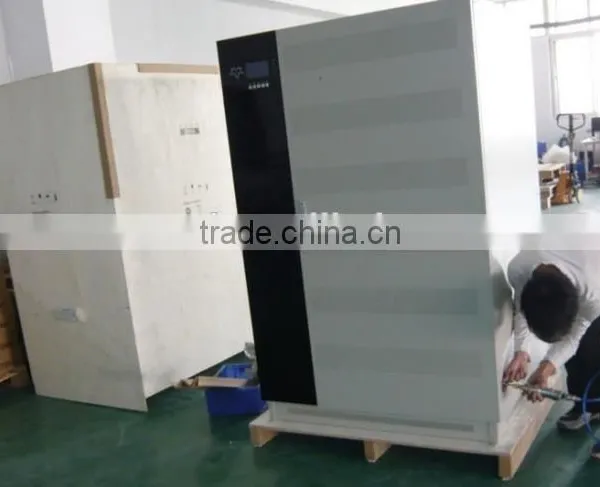

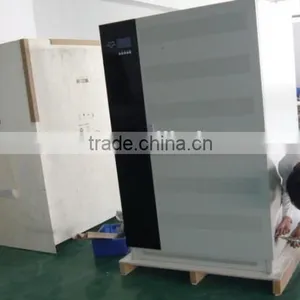

Packaging Detail: Standard Export carton or wooden package. The Safest Transportation Package
Delivery Detail: 15~20 days for Routine machine, once received deposit, 20~25days for Specified requests, once received deposit. It will be varied according to actual order quantity.
