Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 50kw Brushless Alternator

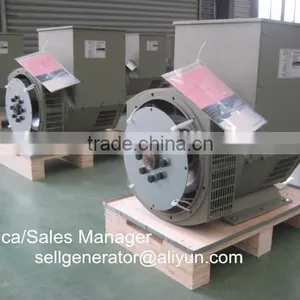

50kw Brushless Alternator

Name: 50kw Brushless Alternator
Brand: I-MAX
SKU: 118140779

US$ 890 - 980 MOQ: 20 Sets

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

I-MAX

Model Number:

6.8KW-1000KW

Contact Supplier Request Quote Chat Now

Fuzhou I-Max Enterprise Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name I-MAX

Model Number 6.8KW-1000KW

Output Type AC Three Phase

Speed 1500rpm / 1800rpm

Frequency 50Hz / 60Hz

Rated Power 50kw

Rated Voltage 380V / 400V / 440V (optional)

Rated Current as per voltage & power

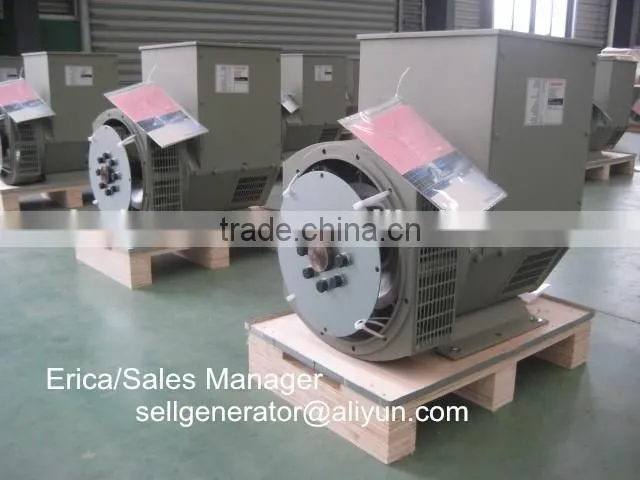

50kw brushless alternator

Product Description

50kw brushless alternator

* Overload protection for safe running

* Top quality & Easy maintenance

* Stamford technology

* Single bearing or Double bearing

* Easy to be connected with power networks or other generator sets

* 4 POLE, Brushless, H class insulation, IP23, A.V.R. 100% Copper

STAMFORD TECHNOLOGY--

50kw brushless alternator

* IMAX Series AC Brushless alternators are confomity to GB755, IECBS5000, VDE0530,NEMA MG1-22 &

IEC34, CSA C 22.2-100standards

* The 2/3 pitch windings avoid excessive neutral currents, ensure lw waveform distortion.

* The alternators with SX440 or SX460 AVR, low frequency protection & exterior voltage adjustments.

Model	Alternator POWER				Dims
Model	1500rpm / 50Hz, 400V		1800rpm /60Hz, 440V		Dims
	KW	KVA	KW	KVA	cm
iM164A	6.5	8.1	8.2	10.3	585662
iM164B	8.8	11	11	13.8	585662
iM164C	10.8	13.5	13.5	16.9	585662
iM164D	12.8	16	16	20	585662
iM184E	18	22.5	23	28.8	725662
iM184F	22	27.5	27.5	34.4	725662
iM184G	25	31.3	30	37.5	725662
iM184H	30	37.5	37.5	46.9	725662
iM184J	32	40	40	50	725662
iM224C	34	42.5	42	52.5	845890
iM224D	40	50	50	62.5	845890
iM224E	48	60	56	70	935890
iM224F	58	72.5	70	87.5	935890
iM224G	68	85	78	97.5	975890
iM274C	80	100	94	117.5	946997
iM274D	91	113.8	110	137.5	946997
iM274E	112	140	134	167.5	946997
iM274F	128	160	152	190	1066997
iM274G	144	180	174.8	218.5	1116997
iM274H	160	200	196	245	1166997
iM274J	184	230	224.8	281	1166997
iM274K	200	250	239.2	299	1166997
iM314C/444C	200	250	235	294	13379106
iM314D/444D	236	295	280	350	13379106
iM314E/444E	260	325	315	394	13379106
iM314F/444F	304	380	365	456.3	13379106
iM354C/544C	360	450	440	550	14987116
iM354D/544D	400	500	475	594	14987116
iM354E/544E	480	600	570	712.5	14987116
iM354F/544F	536	670	620	775	14987116
iM404B/634B	600	750	640	800	16998135
iM404C/634C	640	800	720	900	16998135
iM404D/634D	720	900	800	1000	16998135
iM404E/634E	800	1000	900	1125	16998135
iM404F/634F	900	1125	1000	1250	16998135
iM404G/634G	1000	1250	1100	1375	16998135

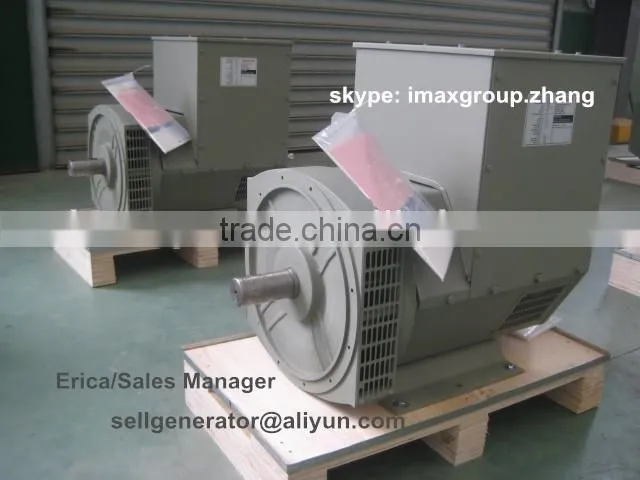

50kw brushless alternator
--double bearing

50kw brushless alternator

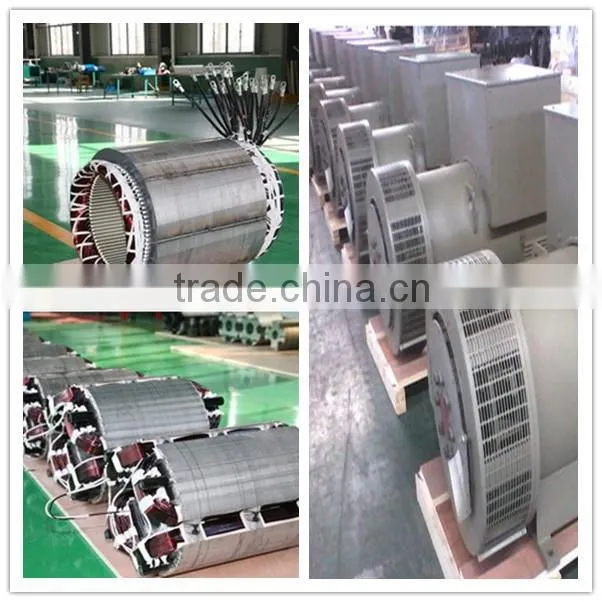

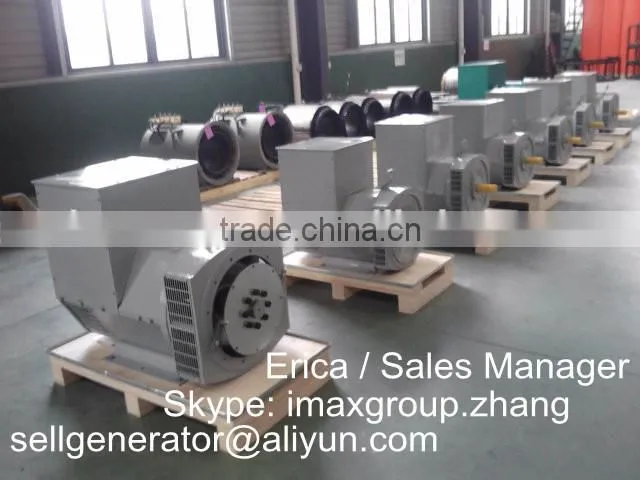

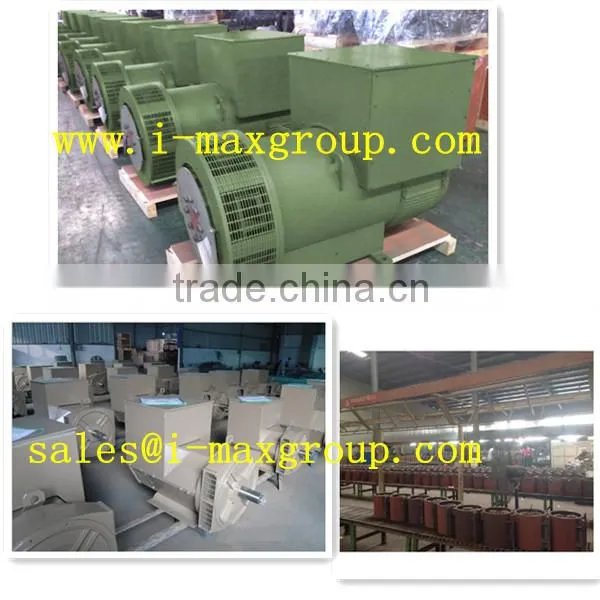

--Production views

100% COPPER STAMFORD TECHNOLOGY ALTERNATORS

50kw brushless alternator

Our Services

50kw Alternators Warrantee: 12 months. During the warranty, our factory would be responsible for problems caused by our production or raw material, we will offer technical support or sending spare parts for replacement if need except the spare parts of alternators which required periodic maintenance , and the damages caused by incorrect man-made operation will fall outside the clause. After expiration, our company provides cost maintenance. Further terms could be negotiable!

ATTENTION!!! WHY CHOOSE FUZHOU I-MAX ALTERNATORS?

If you are interested in the above products or would like to have more information, please visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
