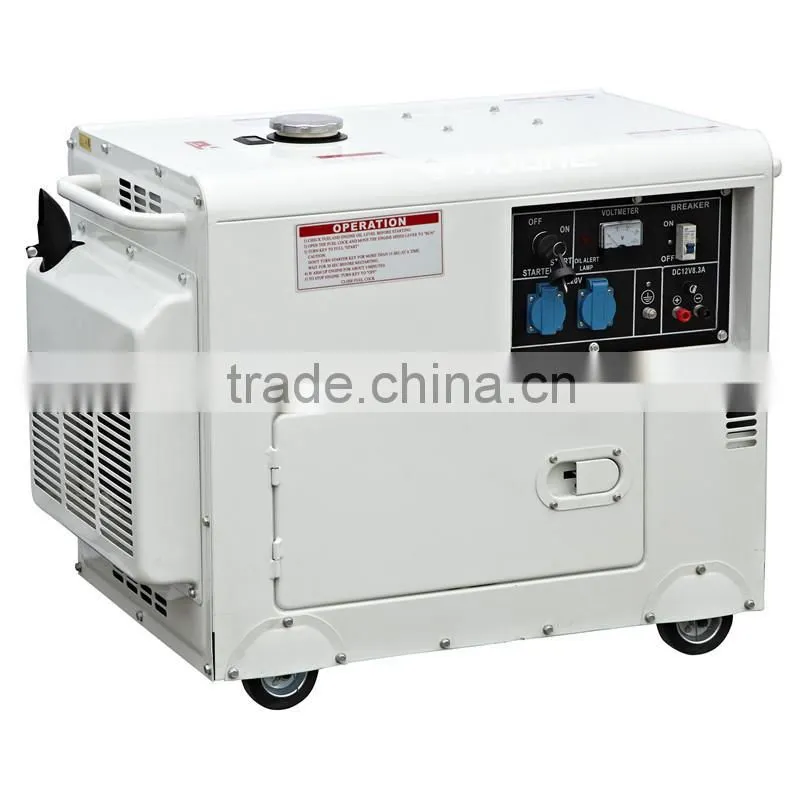

Fuzhou I-MAX portable diesel generator
General Features:
* Power for emergency and home standby use
* Overload protection for safe running
* Compact structure & light weight
* Large fuel tank for a long time of continuous running
* Emergency low oil warning & circuit breaker
* Sound-absorbing panels keep lower noise
* Wheels for easy move
* Full frame protection which looks more luxurious
* Low fuel Comsuption
* Digital meter front panel, ATS (Automatic transfer switch) optional
* Top quality & easy maintenance
Fuzhou I-MAX portable diesel generator
--Specification
| Item No. | iM5000DSE | iM6000DSE | |
| Generator | Model | Air cooled silent type diesel generator set | |
| Voltage (V) | 220(230)/110/220(120/240),220/380/400V | ||
| Frequency (Hz) | 50HZ/60Hz | ||
| Max. AC output (kVA) | 6.5kva | 6.5kva | |
| Cont. AC output (kVA) | 5kva | 5kva | |
| Engine | Engine Model | iM186FA | iM186FA |
| Engine Type | Air cooled, 4-stroke, single cylinder,diesel engine | ||
| Displacement (cm3) | 418 | 418 | |
| Engine Speed (rpm) | 3000rpm | 3000rpm | |
| Engine Starting System | Electric starting | Electric starting | |
| Fuel | Diesel | ||
| Fuel Tank Capacity (L) | 15L | 15L | |
| Oil capacity (L ) | 1.65 L | 1.65 L | |
| Unit | Weight | 175kgs | 175kgs |
| Dimension | 920 x 520 x 740 mm | 920 x 520 x 740 mm | |
| 72pcs/20’FCL 144pcs/40'FCL | 72pcs/20’FCL 144pcs/40’FCL | ||
Fuzhou I-MAX portable diesel generator
Fuzhou I-MAX portable diesel generator
Fuzhou I-MAX portable diesel generator

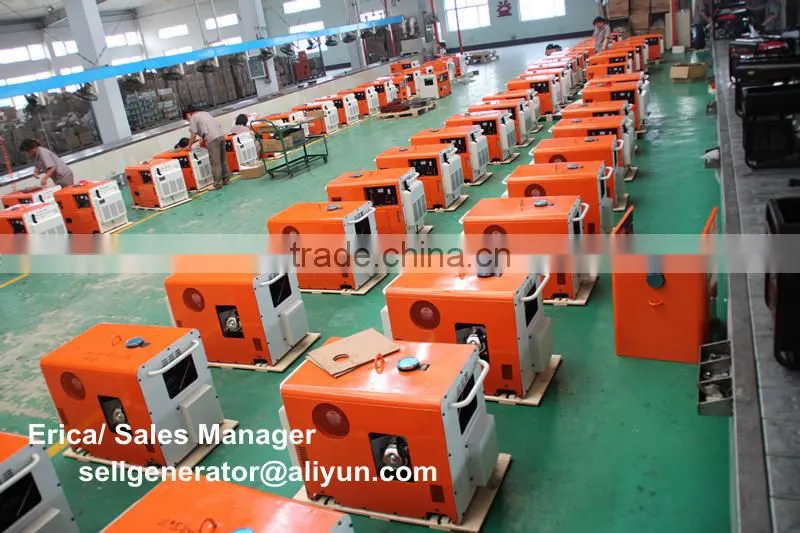

--Production Views
Fuzhou I-MAX portable diesel generator
Portable diesel generator warrantee: 1year. During the warranty, our factory would be responsible for problems caused by our production or raw material, we will offer technical support or sending spare parts for replacement if need except the spare parts which required periodic maintenance, the damages caused by incorrect man-made operation will fall outside the clauses of warranty. After expiration, our company provides cost maintenance. Further terms could be negotiable!
ATTENTION!! Why Choose FUZHOU 'I-MAX' GENERATORS?
If you are interested in the above products or would like to have more information, please visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
