Barb Wire and Razor Wire
Material: |
Galvanized steel wire, PVC coated iron wire |
Application: |
Protecting of military, industry, agriculture, animal husbandry, dwelling house, plantation or fencing. |
Product Features: |
Anti-aging, Corrosion resistance, Protective Ability |
Corrosion form: |
PVC coated, plastic coated, electric galvanized and hot dipped galvanized |
Weaving types: |
Single twist barbed wire and double twist barbed wire, Reverse twisted and continuous twisted. |

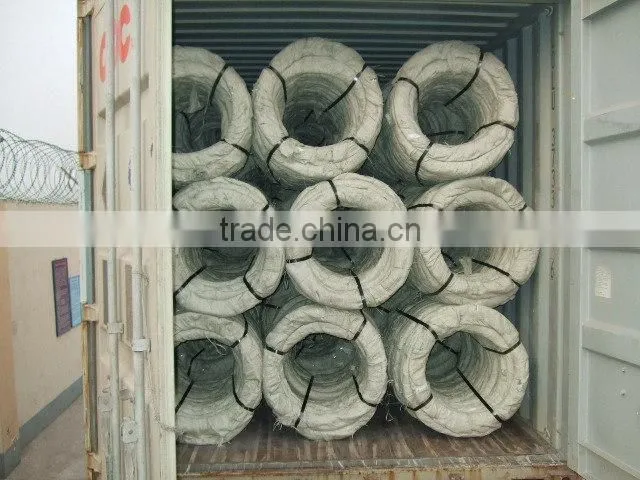

Package: |
In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth. |

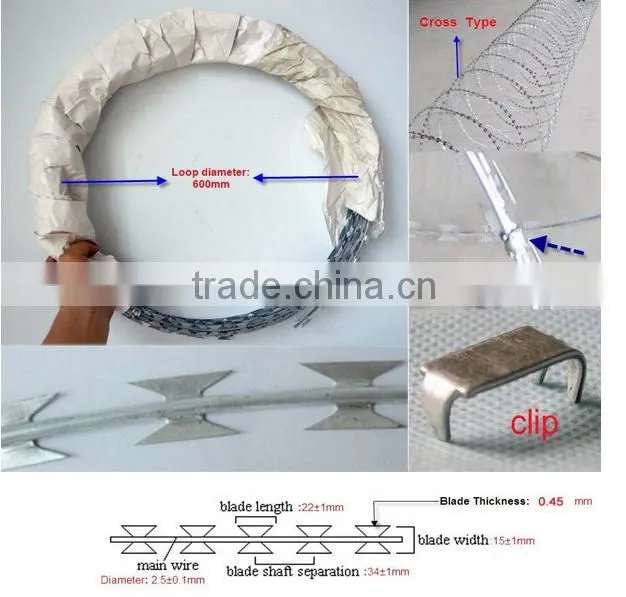

Specification of Barb Wire and Razor Wire
Blade Specification |
Blade Thickness |
Core Wire Dia. |
Blade Length |
Blade Width |
Blade Space |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Ex. Dia |
No. of Turns |
Standard Covering Length |
Production Model |
Remarks |
450mm |
33 |
8m |
CBT-65 |
Single coil |
500mm |
41 |
10m |
CBT-65 |
Single coil |
700mm |
41 |
10m |
CBT-65 |
Single coil |
960mm |
53 |
13m |
CBT-65 |
Single coil |

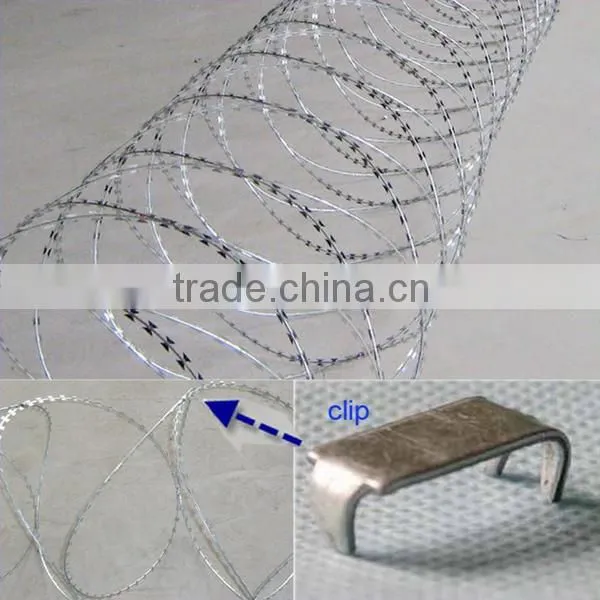

500mm |
102 |
16m |
BTO-12.18.22 |
Cross type |
600mm |
86 |
14m |
BTO-12.18.22 |
Cross type |
700mm |
72 |
12m |
BTO-12.18.22 |
Cross type |
800mm |
64 |
10m |
BTO-12.18.22 |
Cross type |
960mm |
52 |
9m |
BTO-12.18.22 |
Cross type |

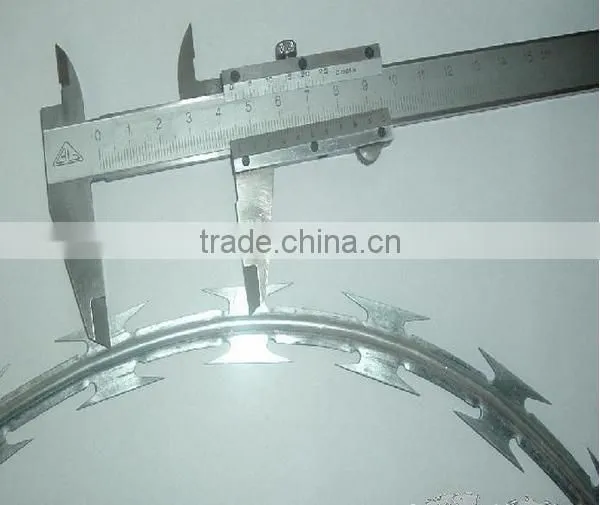

Quality control
Features of Barb Wire and Razor Wire
---Good corrosion resistance, antiaging
---High strength, good steel natural capacity
---Nice appearance
---Easy and quick installation

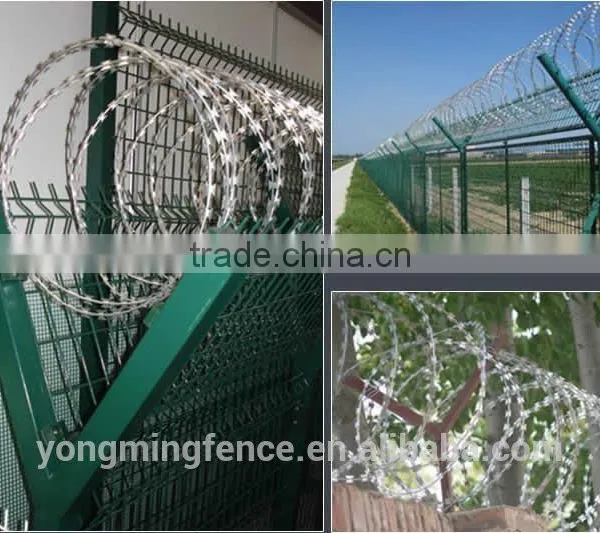

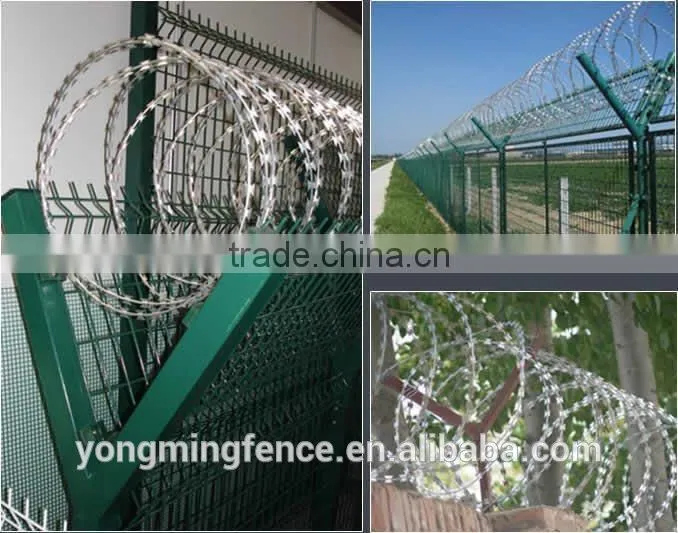

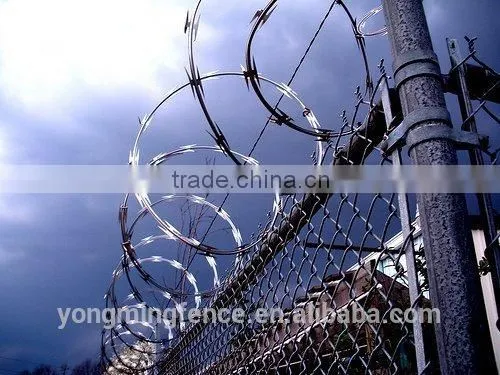

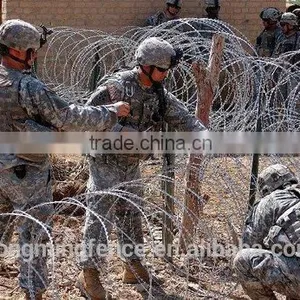

Application of Barb Wire and Razor Wire

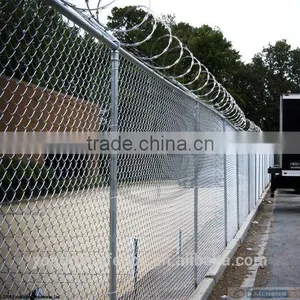

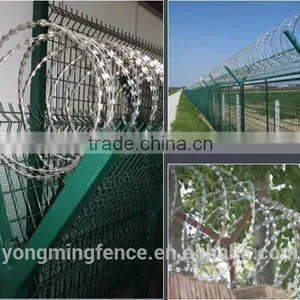

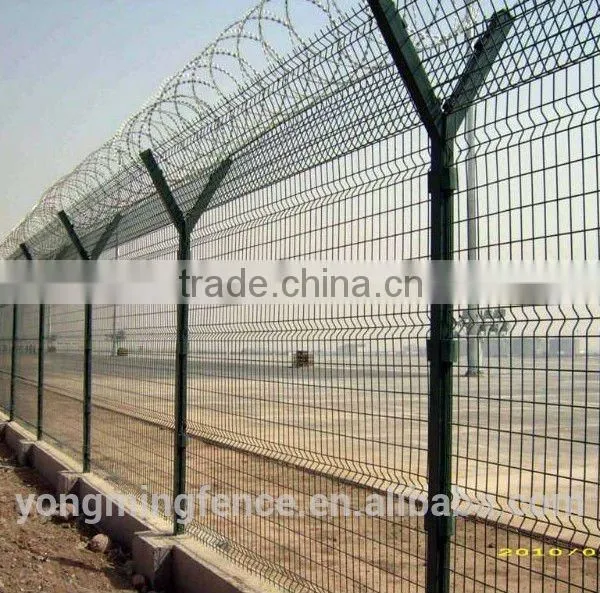

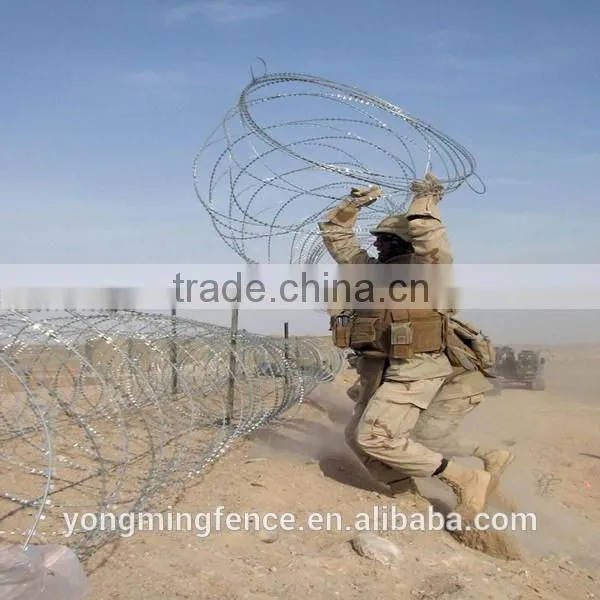

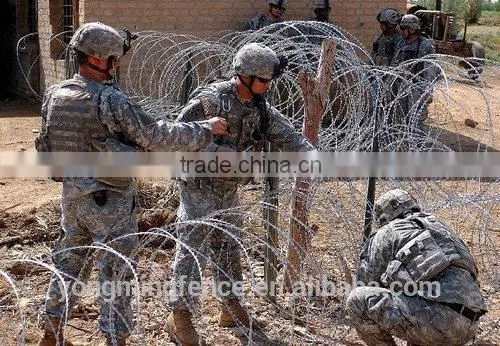

Used in border security

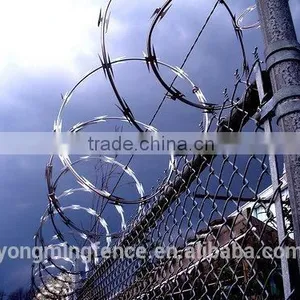

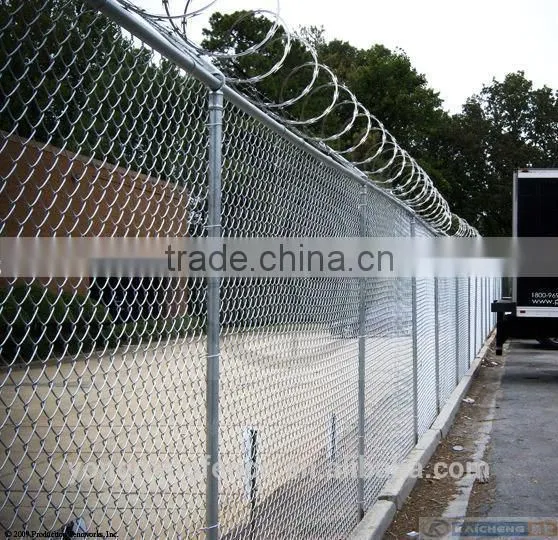

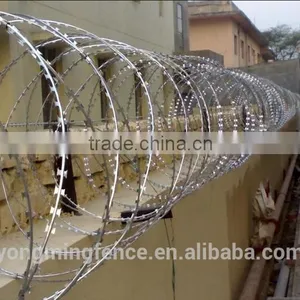

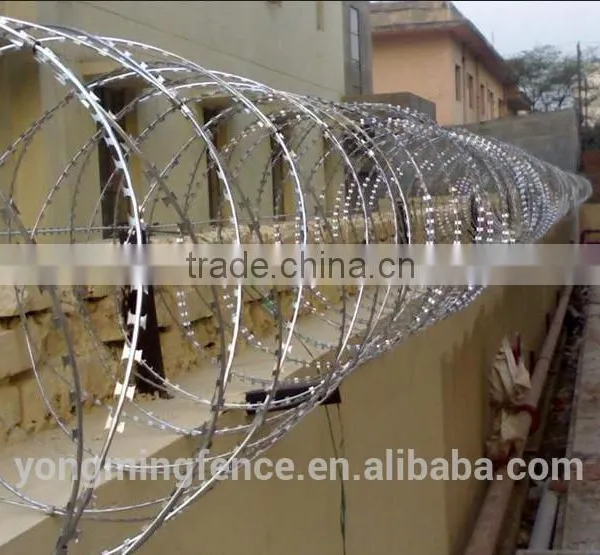

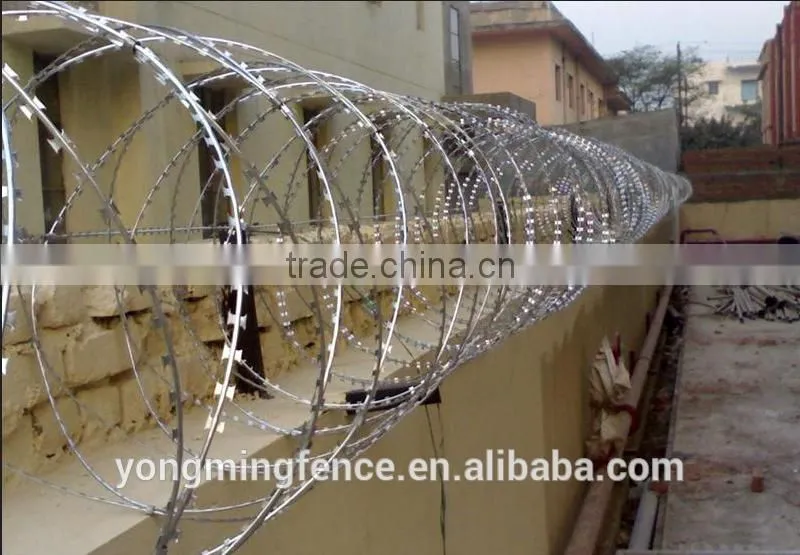

Used in residential security
Anping County XiangMing Wire Mesh Products Co.,ltd
---We put “ habit of targeted country” at first
Business type: |
Manufacturer / Exporter
|
||
Established time |
1990
|
Occupation Area(M²) : |
18000m2 |
R&D staff |
10 |
Number of employees |
200 |
Certification |
SGS,ISO9001,BV,CE & TUV etc |
||
Main product |
Fence: Welded wire mesh fence, 358 fence, palisade fence, chain link fence, temporary fence, crowd control fence etc. Farm products: Cattle/sheep panels & gates, farm gate, barbed wire, razor wire, field fence, Y post etc. |
||
Our principle |
Engaged, sincerely |
||
Certification
Our team

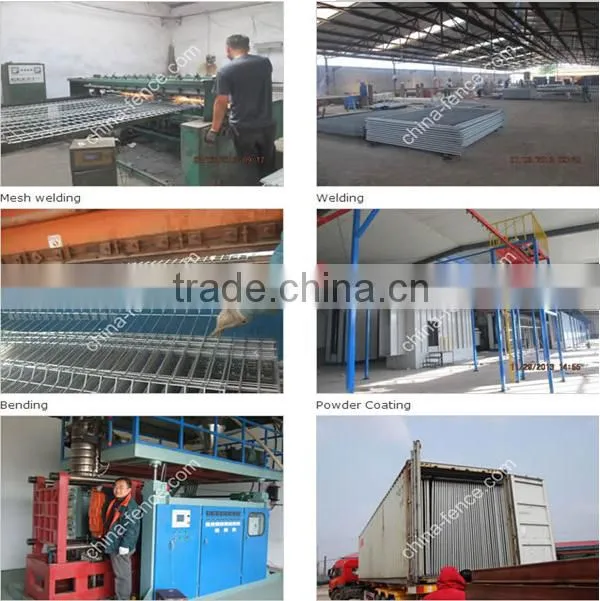

Are you a factory?
Yes.This is our production flow.
Can you make sample?
Of course.We can provide small sample for free.
Welcome to visit our factory and inquiry!!!

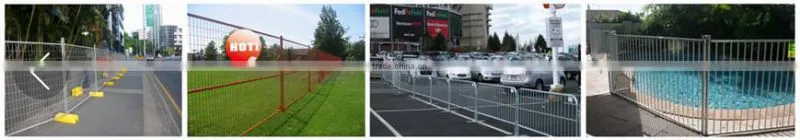

Temporary fence AU Temporary fence USA Crowd control barrier Swimming pool fence
Double wire fence Palisade fence Triangle bending fence 358 fence Chain link fence
Cattle panel Gabion fence Euro fence

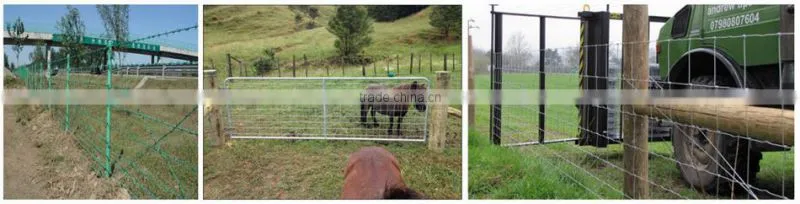

Barbed wire Farm fence gate Farm field fence
