Help CenterWith 8, 16, 24 Prism in 1 Sharpy Beam 7r Moving Motorized Pan Tilt Head
Related Products
-
Sharpy Beam 7r 230w Big Dipper Light Moving Head With 8,16, 24 Facet PrismNegotiableMOQ: 2 Units -
Hot New 300w 15r Beam China Pioneer dj EquipmentUS$ 849.99 - 899.99MOQ: 2 Pieces
-
DAGE Superb Strong 15r Beam Outdoor Lighting FixtureUS$ 849.99 - 899.99MOQ: 2 Pieces
-
2014 High Brightness Beam Moving Lighting DecorationUS$ 849.99 - 899.99MOQ: 2 Pieces
-
DAGE 16 Beam Moving Head DMX Control Auto LightingUS$ 735 - 750MOQ: 2 Pieces
Specifications
beam 7r moving motorized pan tilt head8,16, 24 prism in 1
beam angle:0-7degree
20% stronger parallel beam effects than comm
with 8, 16, 24 prism in 1 sharpy beam 7r moving motorized pan tilt head
1. Quality: 8 years experence focusing on this item, original philips lamp, 3-phase motors for X/Y moment, aluminum-alloy structure.
2. Effect: Beam angle:0-7degree, strong&sharp parallel beam light up more than 180m outdoor, 20% brighter than normal. Amazing 8, 16, 24 prism in1. With the help of 14 dichroic color+open, 14 fixed gobo+open can
generate perfect and fantastic lighting effects.
3. Warranty: 12 months warranty, if any problems(except man-made damage) during warranty time, spare parts will bedelivery for free including the shipping fees.

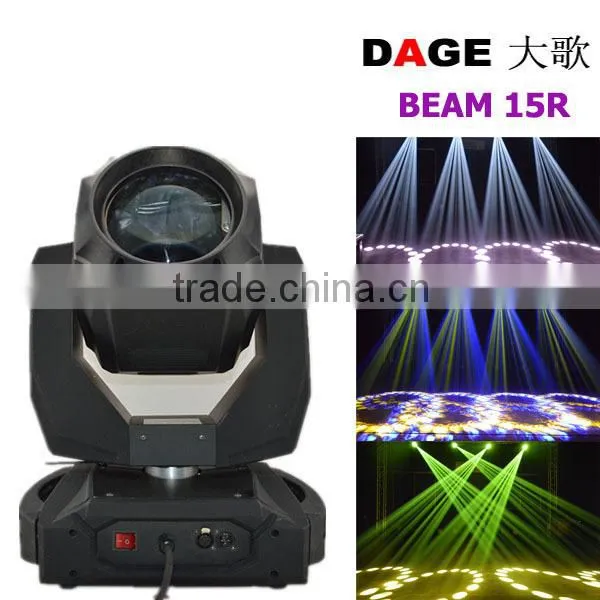

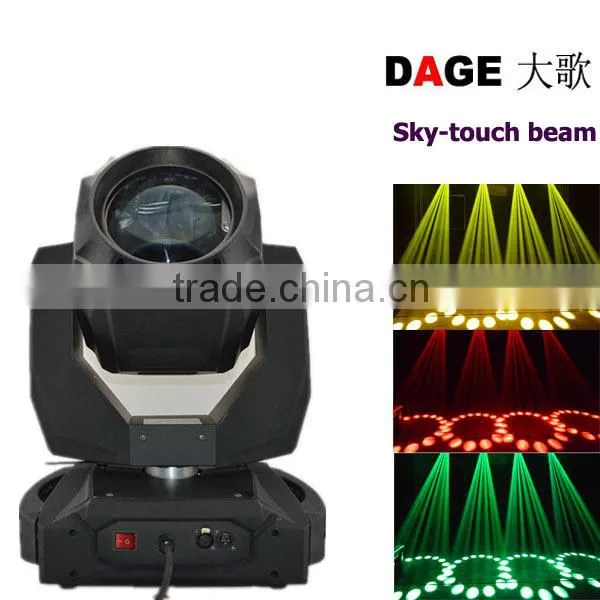

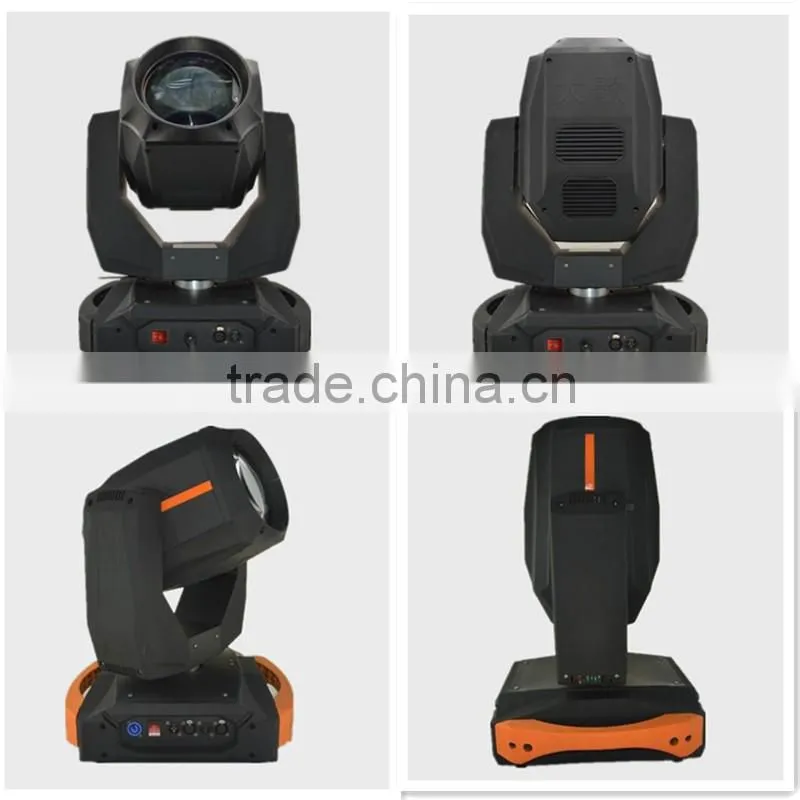

Product's Images:
Item's Specification:
Lamp Source
Philips 230W 7R
Power Supplies
AC110-240V, 50-60HZ
power consumption:355w
Electronic Ballast
Optical System
High precision& multi-agglutination optical glass lens
Color wheel (1 color wheel)
14 dichroic color+open
Variable speed and bi-directional rainbow effect
Gobo System(1 gobo wheel)
14 fixed gobo+open
Gobo shaking& scrolling at variable speeds available
Effect Configuration
Beam angle: 0-7°
The unique optical path structure makes the beam much stronger and brighter.
Frost:100% frost washing effect
Prism: 8 and16 prisms, which overlapping can create amazing 24 prism. bi-direction rotation in high-slow speed
Focusing: electronic linear focus, fine focus
Dimmer: 0-100% linear dimmer, strobe speed: 1-14 times/sec
Control
18 DMX CH
Control mode:DMX512, master-slave, auto
Manual display: 1.6 million pixel LCD screen, Chinese and English can
switch easily, 180°rotation
DMX signal connection: 3 pin and 5 pin XLR input/output
Movement&Structure
Pan 540°(8/16bit ), Tilt 270°(8/16bit )
smooth and fluent movement,With electro-optic reset system
Aluminum structure + ABS fire-proof plastic case, 2 handles
Pan and tilt lock for the convenience of transportation and maintenance
Protection&function
PFC prower protection, voltage fluctuation (± 10V) is available.
10s after the device was turn off , the power will be reduced 50w automatically
for extend the lamp’s life.
Fans and overheat cooling protection
With positioning and automatic error correction function
Packing&Shipping:
Flight case:(2 in 1):90x60x86cm Weight: 93KG
(1 in 1):59x53x85cm Weight: 53.5KG
Carton packing:(1 in1): 47x50x64cm Weight: 22.5kg
1. Sample: MOQ: 2 units deliverly time: 1-3 working days
2.Quality assurance:
All the raw materials before installing must be inspected strictly by our welll-qualitied QC.
The QC are required to take good care of every process,ensure every part in good quality before
turnning to next step.
Double check every part before leaving our factory, promise everything is ok to our customers.

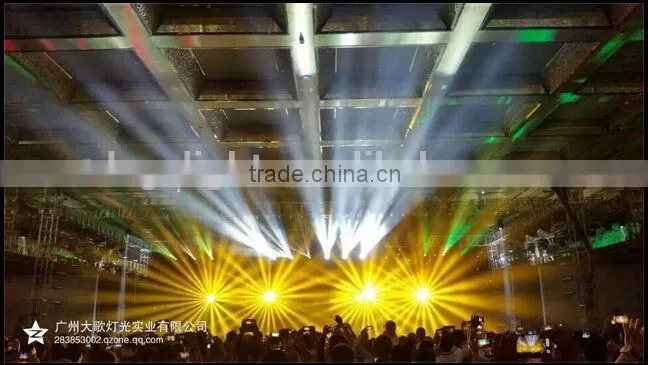

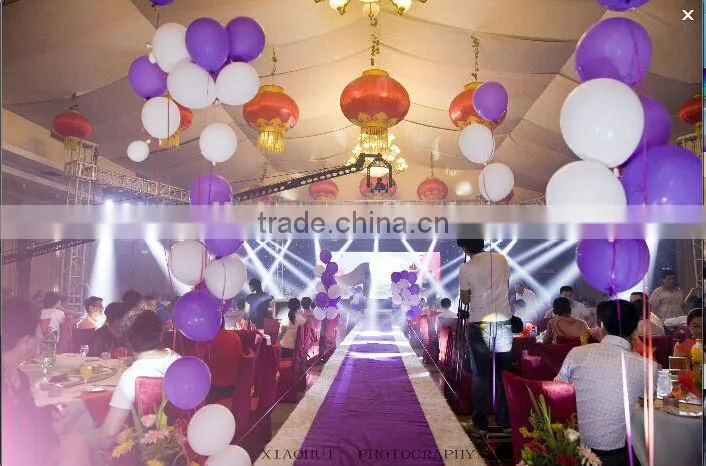

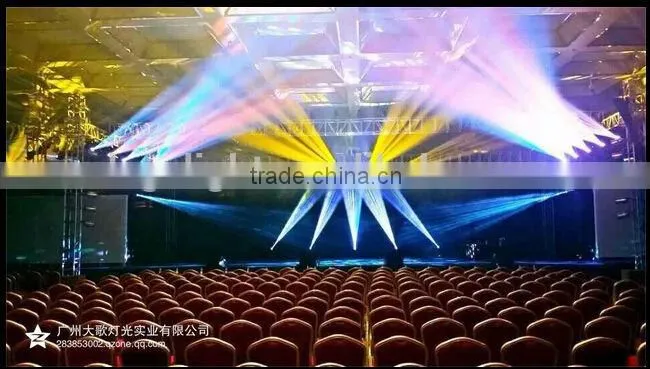

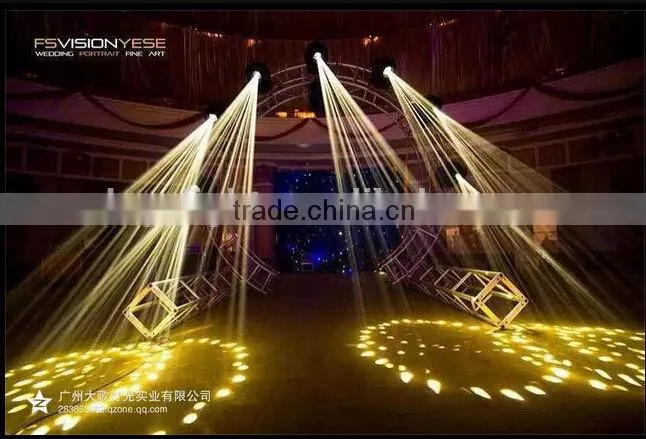

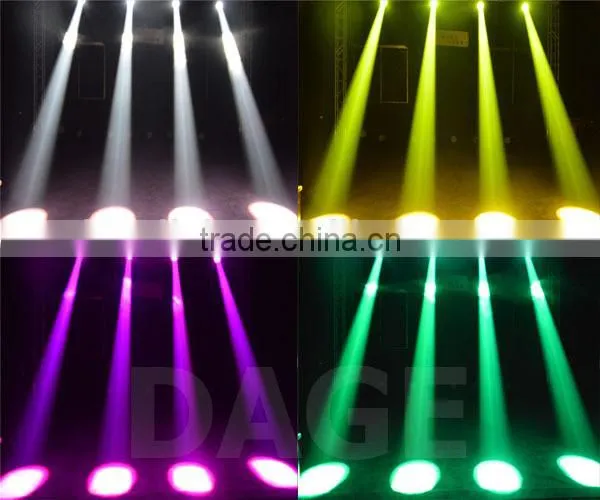

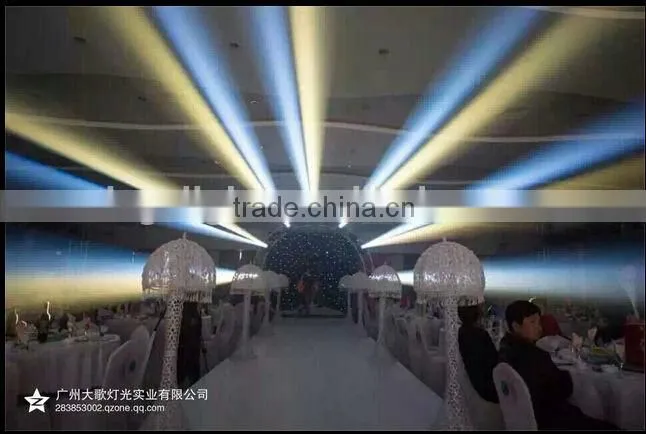

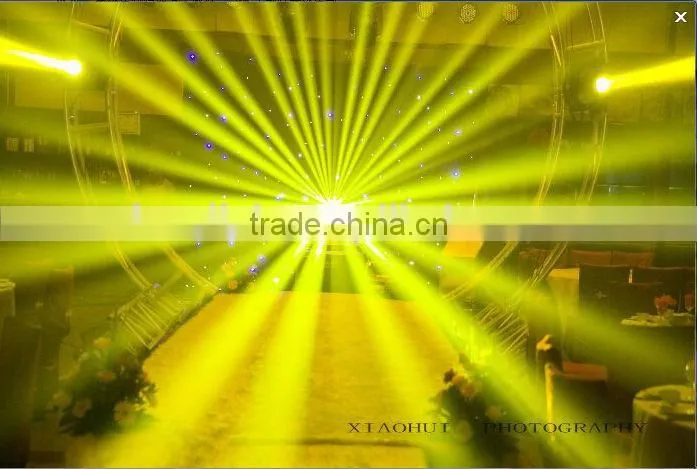

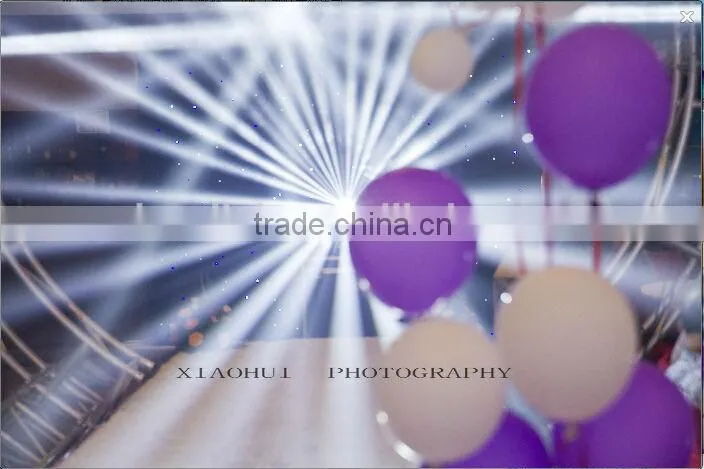

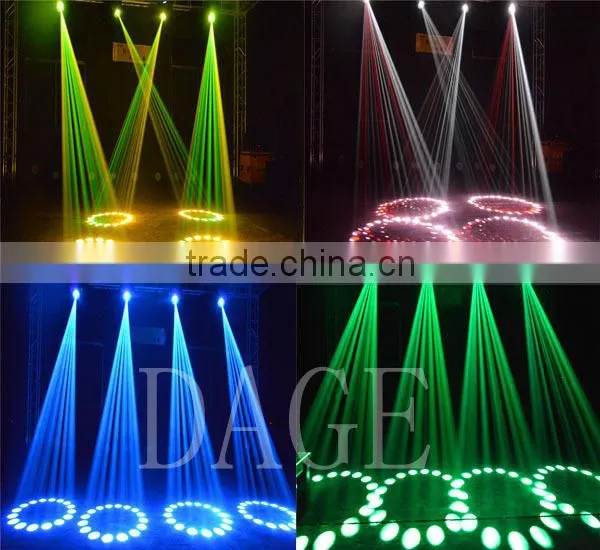

Effect pics:

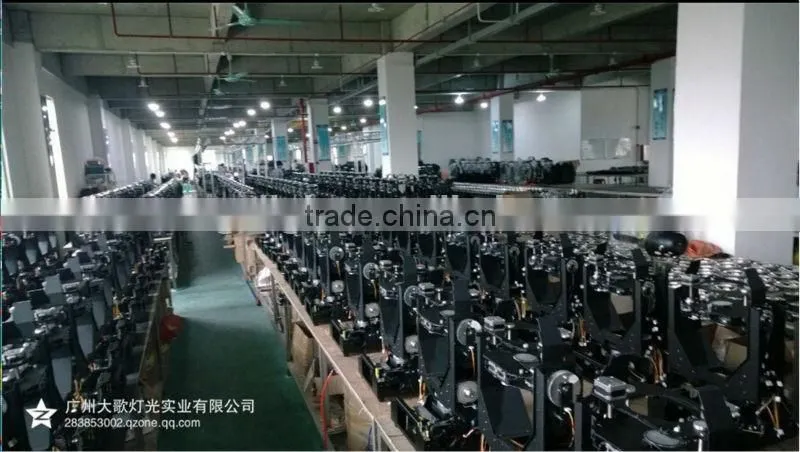

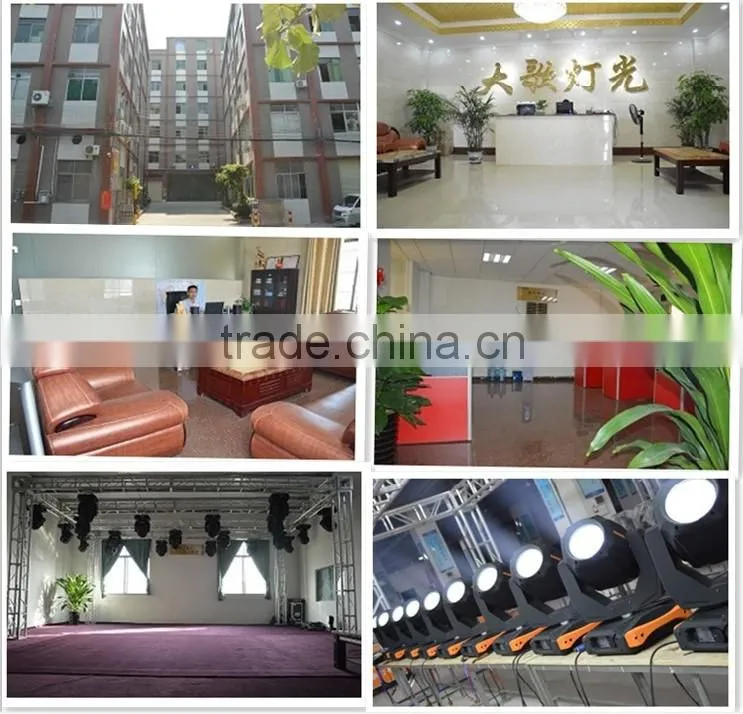

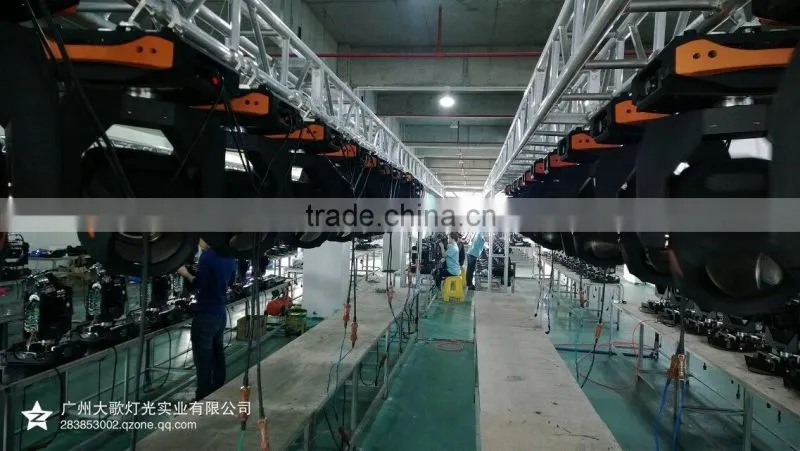

Company info.:
DAGE Status:
Pioneer manufacturer of the latest and most popular beam spot wash 3in1 and Sky-touch beam based in China.
