Specifications
Double wire mesh fence1.material:low carbon steel wire
2.wire diameter:6/5/6mm;8/6/8mm
sh size:50*100mm

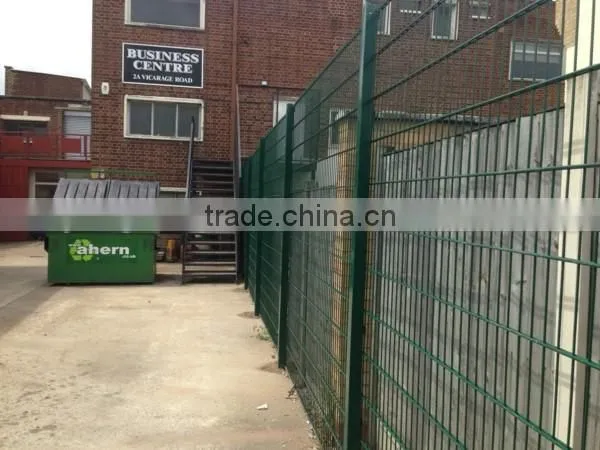

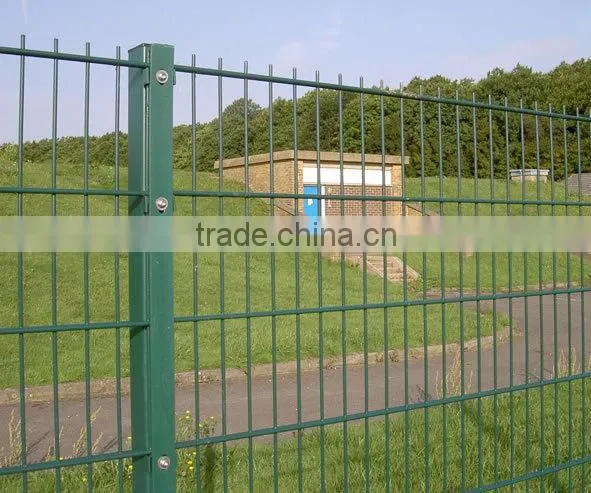

High quality double wire mesh fence,strong weld wire mesh fence panel,ISO,CE quality standard,for Germany,Italy
Xiangming double wire mesh fence used in stainless steel or low carbon steel wire as material.
Double wire mesh fence introduction:
material:iron wire,galvanized wire(Q235),stainless steel wire
color:green RAL6005 is commen
finished:electro galvanized+PVC coated,hot-dipped galvanized+PVC coated
fence size:
1>wire diameter:8mm+6mm+8mm
2>open:50mm*100mm,50*mm*200mm
3>heigth of panel:from 630mm-2430mm
4>width of panel:2500mm
5>post style:50*50mm;60*60mm;80*60mm
Double wire mesh fence feature
strong and easily installation
reliable secucityand
versatile bottom potion(flanged or pre-buried)
attractive appearance
Double wire mesh fencing packing
In order to protect PVC coated double wire mesh fence during the transit, the specification can be listed as follows:
1.Rubber mat at the bottom of the pallet to avoid the pallet destroyed the panel
2.4 metal corners to keep the pallet more strong and wood plate on the panel pallet
3.Fence post: woven bags at the bottom of the pallet
4.Other accessories: in carton box
Double wire mesh fence specification
Xianfming Double Wire Fence specifications |
|
|||||
|
Panel Size Height*Width (mm) |
Mesh Size (mm) |
Wire Diameter |
Post Height |
|||
Wire Dia |
Wire Dia |
Wire Dia |
||||
630X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1100 |
|
830X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1300 |
|
1030X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1500 |
|
1230X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1700 |
|
1430X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
1900 |
|
1630X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2100 |
|
1830X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2400 |
|
2030X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2600 |
|
2230X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
2800 |
|
2430X2500 |
50X200 |
8X2 + 6 |
6X2 + 5 |
6X2 + 4 |
3000 |
|
Double wire mesh fence application
It is used for fencing most industrial sites, sporting fields,protection of schools,Corporate or college campuses, housing projects, healthcare or research facilities ;Airports, parking facilities, commercial and industrial properties; Pools, amusement parks, tennis courts, public parks and playgrounds, etc.
