3wz-2900B Triplex Plunger Pump

3wz-2900B Triplex Plunger Pump thumbnail-1
3wz-2900B Triplex Plunger Pump photo-1
US$ 50 - 150 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Bounche
Model Number:
3wz-2900B
Contact Supplier Request Quote Chat Now
Taizhou Bounche Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Bounche
Model Number 3wz-2900B
Theory Reciprocating Pump
Structure Piston Pump
Usage Water
Power Other, gasoline
Standard or Nonstandard Standard
Fuel Gasoline
Pressure High Pressure
Application Other, cleaning

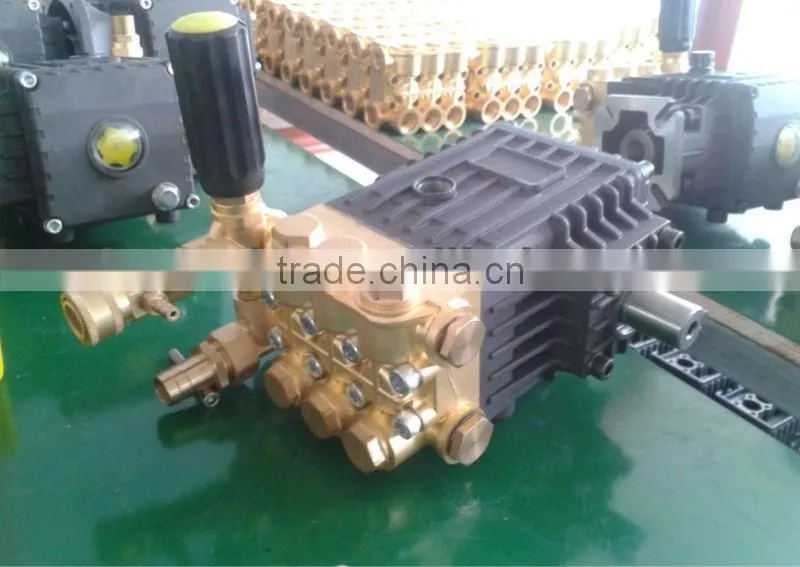

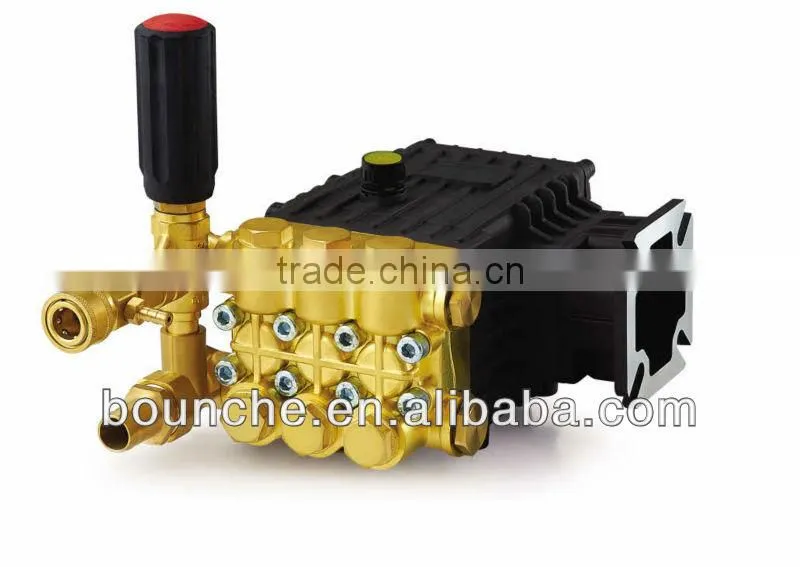

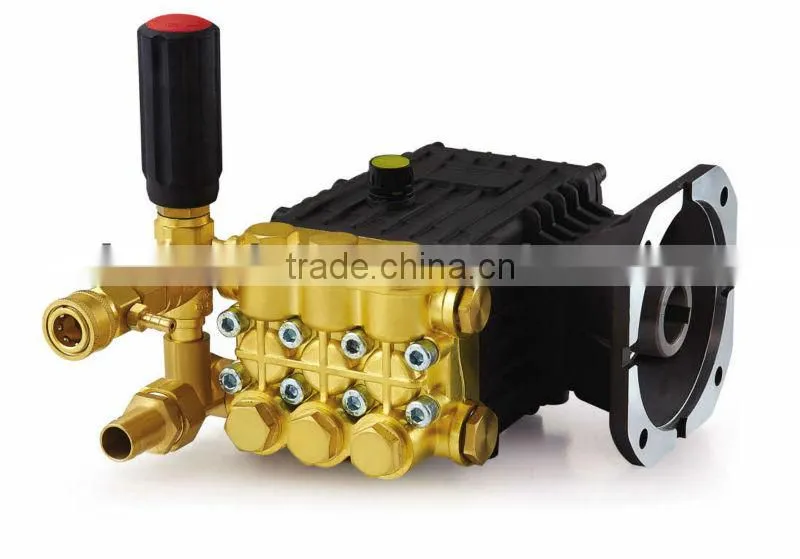

Triplex plunger pump  Features



  • Forged brass cylinder
  • Anodized aluminum crank case
  • ceramic plungers
  • fixed rate chemical injector
  • pressure adjustable
  • quick connect outlet
  • NSK bearing



Optional



  • thermal relief valve
  • pressure gauge



Triplex plunger pump  technical parameter:





Model Max pressure Flow rate RPM Power plunger dia shaft dia G.W Carton dimension(cm)
3wz-3600B 3600psi/250bar/250pa/25mpa 15L per minutes 3400 13HP 18mm 25.4mm 9KGS 32*28*24
3wz-2900B 2900psi/200bar/200pa/20mpa 15L per minutes 3400 9HP 18mm 25.4mm 9kgs 32*28*24
3wz-2500C 2500psi/170bar/170pa/17mpa 15L per minutes 3400 178FE(7HP) 18mm 25.4mm 9kgs 32*28*24
3wz-3600C 3600psi/250bar/250pa/25mpa 15L per minutes 3400 186FE(13HP) 18mm 25.4mm 9kgs 32*28*24















We also have other different type: high pressure pump coupling with diesel or gasoline  engine :



3wz-2900B Triplex plunger pump

Model Max pressure Flow rate RPM Power plunger dia (mm) Shaft diameter G.W Carton dimension(cm)
3wz-2200 2200psi/120bar/120pa/12mpa 15L per minutes 3400 5.5HP 18mm 19.05mm 9KGS 32*25*24
3wz-2500 2500psi/150bar/150pa/15mpa 15L per minutes 3400 6.5HP 18mm 19.05mm 9KGS 32*25*24





Pump which coupling with electric motor:



3wz-2900B Triplex plunger pump

Model Max pressure Flow rate R.P.M Power plunger dia shaft diameter G.W Carton dimension(cm)
3wz-3600A 3600psi/250bar/250pa/25mpa 15L per minutes 1450 7.5KW 18mm 28mm 9kgs  32*25*24
3wz-3600 3600psi/250bar/250pa/25mpa 13.7L per minutes 1450 5.5KW 18mm 28mm 9kgs   32*25*24
3wz-2900 2900psi/200bar/200pa/25mpa 13.7L per minutes 1450 4KW 18mm 28mm 9kgs   32*25*24
3wz-2500 2500psi/170bar/170pa/17mpa 13.7L per minutes 1450 3KW 18mm 28mm 9kgs   32*25*24
3wz-1850 1850psi/130bar/130pa/13mpa 13.7L per minutes 1450 3KW 18mm 28mm 9kgs   32*25*24
3wz-1450A 1450psi/100bar/100pa/10mpa 13.7L per minutes 1450 2.5KW 18mm 28mm 9kgs   32*25*24
3wz-1450 1450pso/100bar/100pa/10mpa 13.7L per minutes 1450 2.2KW 18mm 28mm 9kgs   32*25*24





3wz-2900B Triplex plunger pump





Model Max pressure Flow rate R.P.M plunger dia shaft diameter G.W Carton dimension(cm)
3wz-3600C 3600psi/250bar/250pa/25mpa 15L per minutes 1450 18mm 24mm 9kgs  32*25*24
3wz-3600 3600psi/250bar/250pa/25mpa 13.7L per minutes 1450 18mm 24mm 9kgs   32*25*24
3wz-2900 2900psi/200bar/200pa/25mpa 13.7L per minutes 1450 18mm 24mm 9kgs   32*25*24
3wz-2500 2500psi/170bar/170pa/17mpa 13.7L per minutes 1450 18mm 24mm 9kgs   32*25*24
3wz-1850 1850psi/130bar/130pa/13mpa 13.7L per minutes 1450 18mm 24mm 9kgs   32*25*24
3wz-1450A 1450psi/100bar/100pa/10mpa 13.7L per minutes 1450 18mm 24mm 9kgs   32*25*24
3wz-1450 1450pso/100bar/100pa/10mpa 13.7L per minutes 1450 18mm 24mm 9kgs   32*25*24



Model Max pressure Flow rate RPM Power plunger dia shaft bore G.W Carton dimension(cm)
3wz-3600D 3600psi/250bar/250pa/25mpa 15L per minutes 3400 13HP 18mm 24mm 9KGS 32*28*24
3wz-2900D 2900psi/200bar/200pa/20mpa 15L per minutes 3400 9HP 18mm 24mm 9kgs 32*28*24
3wz-2500E 2500psi/170bar/170pa/17mpa 15L per minutes 3400 178FE(7HP) 18mm 24mm 9kgs 32*28*24
3wz-3600E 3600psi/250bar/250pa/25mpa 15L per minutes 3400 186FE(13HP) 18mm 24mm 9kgs 32*28*24











Axial pump :







Model Max pressure(bar) Flow rate R.P.M Power Shaft diameter G.W
3wz-5.5 170bar 9L per minutes 3400 5.5HP 19.05mm 5KGS
3wz-6.5 180bar 9L per minutes 3400 6.5HP 19.05mm 5kgs

3wz-2900B Triplex plunger pump
