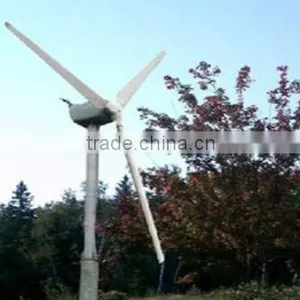

Wind Generator
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
Multifit
Model Number:
MW-1000W
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vertical Wind GeneratorNegotiableMOQ: 10 Sets -
Horizontal Wind GeneratorNegotiableMOQ: 10 Sets
-
Vmaxpower 1KW Wind Driven System 48VUS$ 1,105 - 1,160MOQ: 1 Set
-
300W Wind System 24V Generator/Wind Blade/Controller/TowerUS$ 208 - 240MOQ: 1 Set
-
Wind System 500W 24V Generator/Wind Blade/Controller/TowerUS$ 640 - 671MOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
Multifit
Model Number
MW-1000W
Type
Generator
Electricity Generator Type
Wind Power
Output Voltage (V)
48
Specifications
300W Wind TurbineMulti protection will be taken into account in the wind controller.
more than 20 years span life.
Wind Driven Generator
Generator
Three phases permanent magnet (NdFeB) synchronous alternator
Model |
300W |
Rated power( W) |
300 |
Rated voltage( DCV) |
24 |
Rated voltage( ACV) |
17 |
Rated current( DCA) |
12 |
Magnetic pole count |
8 |
Slot count |
36 |
Rated speed( rpm) |
450 |
Max speed( rpm) |
600 |
Weight( kg) |
12.5 |
Efficiency (%) |
75 |
S tart-up moment(Nm) |
0.4 |
Blades
Model |
300W |
Material of blades |
Carbon Fiber |
Number of blades |
3 |
Diameter ( m) |
1.5 |
Area( m2) |
1.80 |
TSR |
3 |
Rotor power coefficient |
0.38 |
Off-grid Controller
Model |
3W |
Dump loader power( W) |
300 |
Batteries rated voltage( V) |
24 |
Float charge voltage( V) |
30 |
Overvoltage( V) |
30 |
Over charge resume voltage( V) |
28 |
Undervoltage( V) |
21 |
Under charge resume voltage( V) |
24 |
Net weight( kg) |
20 |
Guy cable tower
Model |
300W |
Height( m) |
6 |
Diameter ( mm) |
48 |
Thickness |
2.5 |
Sections |
3 |
Weight( kg) |
23.5 |
