Help Center7-layer Coextruded Thermoforming Bottom and Top Film
Related Products
-
7-layer Coextruded Top and Thermo-forming Bottom Film Quality ChoiceUS$ 3.4 - 4.6MOQ: 500 Kilograms -
High Barrier Thermo-forming Bottom Film for Meat PackagingUS$ 3.4 - 4.6MOQ: 500 Kilograms
-
PA/PE Co-extruded Thermo-forming Bottom FilmUS$ 3.4 - 4.6MOQ: 500 Kilograms
-
EVOH/PA/PE Co-extruded Thermo-forming Bottom FilmUS$ 3.4 - 4.6MOQ: 500 Kilograms
-
Barrier 7-layer EVOH/PA/PE Co-extruded FilmUS$ 3.4 - 4.6MOQ: 500 Kilograms
Specifications
high barrier thermoforming bottom and top filmprocessing type: multiple extrusion
usage:food vacuum packaging
good barrier

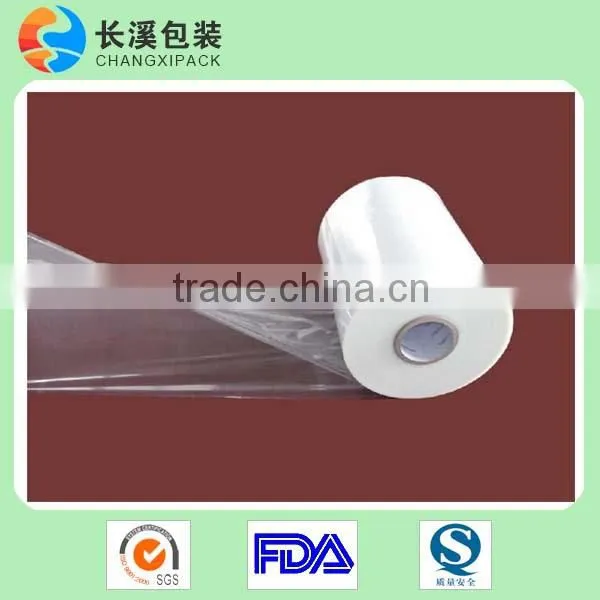

Product Show&Application
High Barrier Multiple Co-extruded Film
Details
Material: EVOH PA PE PP TIE
Processing type: 7-layer co-extrusion
Thickness :60-280 micron
Width: within 1000mm
Hot temperature:121°c
Low temperature: -30°c
Heat sealing temp:110°c-150°c
Features:
♦Highly transparent
♦Puncture and toughness resistance
♦Good thermoforming property
♦Environmetally Friendly
♦Excellent Barrier to Oxygen and Moisture proof
♦Low temperature Frozen -30℃ to high temperature Sterilization 121℃
Material property:
Specification:
Production series |
Barrier property |
Structure |
Advantages |
HBE |
♦♦♦♦♦ |
PA/TIE/PA/EVOH/PA/TIE/PE PE/TIE/PA/EVOH/PA/TIE/PE |
EVOH barrier layer, high barrier performance; |
HBP |
♦♦♦♦♦ |
PA/TIE/PA/EVOH/PA/TIE/PP PP/TIE/PA/EVOH/PA/TIE/PP |
EVOH,PA good barrier performance; |
MBE |
♦♦♦ |
PA/TIE/PE/TIE/PA/TIE/PE PE/PE/TIE/PA/TIE/PE/PE |
PA barrier layer, medium barrier performance; |
MBP |
♦♦♦ |
PA/TIE/PE/TIE/PA/TIE/PP PP/PP/TIE/PA/TIE/PP/PP |
PA barrier layer, medium barrier performance PP sealant layer, high temperature resistance |
Data Sheet:
Properties |
Unit |
Typical Value |
Test Value |
|
Tensile strength |
MD |
N/25mm |
DIN 53455-6 |
400 |
TD |
DIN 53455-6 |
450 |
||
Elongation |
MD |
% |
DIN 53455-6 |
560 |
TD |
DIN 53455-6 |
570 |
||
Heat seal strength |
N/15mm |
DIN 53455-6 |
39/368,33/8,40/243 |
|
Haze |
% |
|
7.9 |
|
Gloss |
% |
|
87 |
|
|
C.O.F |
US |
In/in |
<0.3 |
|
UK |
|
|
||
US |
Out/out |
<0.5 |
|
|
UK |
|
|
||
|
WTR (at 38℃, %RII,1 atm ) |
g/m^2*24h |
DIN 53122 |
<3 |
|
|
OTR (at 23℃,Dry,1 atm) |
Cc/m^2*24h |
DIN 33880 |
<12 |
|
Resistance hot |
℃ |
121 |
|
|
Resistance cold |
℃ |
-20 |
|
|
Packaging:
Shipping:
Contact Us:
Why Choose ChangxiPack:

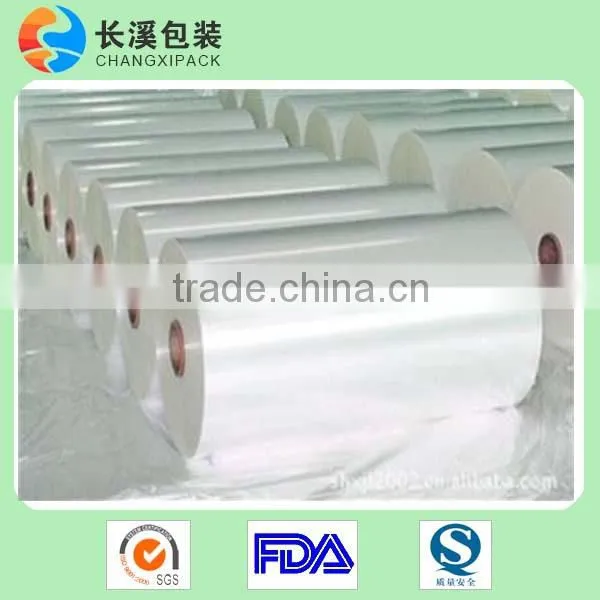

Product Line&Workshop
