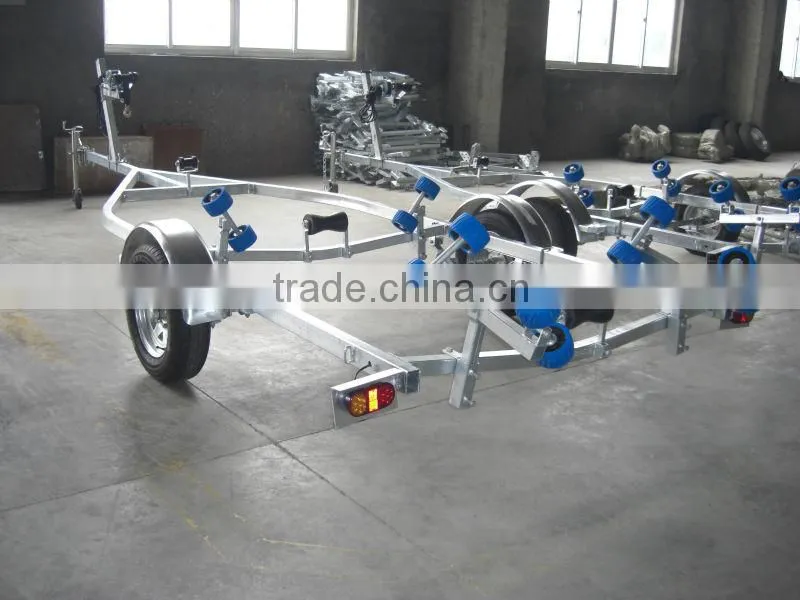

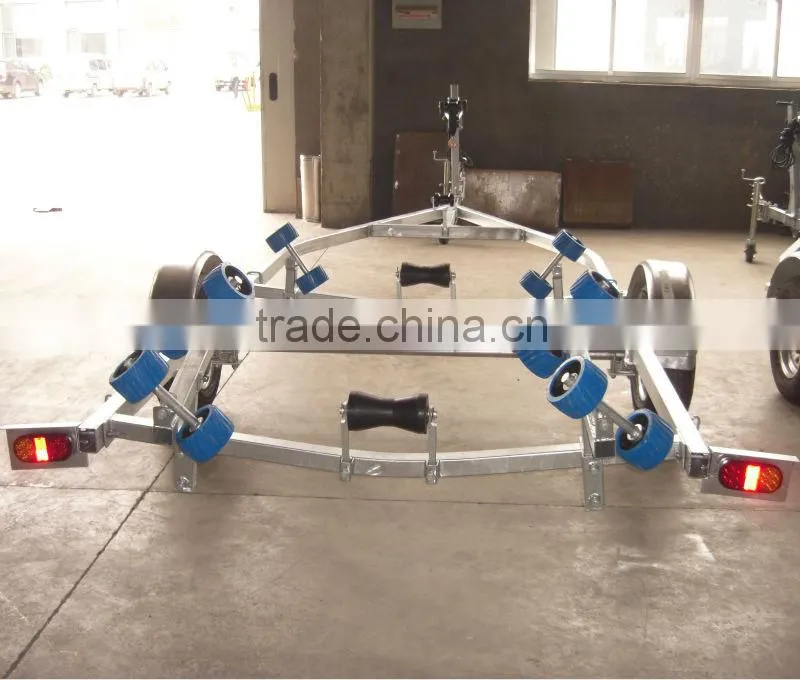

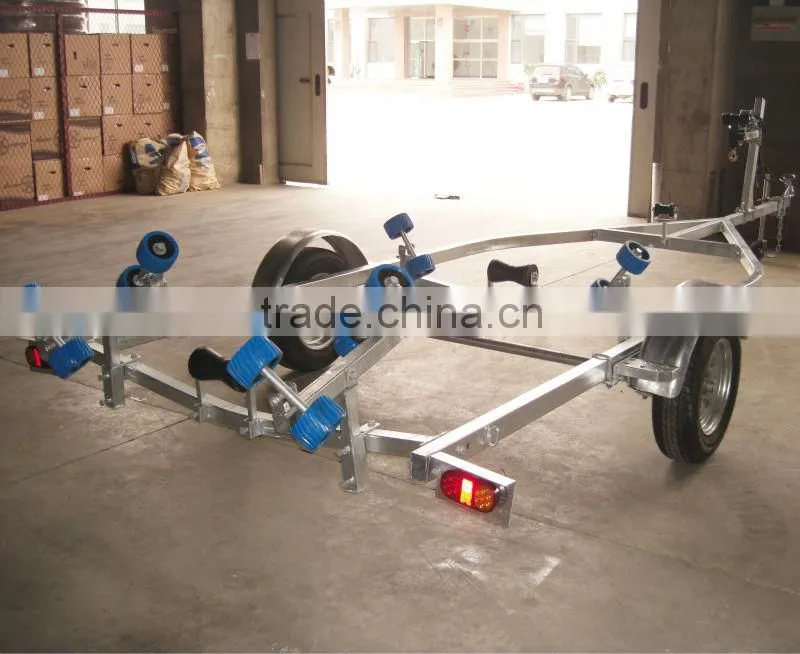

Heavy Duty Hot Dipped Galvanized LH5800 Boat Trailer
Negotiable
MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
OEM No.:
Boat Trailer
Max Payload:
600KG
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Duty Hot Dipped Galvanized LHQ4300 Boat TrailerNegotiableMOQ: 10 Sets -
Heavy Duty Hot Dipped Galvanized LH6900 Boat TrailerNegotiableMOQ: 10 Sets
-
2014 Fondle Admiring Hot Dipped Galvanized Folded Boat TrailerNegotiableMOQ: 10 Sets
-
Heavy Duty Hot Dipped Galvanized LH6900 Boat TrailerNegotiableMOQ: 10 Sets
-
Hot Sale Hot Dipped Galvanized Boat Trailer LH5500NegotiableMOQ: 10 Sets
OEM No.
Boat Trailer
Max Payload
600KG
Place of Origin
Shandong, China
Brand Name
Rongcheng Longhe Vehicle
Model Number
LH5800
Size
19ft*5.25ft
Specifications
1. Size:19Ft*5.25Ft2.Axle:double axle
3.Loading capacity:600kg
4.Surface finishing:Hot-dipped galvanized to prevent rust
LHQ5800 with CE Certification
Suit for the boats:5.8/19feet
Trailer Length:5.8m/19feet
Width:1.6m/5.25feet(not include fender)
Tire:1855R12
Tail light:Water proof LED light
Hub, rim, axle, leaf spring: hot-dipped galvanized
The complete trailer are hot-dipped galvanized to prevent the whole trailers from rust
Loading capacity:600KG/1300LBS/pound
Optional:dis brake system(Hot-dipped galvanized)
Material | ||||||
| 1.1 GRADE | ||||||
| DuraGal angles,channels and flats are manufactured by a cold forming process which ensures that it complies with the requirements shown below | ||||||
| section | Actual thickness t mm | Grade | Minimum Yield Stress Mpa | Minimum Tensile Strength MPa |
|
|
| Flats | t≤6.0 t>6.0 | C400LO C350LO | 400 350 | 450 400 | 20 20 | |
| Angles and Channels | t≤6.0 t>6.0 | C400LO C400LO | 450 400 | 500 450 | 16 16 | |
| DuraGal profiles comply with the requirements of steel type 7B in Talbe 10.4.1 of AS4100. | ||||||
| LO indicates that DuraGal profiles have Charpy V-notch impact properties as specified in TS100[11]. Table 10.4.1 of AS4100 Steel Structures permits impact tested LO grades to have the following minimum servicetemperature: | ||||||
| Actual thickness mm | Lowest one day mean ambient Temperature ºC | |||||
| t≤5 | -30 | |||||
| 5<t≤10 | -20 | |||||
| 1.2 SURFACE FINISH | ||||||
| A minimum of 100g/m² coating of zinc is applied by in-line galvanising to a mechanically(shot blasted)and chemically cleaned bright metal(AS 1627.4 Class 3.0) surface. A clear polymer barrier coating protects the protects the galvanising prior to fabricartion. | ||||||
| 1.3 SIZE RANGE | ||||||
| Equal Angles | Unequal Angles | Channels | Flats | |||
| 30x30 to 150x150 | 75x50 | 75x40 to 300x90 | 50to300 | |||
Craft : blanking,stamping, grilding,welding,assembling,painting, baking etc.
Blanking workshop
surface finishing--- painting finish or baking finish
Fiberglass workshop
Assembly shop
Delivery
Our certification:
Our products & factory:
