Specifications
Expanded Metal LathApproved the certificate of ISO9001:2000

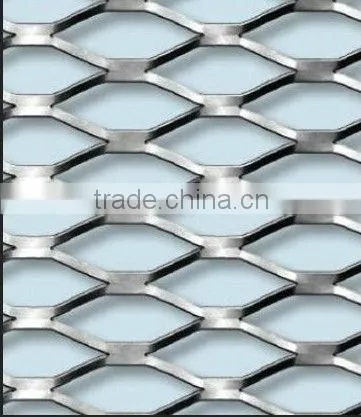

Standard expanded metal

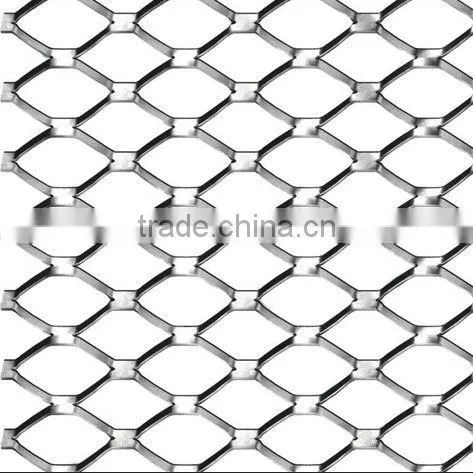

Flattened expanded metal

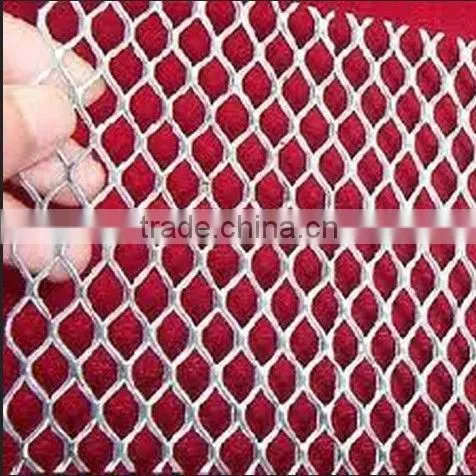

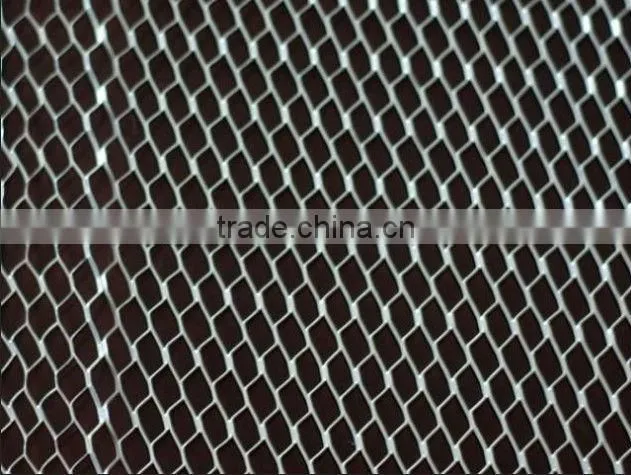

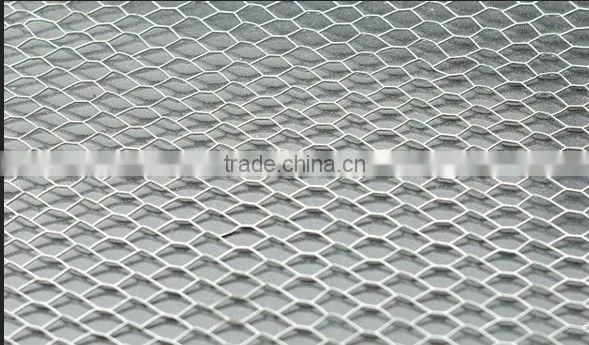

Expanded Metal Lath
Expanded metal lath is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation.
Materials:Steel Plate, Aluminum Plate, Stainless Steel Plate, Titanium Plate, Alum-Platinum Plate, Lead Plate, Nickel Plate, etc.
Features: It is stronger, lighter in weight and more rigid than the original base metal.
Hole patterns:Conventional mesh is formed in a diamond pattern. It has other pattern of square, round, triangle, scale-like opening.
Uses:Widely used in the agriculture, construction, medicine, filtering, paper-making, handicraft -making etc.

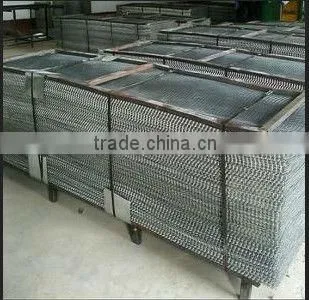

We can supply expanded metal mesh in rolls or sheets of different sizes.
SWD: Short way of design measured from center of bond to center of bond.
LWD: Long way of design measured from center of bond to center of bond.
SWO: Short Way of Opening
LWO: Long Way of Opening
Strand: One side of expanded metal design.
Thickness: Thickness of the base metal
Bond: The solid intersection of two strands - Double the strand width.

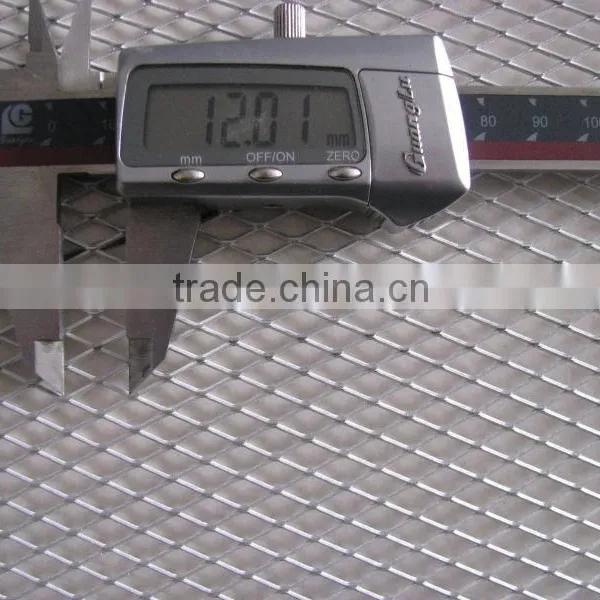

Mesh: This is the nominal distance from the mid-point of one bond to the mid-point of the next bond measured across the SWD.
Regular expanded metal: Expanded metal mesh as it is produced off the expanded metal press with no secondary flattening operation. Material looks similar to a louvered design.
Flattened expanded metal : Expanded metal that has been cold-rolled after expansion, to provide a smooth, flat, and level sheet. The flattening process usually reduces the original gauge of the base metal.
| For the use of many industries | ||||||
| Metal Thickness | Nominal size of holes |
Size of standard product |
Calculated Weight kg/m2 | |||
| SWM | LWM | Strand | Width | Length | ||
| 0.5 | 3 | 6 | 1000 2000 |
2000 | 1.76 | |
| 3.2 | 8 | |||||
| 5 | 10 | |||||
| 6 | 12.5 | 1800 | 3000 | 1.08 | ||
| 7 | 14 | |||||
| 8 | 16 | 2000 | 3340 | |||
| 9 | 20 | |||||
| 12 | 30 | 1.35 | 1800 2000 |
3600 4000 |
0.88 | |
| 10 | 25 | 1.12 | ||||
| 0.8 | 10 | 25 | 1.12 | |||
| 12 | 30 | 1.35 | 1.41 | |||
| 15 | 40 | 1.68 | ||||
| 1.0 | 10 | 25 | 1.12 | |||
| 12 | 30 | 1.35 | 1.76 | |||
| 15 | 40 | 1.68 | ||||
| 1.2 | 10 | 25 | 1.13 | |||
| 12 | 30 | 1.35 | 2.12 | |||
| 15 | 40 | 1.68 | ||||
| 18 | 50 | 2.03 | ||||
| 1.5 | 15 | 40 | 1.69 | 2.64 | ||
| 18 | 50 | 2.03 | ||||
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.25 | 3.53 | |||
| 2.0 | 18 | 50 | 2.03 | 1800 2000 2500 |
3600 4000 5000 |
|
| 22 | 60 | 2.47 | ||||
| 29 | 80 | 3.26 | 4.42 | |||
| 36 | 100 | 4.05 | ||||
| 44 | 120 | 4.95 | 5.29 | |||
| 3.0 | 36 | 100 | 4.05 | |||
| 44 | 120 | 4.95 | ||||
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 | |
| 2500 | 6400 | |||||
| 65 | 180 | 4.60 | 2000 | 6400 | 3.33 | |
| 2500 | 8000 | |||||
| 4 | 22 | 60 | 4.5 | 1500 | 2000 |
2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 | ||
| 38 | 100 | 6 | 2000-4500 | 9.91 | ||
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 | |
| 35 | 80 | 6 | 2000-4000 | 14.71 | ||
| 38 | 100 | 7 | 2000-4500 | 14.67 | ||
| 56 | 150 | 6 | 2000-6000 | 8.41 | ||
| 76 | 200 | 6 | 2000-6000 | 6.19 | ||
| 6 | 32 | 80 | 7 | 2000-4000 | 20.60 | |
| 38 | 100 | 7 | 2000-4500 | 17.35 | ||
| 56 | 150 | 7 | 2000-6000 | 11.77 | ||
