expanded meshexpanded mesh sheet or coil
finishing:galvanized,painting,pvc coated,anodizing
Expanded Mesh

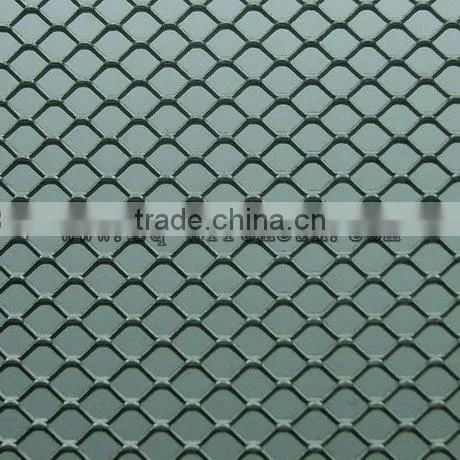

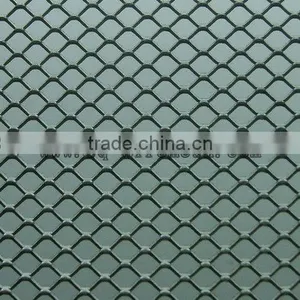

Expanded mesh is also called expanded metal and pulled plate wire mesh.A rigid piee of metal that has been slit and drawn into and open mesh pattern in a single operation.
It was divides into standard and flattened expanded metal.
Conventional mesh is formed in a diamond pattern.It has other patterns of square,hexagonal etc.
Materials:Steel Plate, Aluminum Plate, Stainless Steel Plate, Titanium Plate, Alum-Platinum Plate, Lead Plate, Nickel Plate, etc.
SWD: Short way of design measured from center of bond to center of bond.
LWD: Long way of design measured from center of bond to center of bond.
SWO: Short Way of Opening
LWO: Long Way of Opening
Strand: One side of expanded metal design.
Thickness: Thickness of the base metal
Bond: The solid intersection of two strands - Double the strand width.
Mesh: This is the nominal distance from the mid-point of one bond to the mid-point of the next bond measured across the SWD.
SWD:2.3mm--80mm
LWD:3.0mm--200mm
Thickness:0.4mm--6.0mm
