Specifications
ceiling corner bead1.high rib mesh,
2.Thickness: 0.18mm-0.5mm
3.Length: 2.8m,edge:30-50mm

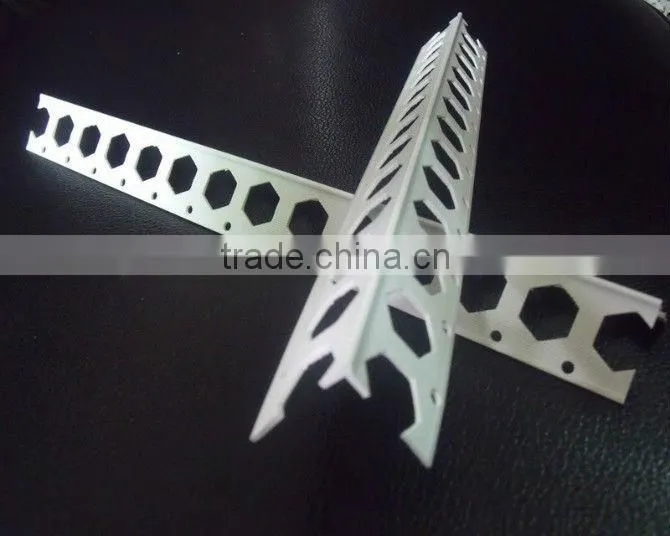

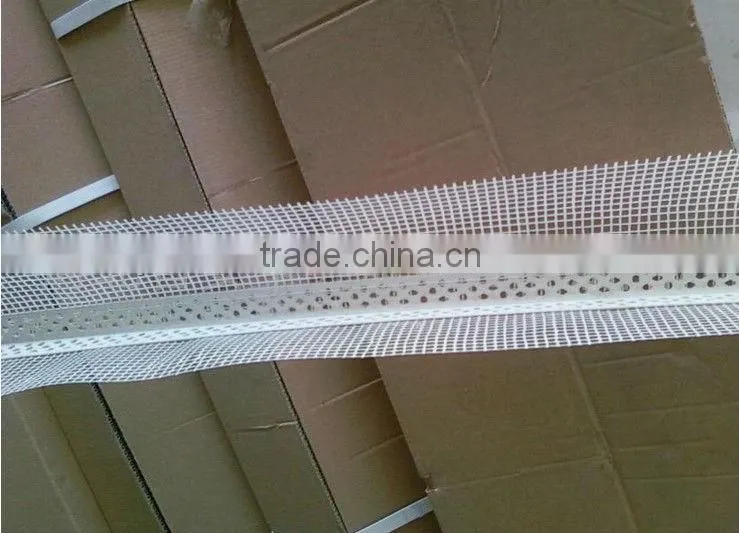

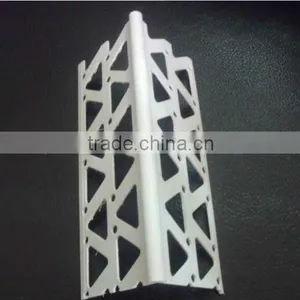

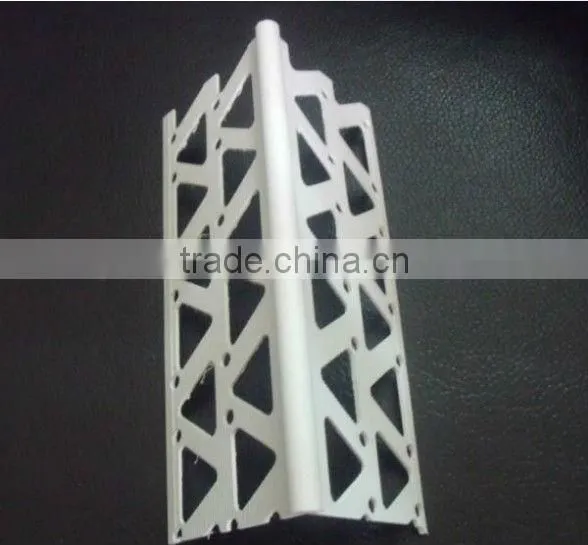

corner bead

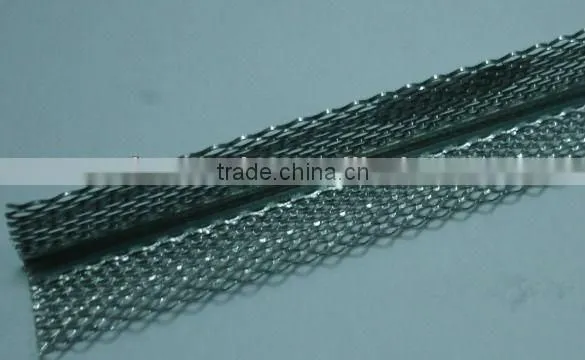

Corner Bead have a smooth round nose bead with Diamond Mesh wings for the keying of plaster right up to the nose of the bead.On the outside is the finished edge which is where one side of your drywall knife runs on when you are applying drywall mud. The two flanges sit flat on your raw drywall. The diamond decoration along the length of the flange act as a keyway for holding the drywall mud to the drywall and the corner. This mesh insures a perfect bond and provides effective reinforcement where most needed. Especially recommended in fireproofing columns and beams. Straight edge nose is easy to install and permits plumb straight outside corners. Excellent protection for corridor corners exposed to traffic.
The expanded mesh wings are easily flexed to adapt to framing irregularities and to match appropriate screed heights. Furnished in galvanized steel and zinc (99% pure zinc) alloy.
=================================================================================================
Material:galvanized steel,stainless steel.
Characteristics:2.7-3.0m 50/box
Usefulness:using in the construction of building and the finish of building may cause the corner place easy to destroy and make construction easy and may save plenty of time.
==================================================================================================
Model |
Thickness (mm) |
Weight (kg) |
Width (mm) |
Length (mm) |
Rib Height (mm) |
Rib Distance(mm) |
021 |
0.21 |
1.70 |
450 |
2200 |
14-20 |
90 |
023 |
0.23 |
1.90 |
450 |
2200 |
14-20 |
90 |
030 |
0.30 |
2.48 |
450 |
2200 |
14-20 |
90 |
035 |
0.35 |
2.90 |
450 |
2200 |
14-20 |
90 |
040 |
0.40 |
3.30 |
450 |
2200 |
14-20 |
90 |
045 |
0.45 |
3.70 |
450 |
2200 |
14-20 |
90 |
050 |
0.50 |
4.10 |
450 |
2200 |
14-20 |
90 |
If any products can meet your require, please contact me without hesitate!
Best price will be offered!
