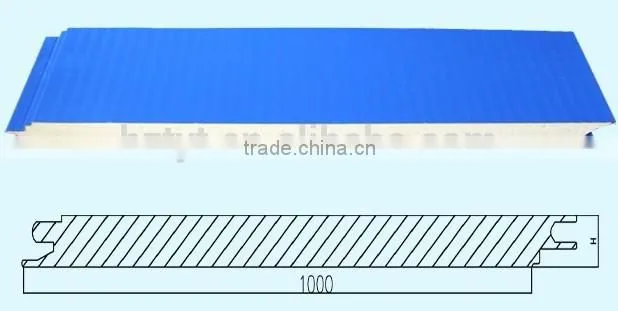

Help CenterPolyurethane Foam Sandwich Panel for Facade Cladding
Related Products
-
Zinc Coating Steel Exterior Cladding for WallNegotiableMOQ: 1000 Meters -
Zinc-aluminiuim Corrugated Roofing PanelUS$ 3 - 5.2MOQ: 2000 Meters
-
PU Sandwich PlateNegotiableMOQ: 1000 Meters
-
Waterproof PU Sandwich PlateNegotiableMOQ: 1000 Meters
-
Aluminium Corrugated Exterior Wall PanelingUS$ 2.98 - 3.1MOQ: 50 Meters
Item |
PUW1000 |
Materials |
Polyurethane foam and Steel sheet |
Structure |
Upper layer: steel sheet |
Core: polyurethane foam | |
Bottom layer: steel sheet | |
Thickness |
Upper layer: 0.4-0.6 |
Core: 40-100mm | |
Bottom layer: 0.4-0.6mm | |
Effective width |
1000(mm) |
Length |
11.8m(40GP), 5.8m(20GP) |
Polyurethane foam density |
35-42kg/m³ |
Standard color |
RAL5012, RAL9002 |
Service time |
10~20 years |
Characteristics |
Light in weight, Anti Oxidation, heat insulation, water resistant, green and environmental |
Application |
Roofs for factory buildings, storages, exhibition halls, gymnasiums etc |
Features:
|
PU sandwich panel has the following characteristics: light dead weight, high mechanical strength, excellent shearing resistant performance, strong corrosion resistance, high durability, and weather fastness, etc. |
|
The sandwich panel has excellent insulating performance: heat insulation, sound insulation, waterproof performance, etc. |
It is easy to install and can be used times over. |
Profile information:
Design optimization
Drawing detailing
Technical support
Precise processing
Installation Instruction
