Specifications
Points:1)The first ACP manufacture factory in china.
2)China Top Brand.
3)China Well-known Trademark.
Key Specifications and Special Features:
1) Standard: according to GB/T 17748-2008 standard.

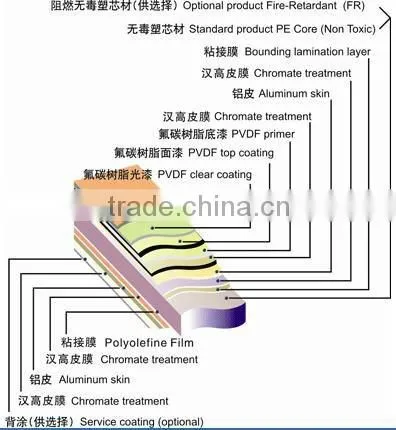

2)Material:a) high quality aluminum alloy volumes.
b) Core:PE/PVDF.
c) Back: aluminum alloy sheet coated with polyester resin painting
d) Surface finish: treated with PVDF and PE resin rolling roasting coating
d) Surface coating thickness: 30um
e) Aluminum alloy sheet thickness: 0.1mm,0.15mm, 0.20mm, 0.3mm, 0.4mm, 0.5mm
3) Specification:
a) Thickness: 3mm,4mm.
b) Width: 1220mm,1240mm,1250mm,1550mm,1570mm
c)Length: 2440mm, 3200mm (max: 5.8 meter) g) Nonstandard sizes are available according to requirement.
Features:
1) Light weight, flat surface and high strength.
2) Excellent heat insulation, sound insulation, fire-resistance, acid-resistance, alkali-resistance, weatherproofness and non-resonance

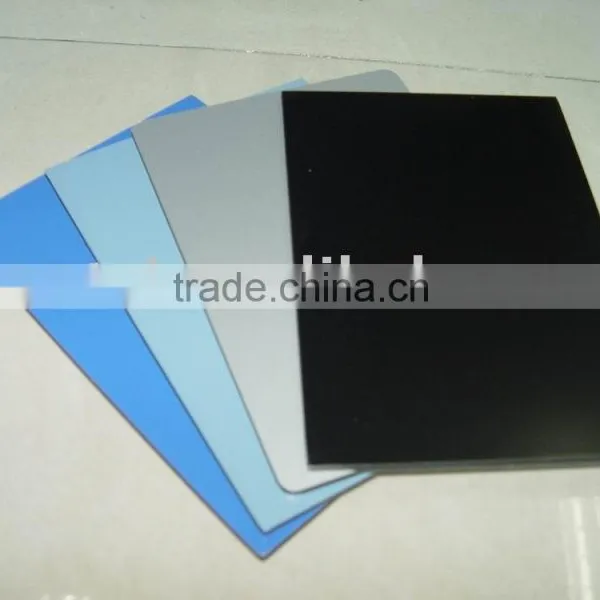

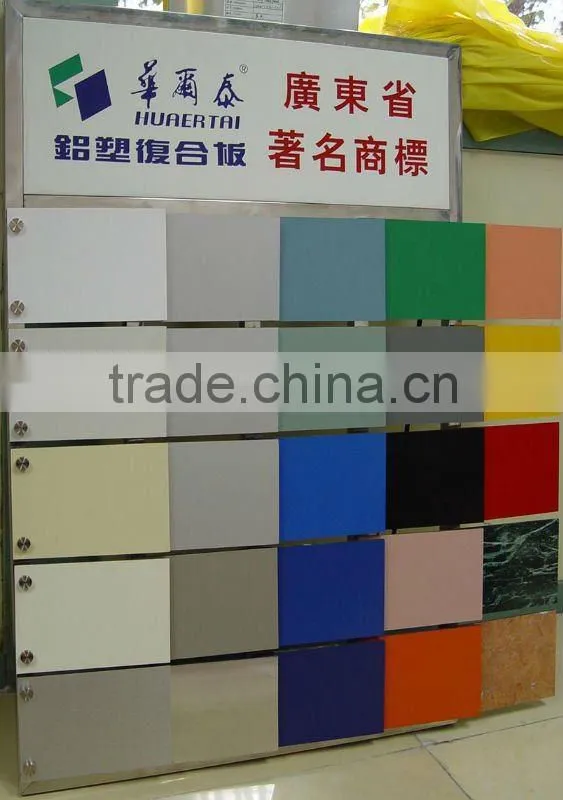

3) Various uniform colors.
4) Can be easily processed and quickly installed.
5) Bright, elegant and magnificent, fit for various designs.
6) 5005 PVDF resin features strong chemical resistance, unique colors can be easily maintained

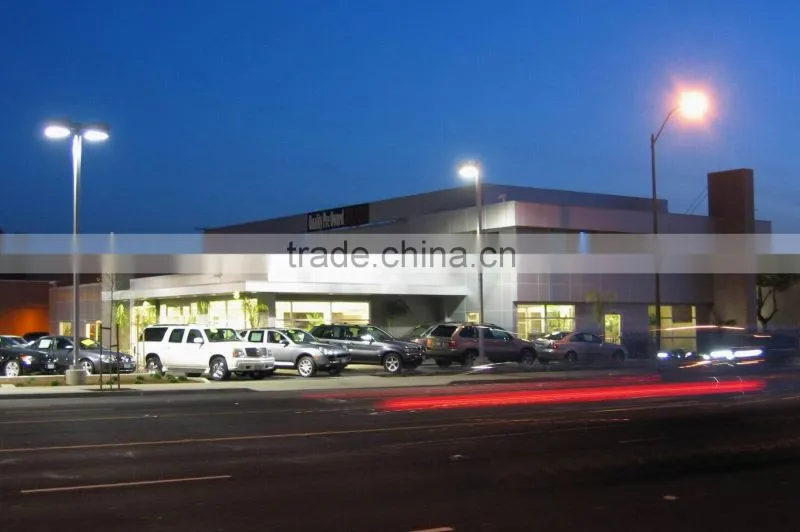

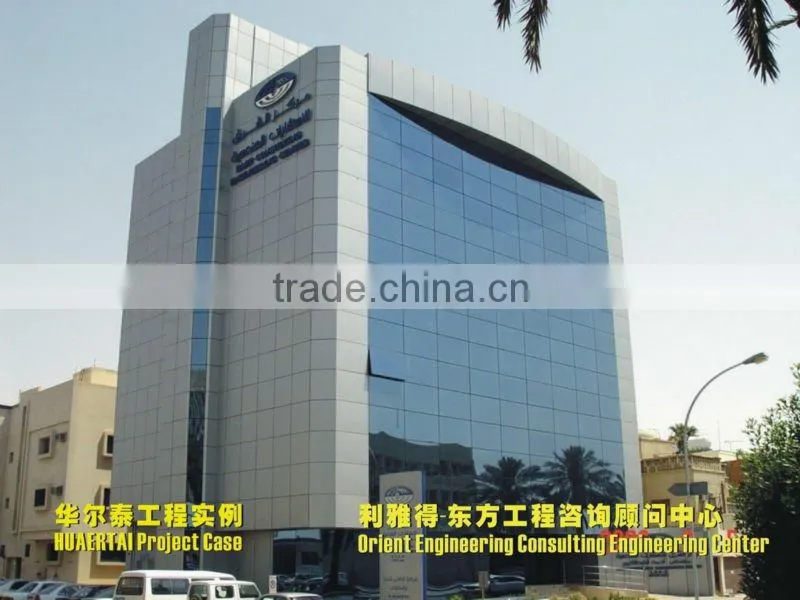

Applications:
1) May be widely used in galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants and apartments
2) An ideal decorative materials for buildings: a) Outer and inner walls b) Kitchen cabinets, billboards, signboards, tunnels, subway interiors c) Ceilings, eaves, galleries, balconies, partitions, interior decorations d) Telephone booths, vehicle bodies, yachts, industrial usage, etc.
Raw Materia |
Product Specifications |
Basic material:Antirust high strength alloy aluminum plate |
Surface/bottom ACP thickness(mm):0.3/0.3, 0.4/0.4, 0.5/0.5 |
| PE core:Non-toxic low density polyethylene |
Length(mm):2000,2440,3000,3200 etc. |
| Surface coating:had basic material and multilayer fluorocarbon resin. |
Width(mm):1220,1250,1500,1570 etc. |
| (PVDF)coating. |
Thickness(mm):3,4,5,6 etc. |
| Remark |
(Producing according to customer's requirements specification size.) |
