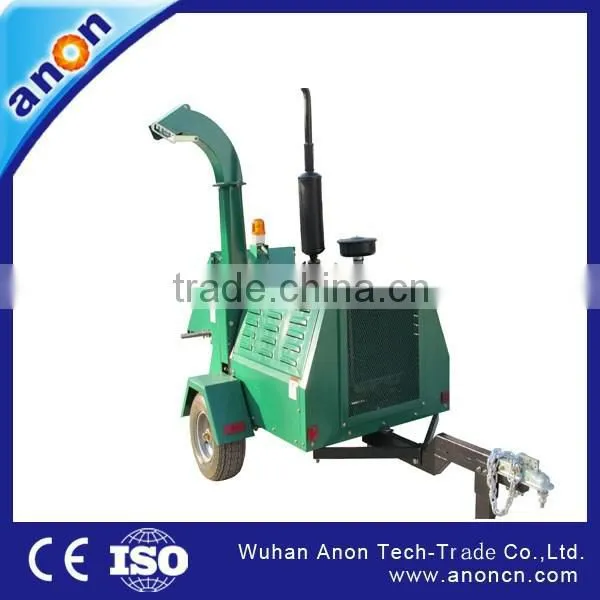

Diesel wood chipper shredder
1. Diesel wood chipper.
2. Used for reducing wood such as softwood or hardwood, fresh or dry wood material into small woodchips.
3. It is consist of main machine, flywheel, knife blades, feeder, hydraulic pressure system, etc.
4. Hydraulic powered Feed System which runs off its own self-contained hydraulic tank and pump.You don't need to use your tractor's hydraulics.
5. 3 blades( 2 rotary blades on the flywheel, 1 stationary blade on the machine), easy to change knives.
6. The wood chipper can connect to trailer.
7. 360 degree discharge chute.
8. 2’ball hitch and safety Chains and leaf spring on the axle.
Features:
1. Hydraulic feeding.
2. Oil tank, PTO pump.
3. Double feedig rollers.
4. Round flywheel housing.
5. Longer chute.
Specifications:
| Model | ANDWC-18/22(18HP/22HP) | ANDWC-40 (35HP ) | |
| Engine | model | Yanmar or Changhai CY1115 diesel engine | Laidong 4L22B diesel engine |
| Type | Single cylinder, | Four cyliders,horizontal, | |
| horizontal,four-stroke | four-stroke | ||
| Rated power | 16.2KW/2200rpm | 25.7KW/2350rpm | |
| Fuel consumption rate | <245KG/KW.h | <238g/KW.h | |
| Engine oil consumption | <1.5g/KW.h | <1.5g/KW.h | |
| Cooled style | Water-cooled:evaporation | Water-cooled | |
| start | Electric start | ||
| Feeding system | Mechanical or hydraulic | hydraulic | |
| Chipper capability | 150mm(max to 200mm) | 200mm | |
| Flywheel diameter | 640mm | ||
| Flywheel weight | 85kgs | ||
| Blades number | 1 stationary blade,2 rotary blades | ||
| Feed hopper inner opening | 200*220mm | ||
| Discharge hood height | 2000mm / longer chute possible | ||
| Rated rpm | 1080 | 1280 | |
| Weight | 650kg | 800kg | |
| Working efficiency | 7-11cbm/h | 9-13cbm/h | |
Drawing of diesel wood chipper shredder
Shipping package of wood chipper
Sales Area of diesel wood chipper shredder
How to pay for ANON diesel wood chipper shredder ?
How to do the trading process with diesel wood chipper shredder ?
Why buy diesel wood chipper shredder from us ?
1. Superior quality and reasonable price.
2. Send out fast--our goods will be sent out once you make a payment.
3.Professional--we are experts in optical source, development, methods, and handlig.
4. Best service--we will answer your questions as soon as possible and try our best to provide you best service.
Most important is--we will satisfy your reasonable requirement and
manufacture in professional way.
Our services of diesel wood chipper shredder
Our factory is one of the biggest and the most professional producers for diesel wood chipper shredder in China. With more than 12 years' experience in manufacturing diesel wood chipper shredder from our customers all over the world. We make sure to supply excellent baler with high quality and competitive price.What's more,
the best after-sale service is also avialable.
1. Pre-sale:
We can recommend more suitable machine and give best solutions for you according to
your requirements
2. Sale:
Keep closed contact with workers, supervise production quality and progress.
Booking space before delivery a week ago, then we will give you related documents.
3. After-sale
Vulnerable parts: offer based on their prime cost during one year.
Invulnerable parts: offer for free during one year.
After one year, offer vulnerable and invulnerable parts with factory prices.
