Specifications

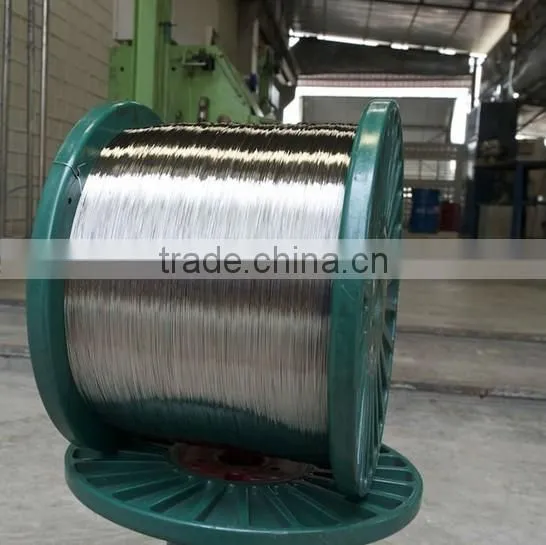

Anping Annealed 0.16mm Stainless Steel Wire1. Facory Sales 302
2.temper:soft 25% elongation
3.BWG 33, 0.20mm
4.ISO9001:2008
Boheng Soft Annealed 0.20mm Stainless Steel Wire(FACTORY)
1.Facory Sales 302
2.temper:annealed soft
3.BWG 33, 0.20mm
4.ISO9001:2008
Our common specification of Stainless Steel Wire:/Spring Wire/Mesh Wire is as below:
Material:304, 316, 304L,316L
wire diameter:0.5-5.0mm
packing:in spools , in coils
weight:5kg/spool, 10 kg/spool ,25kg/spool
or as the customer's requirement
Tember: hard , 1/2 hard, annealed soft
Chemical Composition:
Grade |
C |
Si |
Mn |
P |
S |
Ni |
Cr |
AISI302 |
0.15 |
1.00 |
2.00 |
0.045 |
0.030 |
8.0-10.0 |
17.0-19.0 |
304 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.0-10.0 |
18.0-20.0 |
304HC |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
8.0-10.0 |
17.0-19.0 |
304L |
0.3 |
1.00 |
2.00 |
0.045 |
0.03 |
9.0-13.0 |
18.0-20.0 |
316 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
10.0-14.0 |
16.0-18.0 |
316L |
0.03 |
1.00 |
2.00 |
0.045 |
0.03 |
12.0-15.0 |
16.0-18.0 |
321 |
0.08 |
1.00 |
2.00 |
0.045 |
0.03 |
9.0-13.0 |
17.0-19.0 |
430 |
0.12 |
0.75 |
1.00 |
0.04 |
0.03 |
----------- |
16.0-18.0 |
430F |
0.12 |
1.00 |
1.25 |
0.06 |
0.15 |
----------- |
16.0-18.0 |
Below is our production drawing - wire process.
Style of stainless steel wire
1.EPQ wire (electro polishing quality)
2.Cold heading wire (cold heading quality for making screws, fasteners, balls ,etc)
3.Nail wire 4.Weaving wire ,Braiding wire
5.Spring wire 6. Annealing wire , redrawing wire ,tie wire
7.Welding wire 8.Free cutting ,profiling wire
Below are our packing.
