Specifications
silent ricardo diesel generator1.Origin:Weifang City
2.AMF& ATS,canopy is optional
3.Warranty:1500 working hours or 1 year

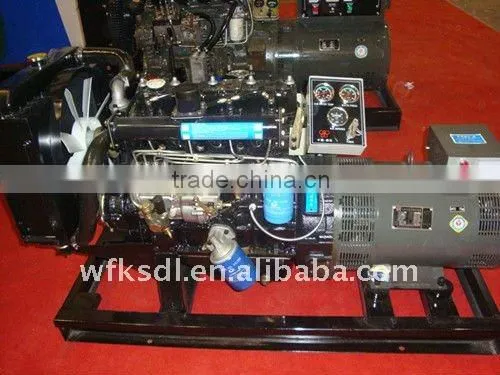

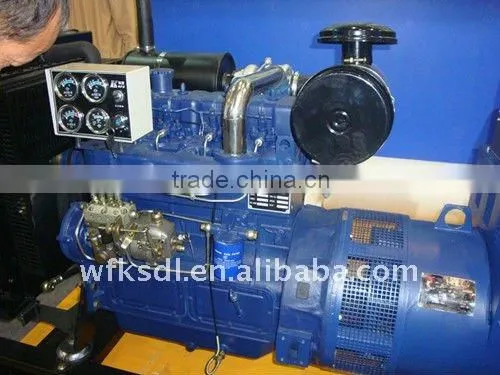

low fuel consumption silent ricardo diesel generator
Diesel China generator set Features :
1. The series of diesel engines are optimized designed by contain the structure performance , high intensity of the original diesel engine .
2. All series engines are developed on the basis of original model by optimizing its fuel system , air intake and exhaust system , cooling system and transmitting system .
3. "Kaisheng" engine with perfect spare arts , various air filter , muffler , alternator , starter , fan , radiator , oil cooler , electrical stop part , electrical governor , and so on .
4. 42CrMo highpressure forged steel crankshaft , white journals and rolled fillets are subject to highfrequency quenching to improve fatigue strength and wear resistance .
5. Wet liner with higher body support from the bottom , and patented 4 valves per cylinder technique effective reduces the noise .
6. Lower emission and lower noise are environmentally .
7. Credible alternator : all the generator are manufactured with world famours brand American Stamford alternator , TFW serial 3phrase AC synchronous alternator , TZH and STC phase AC synchronous alternator .
8. High-efficiency vibration absorber can make sure that the generator set runs steadily .
9. Special noise elimination setting restrain machinery noise , and the noise can be lowered below 75db .
10. Install AMF or ATS system as customer's requirement
Our advantages :
1. We are the OEM with more than 15 years experience on diesel engine/generator .
2. Adopt International quality standards , in order to meet high quality requirements
3.Strong technical support / Advanced production line
| GENERATOR SET MODEL | KS150GF | |
| Voltage | 400V/230V | |
| Frequency | 50Hz | |
| Power factor | 0.8 | |
| Phase | 3Ph 4Wr | |
| Prime Output (kW/kVA) | 150/187.5 | |
| Standby Output(kW/kVA) | 165/206.25 | |
| TECHNICAL DATA | ||
| DIESEL ENGINE MODEL | 6113ZLD | |
| Brand | Ricardo | |
| Engine Characters | water-cooled, inline, 4-stroke,direct injection | |
| Constant Output (kW/kVA) | 155/193.75 | |
| Standby Output (kW/kVA) | 170.5/213.125 | |
| Aspiration | Turbocharged | |
| Bore(mm) X Stroke(mm) | 113x125 | 95x115 |
| Piston Speed (m/s) | 6.25 | |
| Compression Ratio | 16:1 | |
| Machine Governor | ≤5% | |
| Electronic Governor | ≤1% | |
| Acostic Pressure(dBA) | ≤95 | |
| Exhaust Temperature | ≤600 | |
| Lube Capacity | 21 | |
| No.of Cylinder | 6.L | |
| Displacement | 7.52 | |
| Rating Fuel Consumption (L/h) | 34.48 | |
| ALTERNATOR | ||
| Brand | Copy Stamford | |
| Model | TFW2-150 | |
| Continuous Output(kW/kVA) | 140/175 | |
| Power Efficiency | 91.00% | |
| Excitation Type | Brushless | |
| Insulation Class | H | |
| DIMENSIONS AND WEIGHTS | ||
| Dimension(mm) | 2740X960X1790 | |
| Gross Weight | 1750 | |
