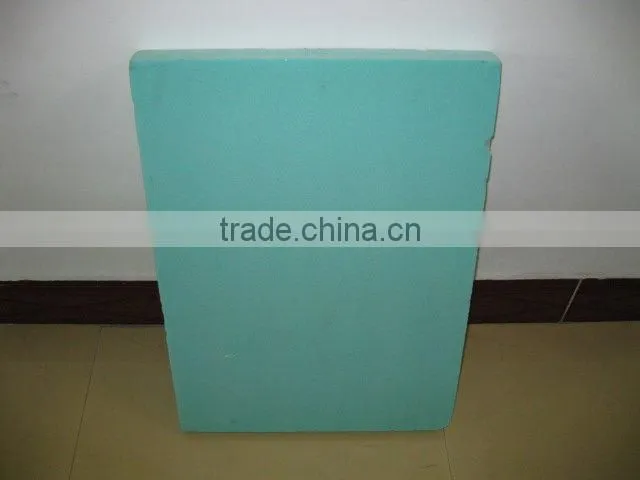

Help CenterXPS Board/Extruded Polystyrene Insulation Board/Building Wall Material
Related Products
-
PEF Insulation Board/Inflamable Board /Unventilative PEF BoardNegotiableMOQ: 100 Cubic Meters -
PEF Insulation Pipe/Soft and Durable Pipe/Cold Insulation PipeNegotiableMOQ: 2 Tons
-
(JN)Plastic Foam Insulation Board/Pliable Roll Board /Insulation BoardNegotiableMOQ: 500 Cubic Meters
-
(XPS) Extruded Polystyrene Insulation BoardNegotiableMOQ: 300 Square Meters
-
XPS Foam Board / Heat InsulationNegotiableMOQ: 100 Cubic Meters
Specifications
1. Extruded polystyrene insulation board2. cold and heat insulation
3. sound absorption
Product introduction
XPS (extruded polystyrene) insulation board is comprised of import polyethylene and manufactured through a special plastic extruction process with high density. It is produced by environmental material, and generates no harmful gas, the leftover material can be reuse, will not be decompose and mildew, anticorrosion. It has smooth surface through extrusion, and has completely closed cell inside. This kind of material has excellent heat insulate performance, high moisture resistance, lightweight excellent compressive strengths, and anticorrosion. This is ideally use for the construction industry.
XPS insulation board has 99% closed cell rate. As a result for high heat resistance, low expand rate and low thermo conductivity. The heat insulation effect of 25mm thick XPS board is superior than 120mm thick concrete perlite. It is usually used in apartments, high-rise buildings, workshop, cold storage warehoused for heat insulation. Compare XPS with ESP, ESP is bigger in cells and loser in structure.
Specification
Density: 40, 50kg/m3
Size (L x W): 1800 X 600mm
Thickness: 20. 25. 30. 40. 50mm
Physical properties
Thermal conductivity (/m.k):<=0.028
Moisture absorption:1%
Temperature deformation: 40 -90 degree (0.6%)
Compressive strength:250kpa
Thermal resistance retention rate:10 year 80%
