Help CenterLT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound Machine
Related Products
-
LT-5500 Trolley 3d 4d Color Doppler Ultrasound Scanner MachineNegotiableMOQ: 1 Set -
LT6000 NEW Medical Mobile Color Ultrasonic Diagnostic SystemNegotiableMOQ: 1 Set
-
LTE6 Laptop Cardiac Color Doppler Vascular Ultrasound Scanner MachineNegotiableMOQ: 1 Set
-
LTE8 Portable Cardiac Color 160GB Doppler Ultrasound MachineNegotiableMOQ: 1 Set
-
LTE9 Portable Color Doppler Cardiac Vascular Ultrasound EquipmentNegotiableMOQ: 1 Set
Specifications
1. Diagnostic System Color Doppler Ultrasound machine2.3D/4D
3.Panoramic Imaging
4.Compound Imaging
5.ISO CE

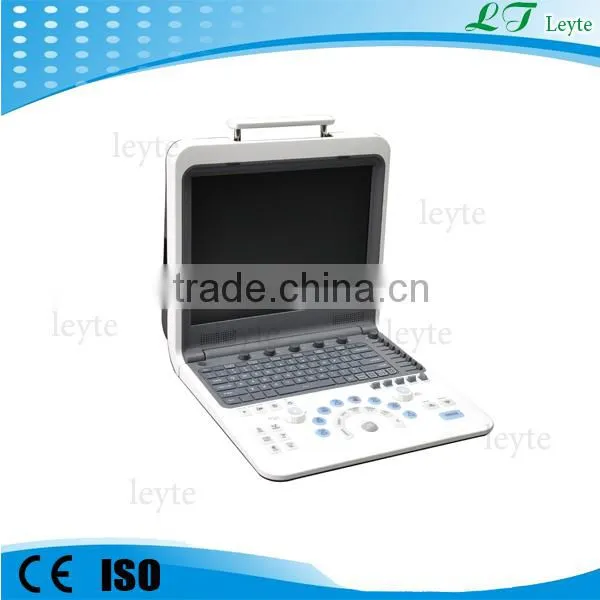

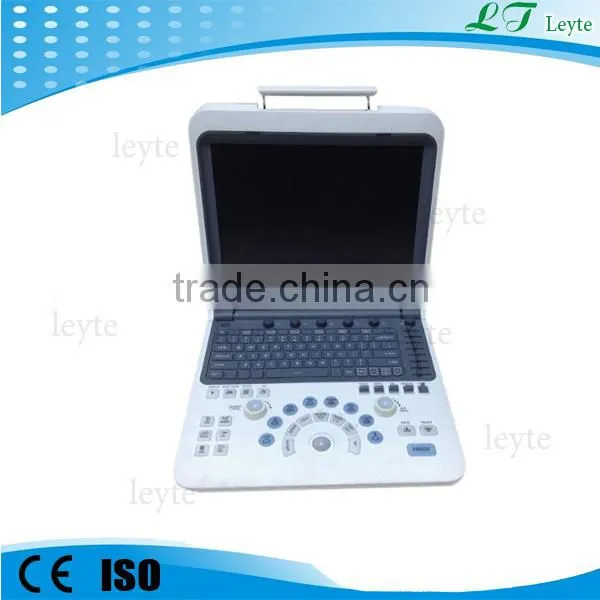

LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine
CE available
An excellent HCU (Hand Carried Ultrasound) System
LT-5100 is a High-end Color Doppler HCU (Hand-Carried Ultrasound). Based on Our leading digital ultrasound technology,
LT-1500 offers superb 2D and premier doppler imaging modes such as CFM, CW, PW, CDE, CCD, HPRF. This flagship HCU can meet strictest requirements from cardiologists and it provides powerful image and data management including 4D imaging.
Features & Advantages:
Multi-application: abdomen, cardiology, OB/GYN, small parts, peripheral vessels, urology, rectum, pediatric, orthopedic, intra-operative ultrasound, ultrasound guided biopsy.
Continuous high-precision DBF
THI (Tissue Harmonic Imaging)
TDI (Tissue Doppler Imaging)
Auto IMT
3D/4D
Panoramic Imaging
Parallel Scanning
Compound Imaging
Trapezoidal Imaging
PC Platform
Transducer: multi-frequency transducer series
Multi-language Interface: English, French, Spanish and Polish
Printing: all PC and video printers supported
ECG interface
Standard Configuration:
LT5100 main unit
15" high definition non-interlaced LCD monitor, special for medical imaging
Max. 3000-frames of Cine Loop
DICOM 3.0
Measurement & calculation software packages
Electronic convex array transducer: CA3.5MHz/R50 (2.0-6.0MHz)
Electronic linear array transducer: LA7.5MHz/L40 (5.0-10.0MHz)
4D volume transducer : CLA4.5MHz (2.5-6.5MHz)
Options:
Electronic linear array transducer: LA7.5MHz/L50 (5.0-10.0MHz)
Electronic linear array transducer: LA7.5MHz/L40 (6-14.0MHz)
Phased array transducer: PA2.5MHz (2.0-4.0MHz)
Electronic endocavity transducer: EV6.5MHz/R10 (5.0-9.0MHz
Electronic micro-convex array transducer: MC3.5MHz/R20 (2.0-6.0MHz)
Needle-guided brackets
Footswitch
Transducer Suitcase
Technical Specifications:
General Descriptions
Imaging mode: B
B/B
B+M
Steer M
Color M
CW
CFM
PW
PDI
CDE
CCD
HPRF
Gray scale: 256
Transducer frequency: 2.0 ~ 10MHz
Transducer connector: 2
Imaging Technology: Continuous High-precision Digital Beam-former
Dynamic Frequency Integration Imaging
High-precision Dynamic Receiving Focus
Super Wide-band Imaging Technology
Self-adaptive Image Optimization Processing
Multi-beam Imaging
Automatic Flow Volume Analysis
Compound Imaging
Panoramic Imaging
Self-adaptive Vascular Imaging
Self-adaptive Doppler Imaging
THI (Tissue Harmonic Imaging)
TDI (Tissue Doppler Imaging)
Image Processing
Pre-processing:8-segment TGC
gross gain
dynamic range
gray map
smooth
acoustic power adjustment
scanning angle selection
Post-processing: edge enhancement
frame correlation
line correlation
γ-correction
contrast
brightness
Measurement & Calculation
B-mode: distance, circumference, area, volume, angle, residual urine volume, histogram, profile
M-mode: distance, time, velocity, heart rate
D-mode: doppler blood flow measurement, velocity, acceleration, pressure gradient, time, VI, PI, RI, etc
Software packages:
Carotid: IMT (Intima-media thickness) measurement
GYN: uterus, endometrium, ovary, cervix, ovarian follicle
OB: GS, CRL, LV, BPD, OFD, HC, TAD, LVW, HW, TCD, IOD, OOD, BD, APTD, TTD, AC, APD, FTA, HL, ULNA, FL, FIB, CLAV, etc
Cardiac: EI Index, Editable Cardiac report, PISA, M. Simpson, B-EF,M-EF(Pombo,Gibson,Teichholz), Diameter Function, PV flow, AV-Area, B-LV/Ao,M-LV/Ao, MV Regurg, customized annotation etc
Urology: volume of prostate, volume of bladder, volume of urine, volume of trans zone, HipJ.Angle(hip joint dislocation in neo-natal and babies),slice v, etc
Small Parts and Peripheral Vessels: vascular cross-sectional area, heart rate, stroke volume, flow per unit time, Ejection Time, % stenosis, mean velocity of flow, RI, PI, etc.
NOTE: specifications subject to change without prior notice.
Who we are ?
Our Leyte Electronic Co., Limited is a leading exporter and supply chain service provider of LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine with more than 6 years’ experience.
Our main products include X-ray machine, B ultrasound scanners, ECG, patient monitor, ICU equipment, Lab equipment, and other related medical disposables.
We have exported LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Where are our customers?
We have sold LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine to more than 50 countries ,like The Democratic Republic of Congo, Saudi Arabia, Nigeria, Zambia, Angola, Egypt, Kenya, Ghana, Paraguay, Nepal and Myanmar and so on.
we like to show some of our Customers as below :
Trade Term
1. This offer is valid with 30 days.
2. Delivery time: In 10 days after receive the payment
3. Item of payment: T/T ,LC,Western Union ,Escrow ,Paypal total payment before delivery
4. Carton box
Delivery detail:
1.We ship goods by UPS/DHL/FEDEX/TNT express which is door to door ,you no need go out can get LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine ,takes 3~ 5 days to arrive;
2.We can also help you ship LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine by air cargo which you need to go to Air port to take LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine home ,it takes about 2-7 days to arrive ;
3.If goods are large quantity and you not need LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine urgently ,you can choose by sea to save some freight cost which takes about one month to arrive .
No matter what delivery way ,depending on your actual requirements.
Our services:
1. For all your inquires about us or our LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine , we will reply you in detail within 24 hours 2. We own well-tranied and passional sales & after- sale services who can speak fluent Engligh language
3. We offer OEM services. Can print your own logo on LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine can customize the retail box packing and other things.
4. We have very experienced engineers ,can help you better use LT5100 Full-digital Portable Diagnostic System Color Doppler Ultrasound machine
