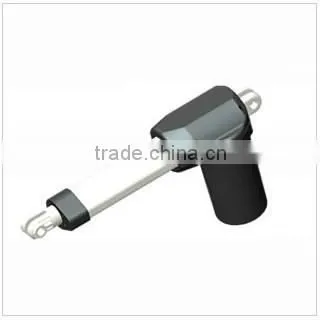

Help CenterHorizontal Sliding Electric Linear Actuator for Home Application
Related Products
-
Linear Actuator, Motor for Hospital Bed and ANYWHERE BedUS$ 40.2 - 44.8MOQ: 1 Piece -
Linear Actuator-Electric Multi-functional Lifter- Motor for Leisure Sofa/Foot Bath SofaUS$ 18.2 - 44MOQ: 1 Piece
-
Window Linear Actuator, Window Electric Actuators, Window Opener-H50US$ 17.5 - 43.3MOQ: 1 Piece
-
Car Air Compressor 12V Portable Air Compressor Mini Tire Inflator Tire Inflation-TX-15012US$ 1.00 - 1.00MOQ: 100 Acres
-
Customization Supported 12v 24v Mini 50mm Stroke Waterproof Electric Linear Actuator-L50mmUS$ 17.5 - 43.3MOQ: 1 Piece
Technical parameters
--Drive type: DC motor
--Load form:Push/pull
--Thrust force:750N~8000N
--Pulling force:750N~6000N
--Max. install dimension: X +157 mm (Option)
--Stroke: 20mm~500mm
-- Input voltage: AC 100~240V
-- Motor voltage: DC 24V
--Speed: 4mm/s~36mm/s
--Stroke limit: internal limit switch or the built-in highprecision
Work environment
--Temperature: -25~+40°
--Relative humidity: 20%~80%
--Altitude: not higher than 1000M
--Protection rank:IP44
--Intermittent operation: time interval≥2 minutes

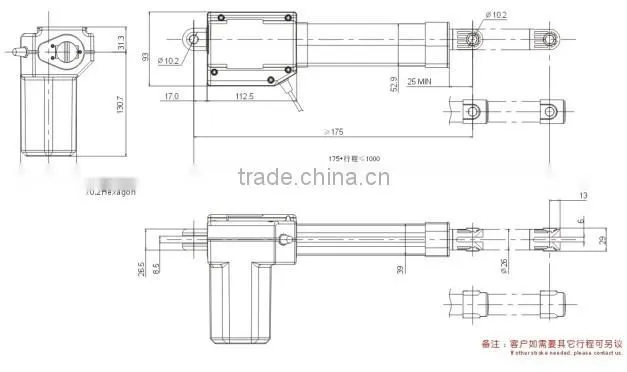

Install Dimension
Feature
Minitype, simple operation
Low voltage, low noise
Stable performance
Competitive price
Please send us your own parameters and request, we do customzied linear actuators.
Services
Make ODM and OEM orders.
Help to create drawing in free, do your own design and parameters, print your own brand.
Drawing software: AutoCAD, Pro-E, UG, Solid work, CATIA
Welcome sample order / test order / trial order.
Accept rush order, we have shift teams to guarantee 24 hours working.
Shipment
Ship by express (FedEx, DHL, UPS or TNT) for small order, use our account or your own account.
Ship by air or sea for large order. Our shipping agent will help with everything from Chinese port to your port.
Also you can arrange your own forwarder to handle with shipment.
Payment terms
Payment method: TT(bank transfer)
Payment terms: 30% deposit before production, the balance before shipment
Wide range of applications
Factory view
