New style 1550nm catv ftth optic receiver node in plsastic Shell
Product Description
OR18x style FTTH optical receiver is home-based optical receiver catering to the ultimate
Goal of development of optical access and suitable for FTTH (fiber to the home) optical fiber network users access to the end.
It adopts low optical power detector, GaAs and optical control AGC technique which meet to the demands of FTTH CATV receiving. They are many kinds of different function which has a little difference to meet low cost. OR18can bring user’s economic applicationdigital signal input 0~-10dBm. Its digital signal input power range 0~-15dBm.
Performance Characteristic
1.Advanced plastic house with good heat Dissipation
2. SC/APC or FC/APC optical connector, female or metric RF interface
3. Full-GaAs MMIC application with low noise. Digital signal is received -18dBm at lowest and analogy signal -9dBm at lowest.
4. with AGC control range( AGC range according to User's demands)
5. Low power consumption, high-efficiency switch power can make sure the high reliability and stability of power supply. Power consumption less than 2W. It adopts optical detecting circuit.
6. Multi-stage anti-thunder devices (TVS transient suppression diode), strictly anti-thunder system to ensure the safe operation of the equipment
7.Anti-high-frequency surge protection devices GaAs amplifier tubes
8.It can realize the power supply of input port feeding.
Technical Parameter
Technical Data |
OR17D OR17B OR18A OR18J |
Wave length |
1100nm ~1600 &1550nm |
Optical Input Power |
0dBm~-10dBm(Analogy Signal) & 0dBm~-10dBm & 0dBm~-10dBm & 0dBm~-10dBm & 0dBm~-22dBm(Digital Signal) 0dBm~-18dBm 0dBm~-18dBm 0dBm~-15dBm |
Optical Reverse loss |
>45dB |
Optical connector |
FC/APC&SC/APC FC/PC&SC/APC |
Bandwidth |
40~862&1000MHz |
Flatness |
±0.75dB@40~862MHz&1006MHz |
RF Output Range |
≥ 16dB@40~550MHz ≥ 14dB@550~860&1006MHz |
Gain Adjustable Range |
0~18dB |
Output Level |
>80dBuV(-7dBm test) >75dBuV(-7dBm test) >75dBuV(-7dBm test) >75dBuV(-7dBm test) |
Port Number |
1 1 1 1 |
Output Impedance |
75 Ω |
CNR(note3) |
≥51dB |
CTB(note3) |
≥65dB |
CSO(note3) |
≥62dB |
Equipment Voltage |
DC5V DC6V DC5V DC6V |
Power Adapter voltage |
AC220V |
Inner Feedback Voltage |
DC5V DC6V DC5V DC6V |
Working Temperature |
-25℃~+45℃ |
Power Consumption Net |
> 2W > 2W |
Size |
61*45*22mm 61*45*22mm 91*79*24mm 91*79*24mm |
Gross Weight |
1.26KG (10P) 1.26KG (10P) 1.20KG (10P) 1.20KG (10P) |
Note3: In the prescriptive link loss, 60PAL-D analog CHs, every 2MHz among 550MHz-750MHz/860MHz conveys digital modulated signals. Digital modulated signals level is 10dBm lower than analogy signal carrier when optical input power is -4dBm. Test result ranges from different optical receiver configuration and module. Details see equipment instruction.
Limited Index
Technical Data |
OR17D OR17B OR18A OR18J |
Max Input power |
+3dBm |
Min Input power |
-22dBm digital & -18dBm & digital -18dBm & digital -15dBm & digital -12dBm analogy -12dBm analogy -9dBm analogy -9dBm analogy |
Max Power Voltage |
DC+6V DC+7V DC+6V DC+7V |
Min Power Voltage |
DC+4V DC+5V DC+4V DC+5V |
Limited Working Temperature |
-30℃ ~+65℃ |
Max Inner Fed Voltage |
DC+6V DC+7V DC+6V DC+7V |
Max Passing Current (note1) |
1A@DC5V |
Limited Output Level(Note2) |
90dBuV |
Note1: Feed equipment with 5V interface can pass motherboard current
Note2: This index ranges from different module. Please see user manual
Product diagram

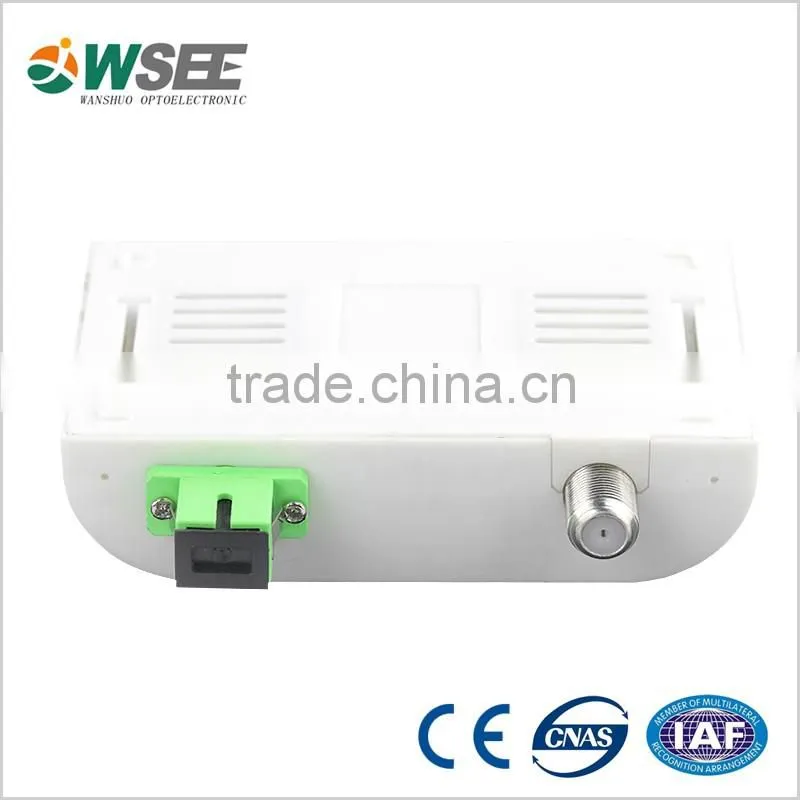

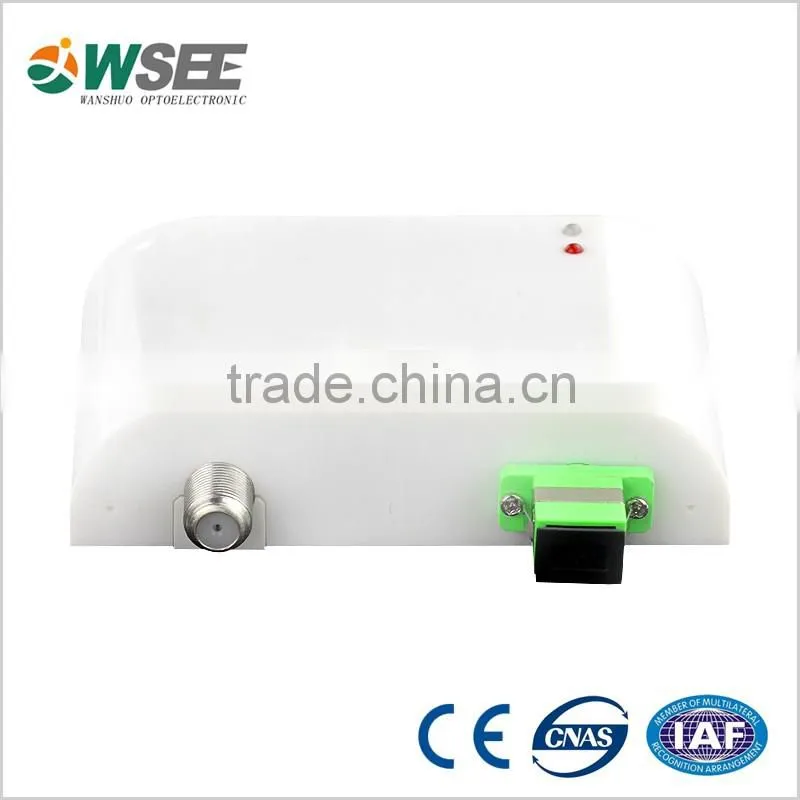

Product photo
Order guide

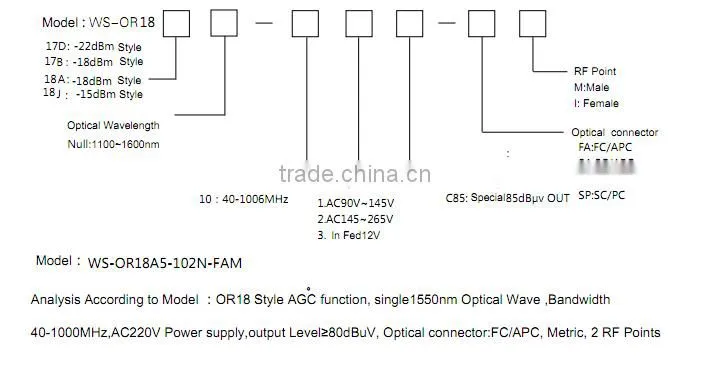

Optical Connector: SC/APC
F type: Female
Output number :one
AGC Range:+1~-7dBm
Power adaptor:American standard or European standard
