LCD12864 128X64 Dots Graphic Matrix LCD Display Module LCM Blue Backlight

Name: LCD12864 128X64 Dots Graphic Matrix LCD Display Module LCM Blue Backlight
Brand: GEREE
SKU: 118668679

US$ 6.5 - 7.5 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

GEREE

Model Number:

F085M

Shenzhen Geree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name GEREE

Model Number F085M

Type LCM

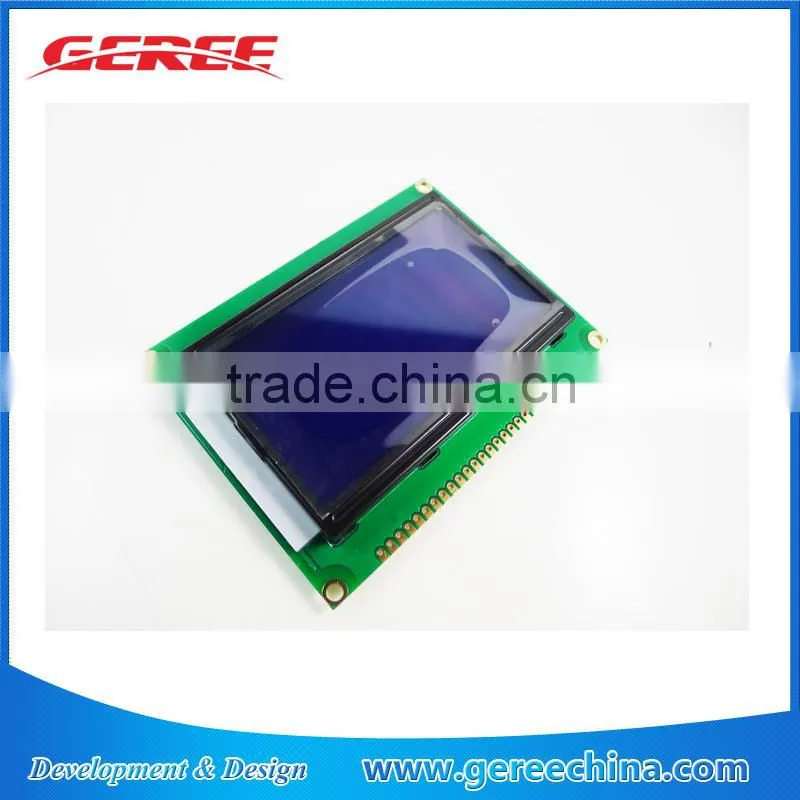

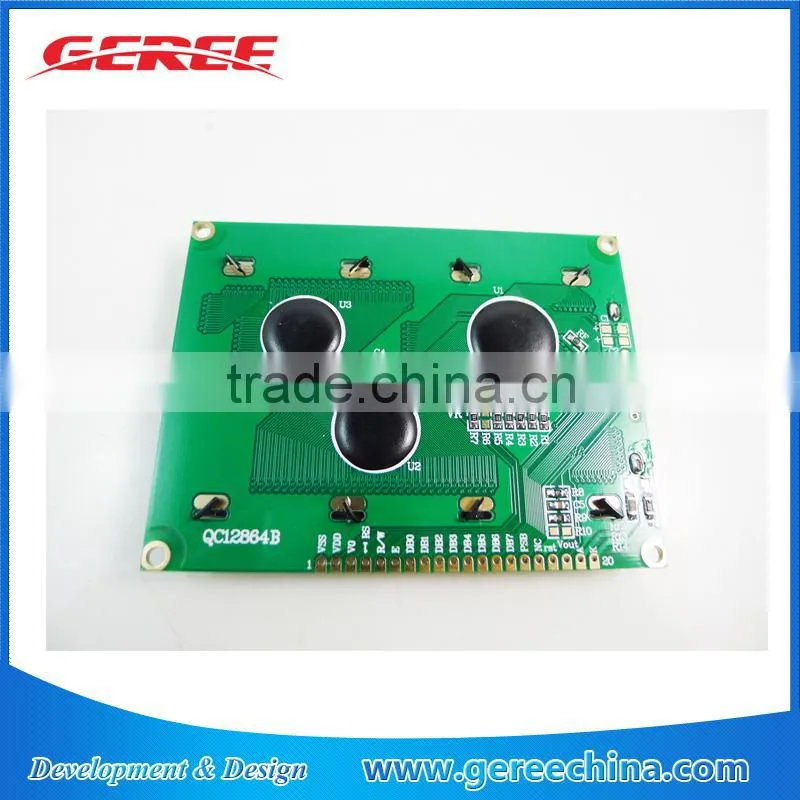

LCD12864 128X64 Dots Graphic Matrix LCD Display Module LCM Blue Backlight

Description:

The controller of this LCD is a ST7920

Parallel mode interface definition:

Pin number	definition	level	Function specification
1	VSS	0V	Power supply negative
2	VDD	+5V	Power supply positive
3	V0	-	Contrast control
4	RS	H/L	RS=H:shows data RS=L:controls instruction
5	R/W	H/L	R/W+H,E=H,data was read DB7-DB0 R/w=L,E=H=L:the data of DB7-DB0 was written to IR or DR
6	E	H/L	Enable pin
7-14	DB0-DB7	H/L	Data line
15	PSB	H/L	PSB=H,parallel mode,PSB=L,serial mode
16	NC	-	Empty pin
17	/RESET	H/L	Reset terminal,low level valid
18	Voult	-	Module drives voltage output terminal
19	A	+5V	Backlight power supply positive
20	K	0V	Backlight power supply negative

Serial module interface definition:

Pin number	definition	level	Function specification
1	VSS	0V	Power supply negative
2	VDD	+5V	Power supply positive
3	V0	-	Contrast control
4	CS	H/L	Chip selection terminal,high level valid
5	SID	H/L	Serial data input terminal
6	CLK	H/L	Serial synchronous clock
15	PSB	H/L	PSB=H,parallel mode,PSB=L,serial mode
17	/RESET	H/L	Reset terminal,low level valid
19	A	+5V	Backlight power supply positive
20	K	0V	Backlight power supply negative
