alluvial gold mining plant
Our Advantage :
1.Good quality raw material to make the machine strong enough,
2.Patent design and experienced worker to make the performance amazing,
3.Engineer do installment and guide in t he working place directly to make sure the gold machine will work well..
Our Company:
Weifang Heng An Radiator Group was founded in 1975. Now Heng An Group is a comprehensive production company, which produce radiator, cooling tower, ore mining machinery, sand dredger and other custom build machinery.
Our gold machine :
We are professional on supplying gold trommel ,gold sluice, shakin table and other kinds of trommel screen machine ,we exported to many countries .
Common Gold washing plant process :

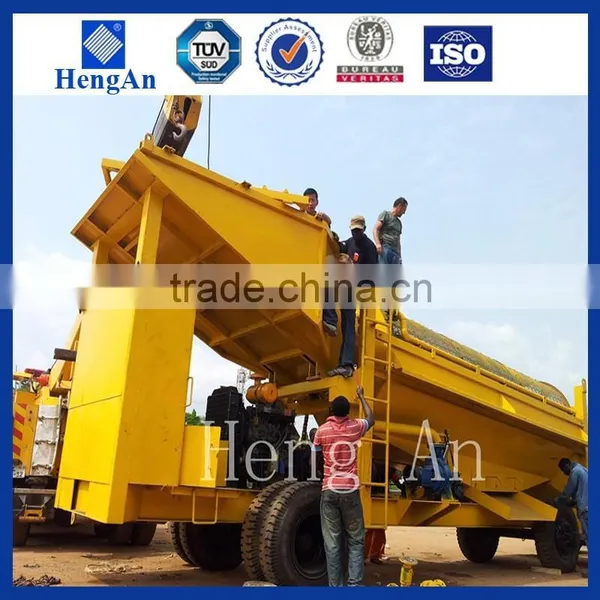

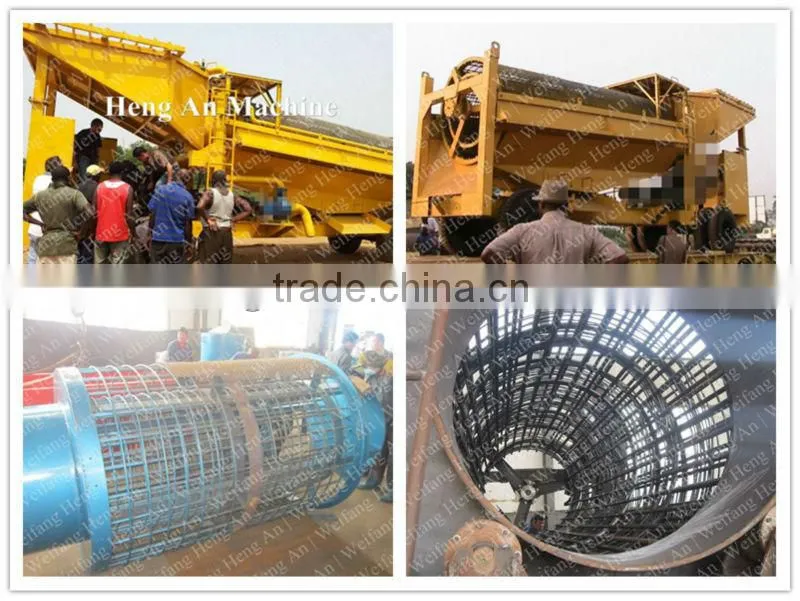

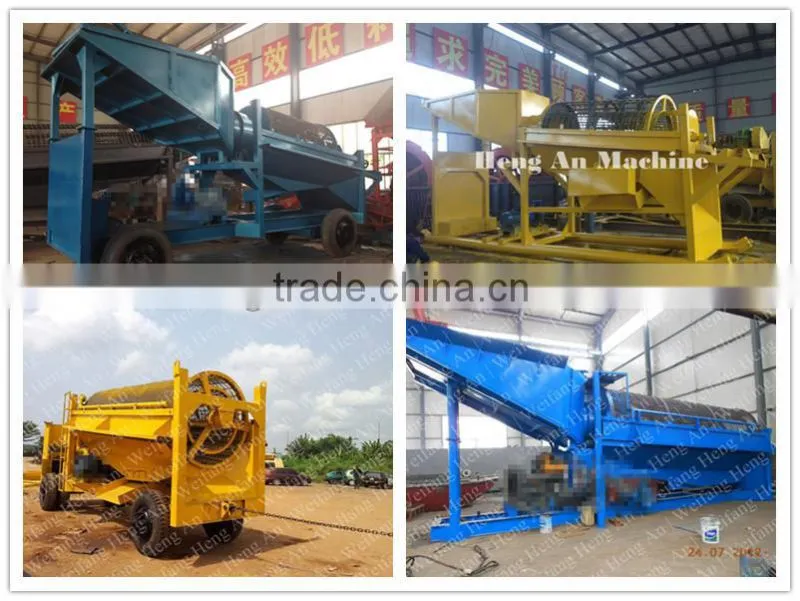

Gold trommel :
Main Parameter | |||
Model |
HATJ-50 |
HATJ-100 |
HATJ-200 |
Performance | |||
Dimension (mm) |
7000*2000*3000 |
7000*2200*3600 |
7800*3000*4000 |
Proccess Capacity (t/h) |
30-50 |
70-100 |
140-200 |
Main Power | |||
Diesel Generator |
24KW |
30KW |
40KW |
Trommel Screen | |||
Diameter*Length |
1000*3500mm |
1200*3500mm |
1200*4240mm |
Power |
5.5kw |
5.5kw |
7.5kw |
Feeder hopper | |||
Size (W*L) |
2000*2200mm |
2200*2500mm |
3000*2500mm |
Water system | |||
Pump Power |
7.5kw |
15kw |
22kw |
Water flow |
100m3/h |
140m3/h |
230m3/h |
Discharge pipe dia |
3 inch / 80mm |
4 inch / 100mm |
5 inch / 125mm |
Optional equipment | |||
|
Conveyor, sluice, concentrator, shaking talbe, jigs etc.
| |||
Clients Visiting
Installment in Ghana
Please also let me know :
1.What is your required working capacity ?
2.Whait is the diameter of your gold ?
Please feel free to contact me if you have any other problem
