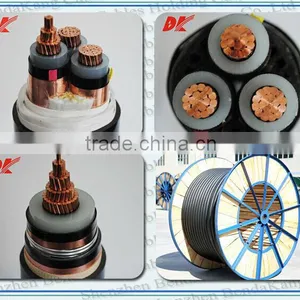

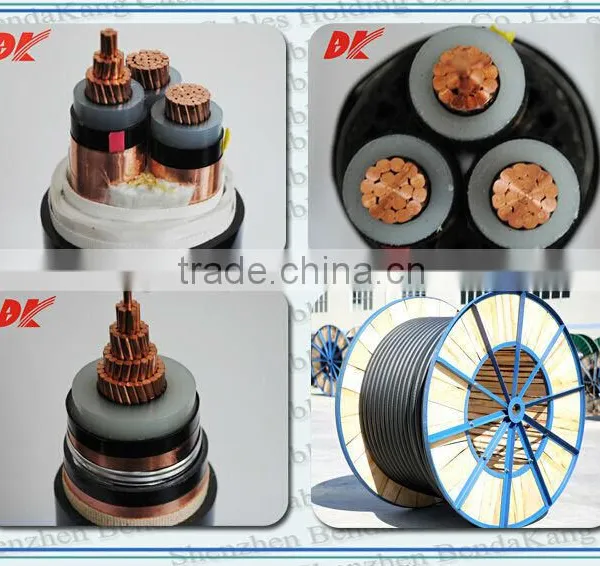

0.6/1kv cu pvc sta cable by IEC
It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1KV.For outdoor and insoor installation in damp and wet locations,laiddirectly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying,as well as in locations susceptible to sliding.
Standards: Generally to BS6500, VDE0250, IEC 60502, IEC 60754-1
Conductor: Class 2 flexible plain copper conductors to BS EN 60228:2005 (previously BS6360),
DIN VDE 0295:1995-06 or IEC 60228
Insulation:PVC
Sheath: PVC
Sheath Colour: as your request
Armour:steel wire armoured
Voltage Rating: 0.6/1KV
Temperature Rating:
Fixed: -35°C to +85°C
Flexing: -5°C to +85°C
Minimum Bending Radius: 10 x overall diameter
Core Identification:4 cores and above to include Green/Yellow, Coloured cores available.
For more information please consult a member of the Sales Team.
