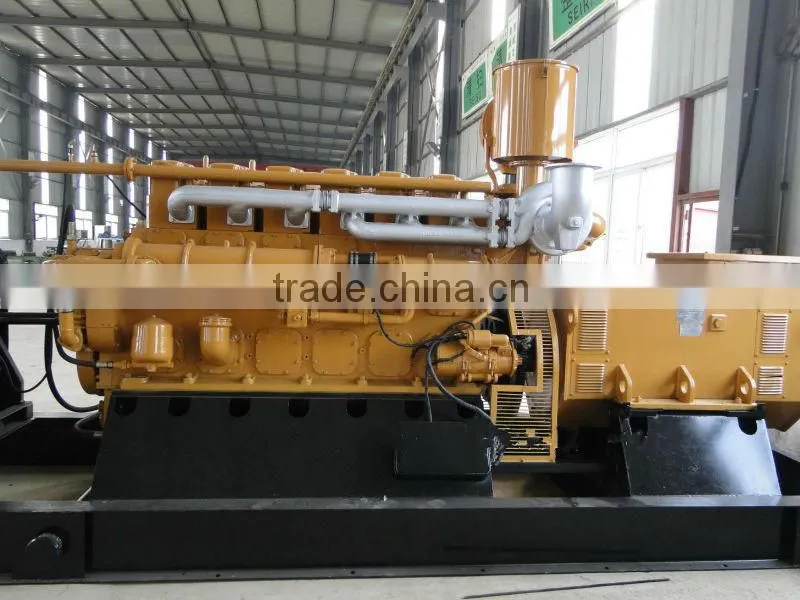

300kw Shale Gas Power Plant With CE and ISO

Name: 300kw Shale Gas Power Plant With CE and ISO
Brand: LVHUAN
SKU: 118750091

US$ 620,000 - 666,000 MOQ: 1 Set

Key Specifications

Place of Origin:

China

Brand Name:

LVHUAN

Model Number:

LHSG300

Shandong Lvhuan Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name LVHUAN

Model Number LHSG300

Output Type AC Three Phase

Speed 1000r/min

Frequency 50/60Hz

Rated Power 300kw

Rated Voltage 400/230v

Rated Current 546A .

Specifications

1, Supply the power 20-500KW
2. ISO9001-2008, ISO14001-2008, CE
3. Original manufacturer

300kw shale gas power plant with CE and ISO

Shale gas generator Set(300kw)
Model	LHSG300
Prime Power/Standby Power	240KW/300KW
Rated Speed	1000RPM
Rated Frequency	50Hz
Rated Voltage	400V/230V
Phase	AC 3-Phase, 4 wire
Voltage Stability	≤±2%
Voltage transient	≤±10%
Voltage Stable time	≤1s
Heat consumption	≤9.8mj/kw.h
Lubricant consumption	≤1.1g/kw.h
Engine Capacity	35.7 L
Cylinder Number	6
Cylinder Bore	190mm
Stroke	210mm
Starting System	DC 24V electric motor
Cooling method	water cooler
Lubricant method	Passive and flying lubricant
Ignition System	ALTRONIC
Mixer	IMPCO
Speed regulator(Auto)	YSD
Control Panel	SMARTGEN
Alternator	SIEMENS
Isolation class	H
Protection	IP23
Power Factor	0.8 lagging
Exciting method	brushless
Colour	your choice
Certificates	ISO 9001, ISO14001, CE
Warranty	1 year or 1000 running hours arrives first
Type	Open
Control system	Automatic alarm system
Size	6000x1970x2370mm
Weight	8200kg
Delivery time	20 days
