PDC Cutters:
PDC- Polycrystalline diamond compact is composed of polycrystalline diamond layer and tungsten carbide substrate, the polycrystalline diamond layer possesses extremely high hardness and abrasion resistance whereas the tungsten carbide substrate would greatly improve the malleability and weld ability of the whole composite, the polycrystalline diamond compost is used oil well drilling petroleum, geology exploring, coalfield mining and mechanical industry.
Polycrystalline diamond compost (PDC) cutter inserts for drilling suitable for soft to hard geological terrane according to customers' demand we can offer polycrystalline diamond compact with claw structures and chamfer types whether or not grinding and polishing, we can supply PDC cutters with special shape by customers' order.
Polycrystalline diamond compact (PDC) cutter inserts for tools is suitable alloy non-metal and metal with high rigidity. According to the customers' demand, we can offer different shapes PDC cutters, such as flat face, convex face, helmet face, ridge face, half cut type is avalible. The height of diamond layer is different for different application.
PDC cutters for geological mining field drilling bits series are designed for markets in the pursuing of cost. This series PDC are mainly used for producing anchor-shank drill bits, which are equipped with sharp edge, fast footage, high effectiveness, stability, economical and practical advantages.
0808 Geological Mining Field PDC Cutters:
Name: Geological PDC cuttersSize: 0808
Diameter: 8.40mm +/- 0.03mm
Height: 8.0mm +/- 0.1mm
Diamond layer thickness: 1.4mm
Type: Flat face, Convex face, helmet face, ridge face, half cut type.
Application: coal field, mining field etc. geological PDC drill bits.
Wear resistance: about 26000
Impact resistance: 260J
Heat stability: Heat up 750° Celsius and keep warm 10mins.
Destructive test: Use 2kgs heavy hammer free fall one meter height to strike the diamond layer with ten times and no crack, qualified.
VTL turning test: VTL testing, the composite sheet from outside to inside - from the inside out turning average of 20PASSES.
Test methods strictly enforce People's Republic of China Machinery Industry Standard JB / T3235-1999.

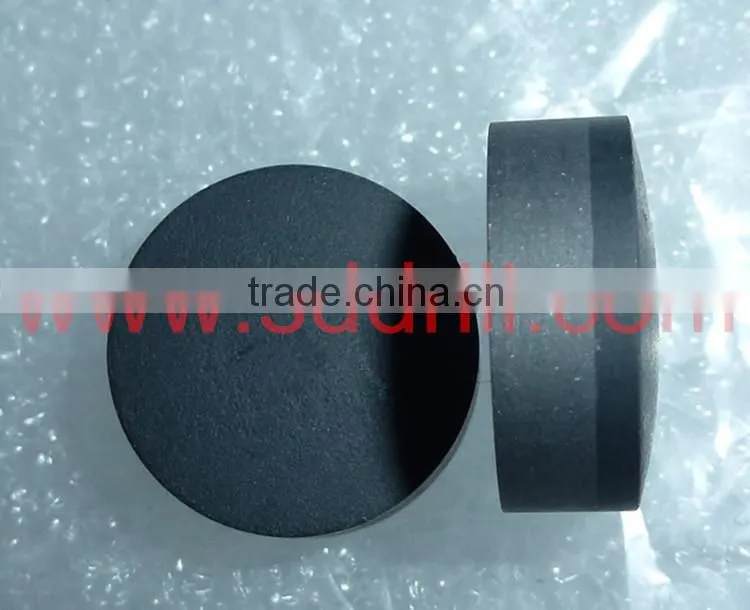

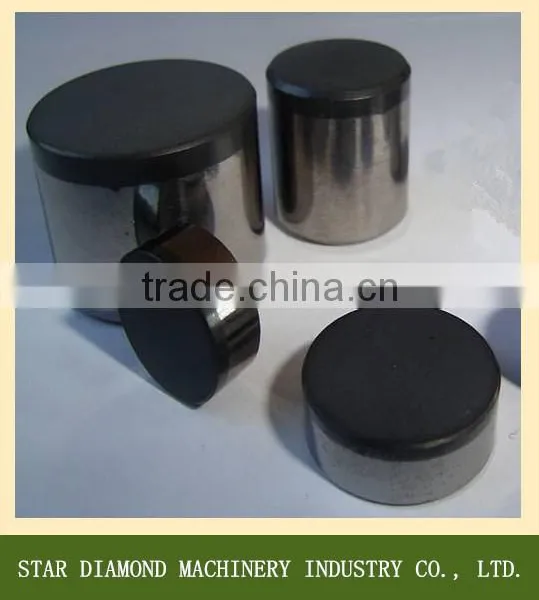

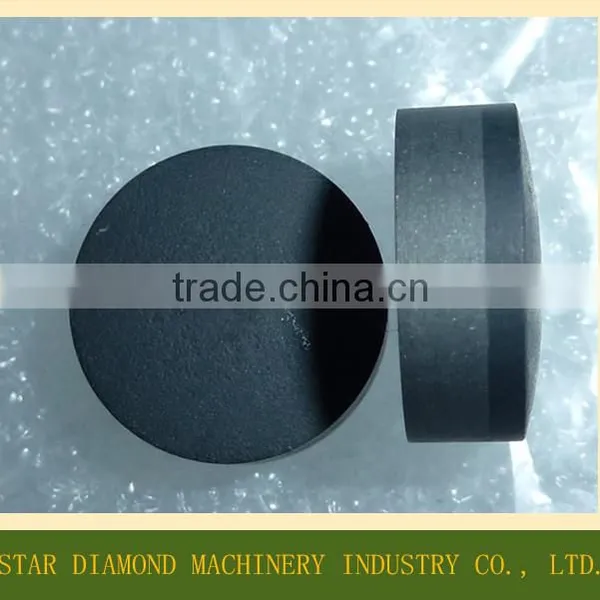

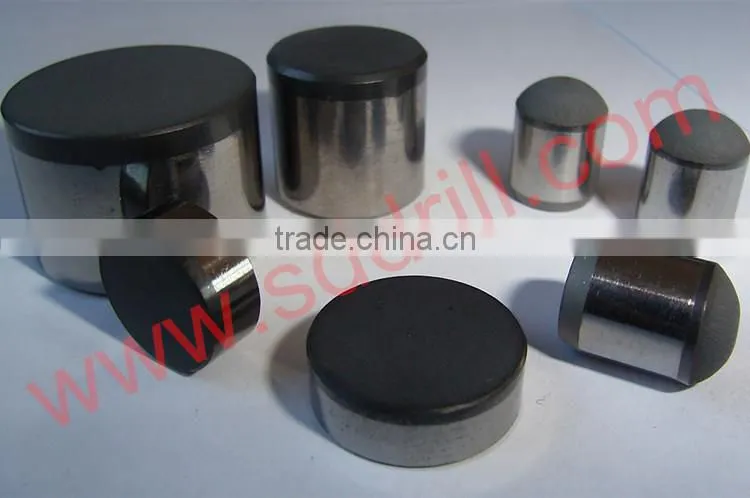

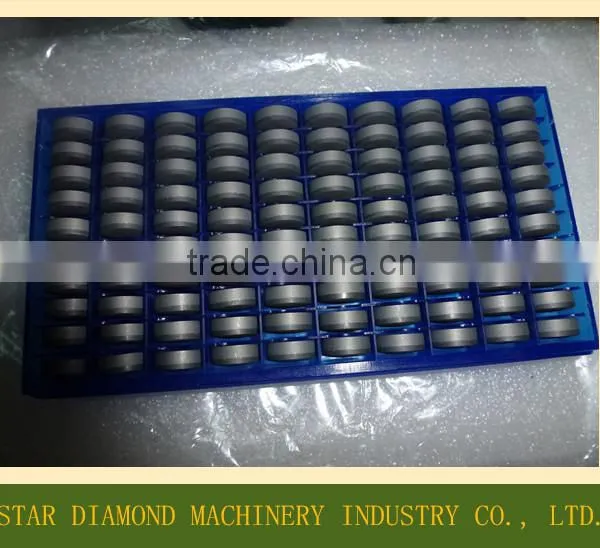

PDC Cutters Picture:

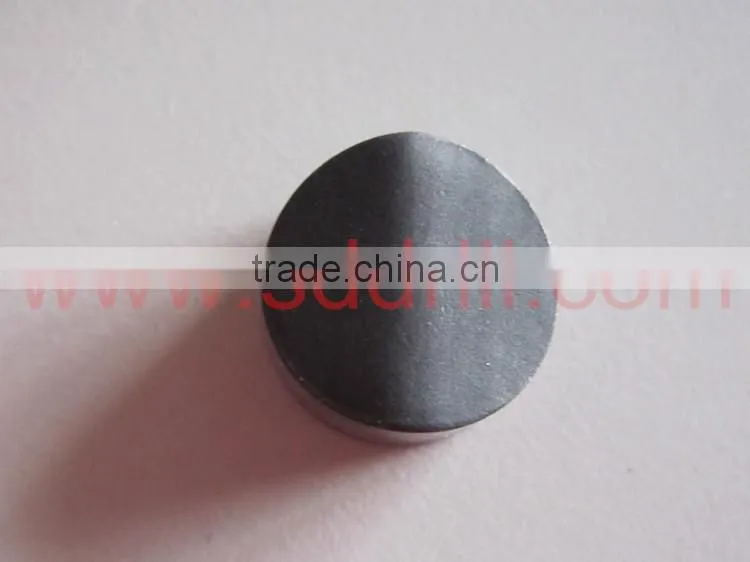

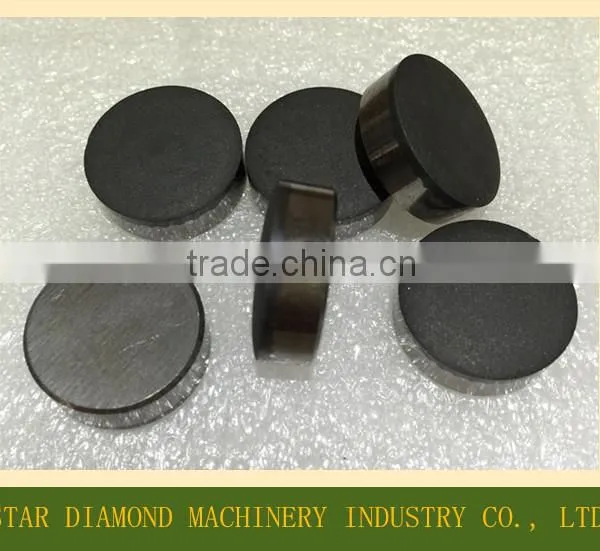

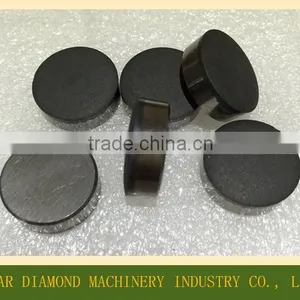

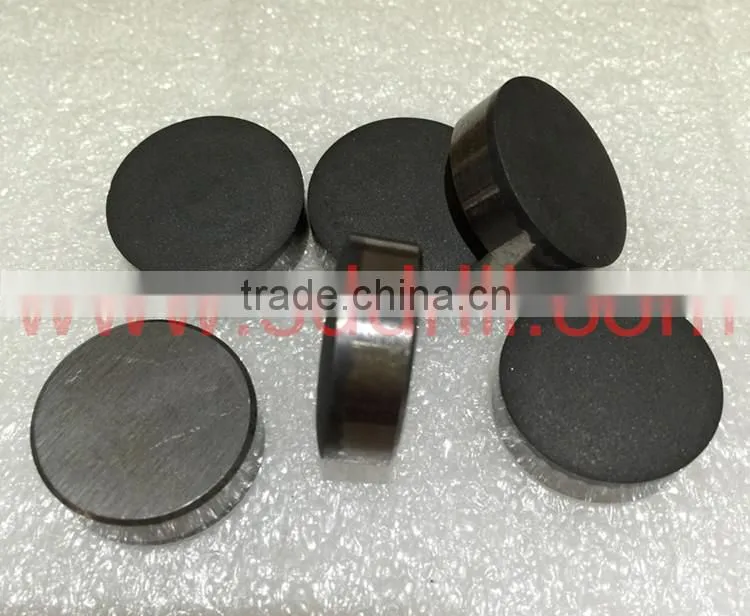

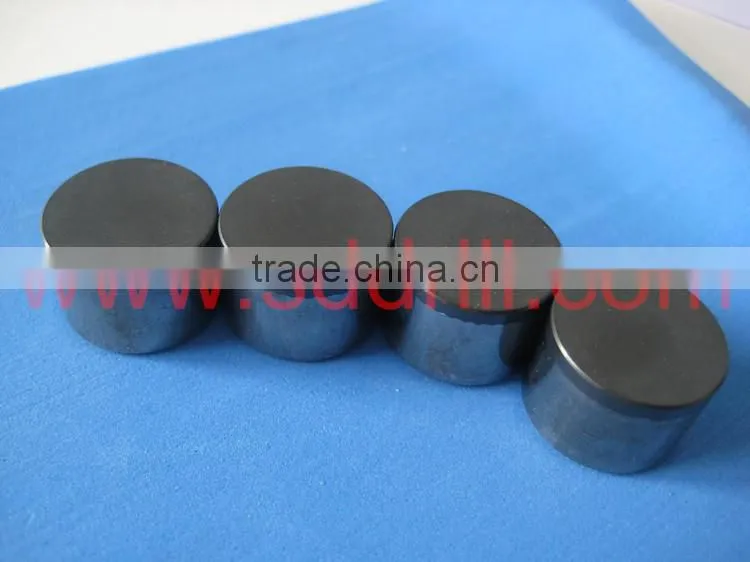

Flat Face:
Convex Face:

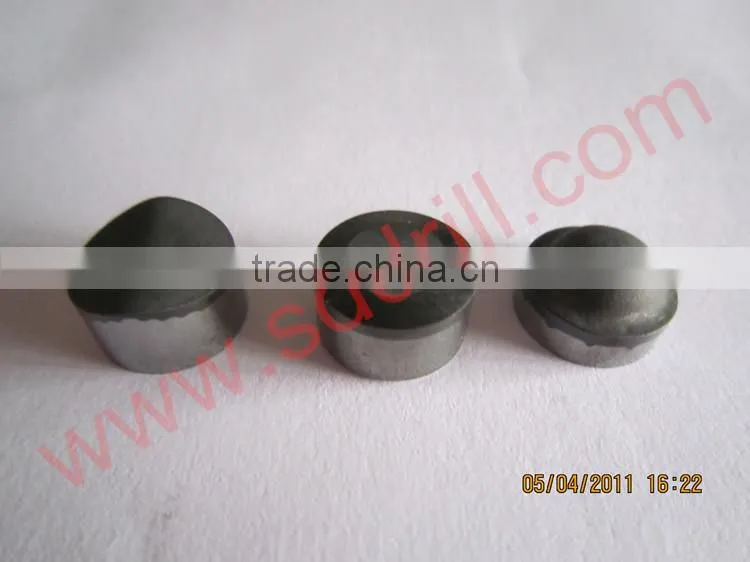

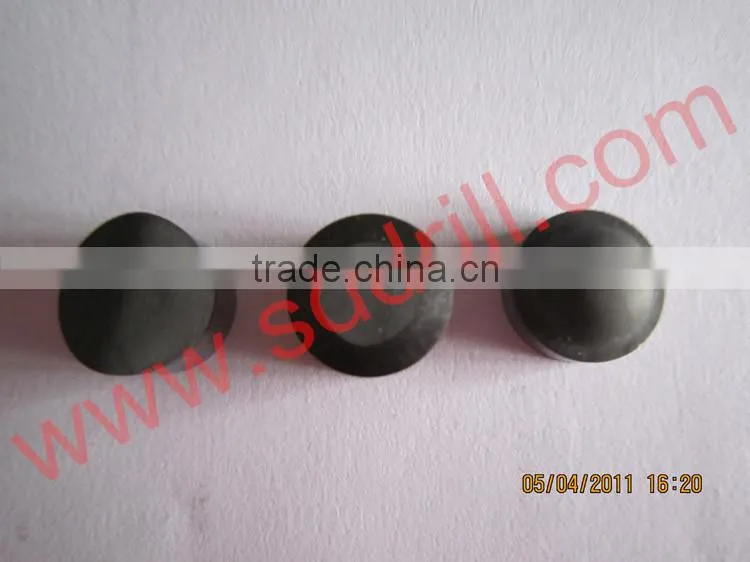

Helmet Face:

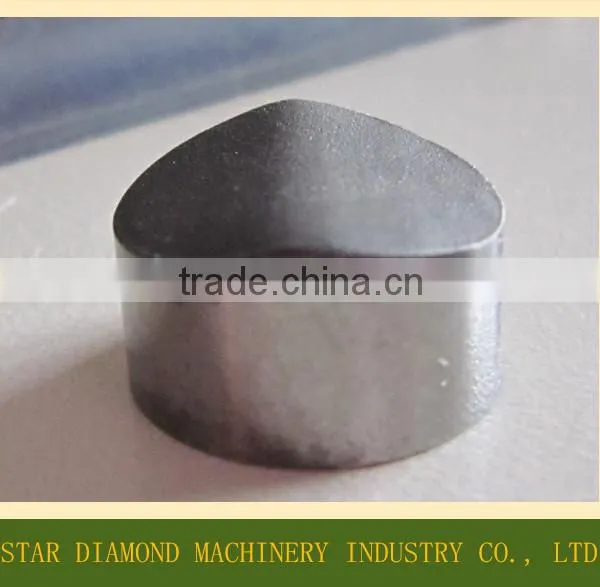

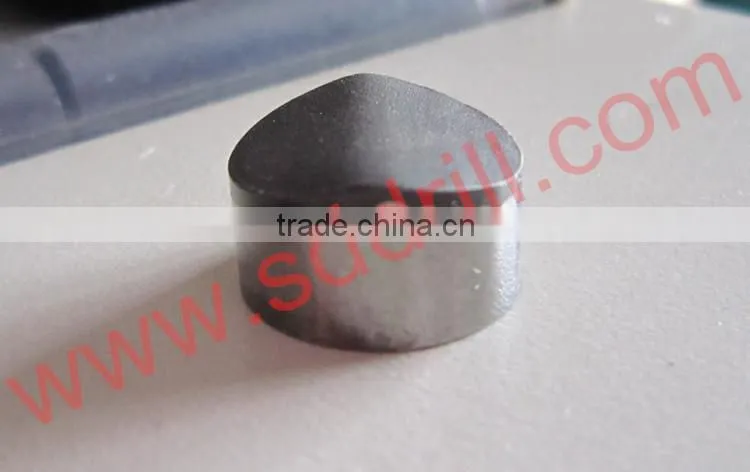

Ridge Face:

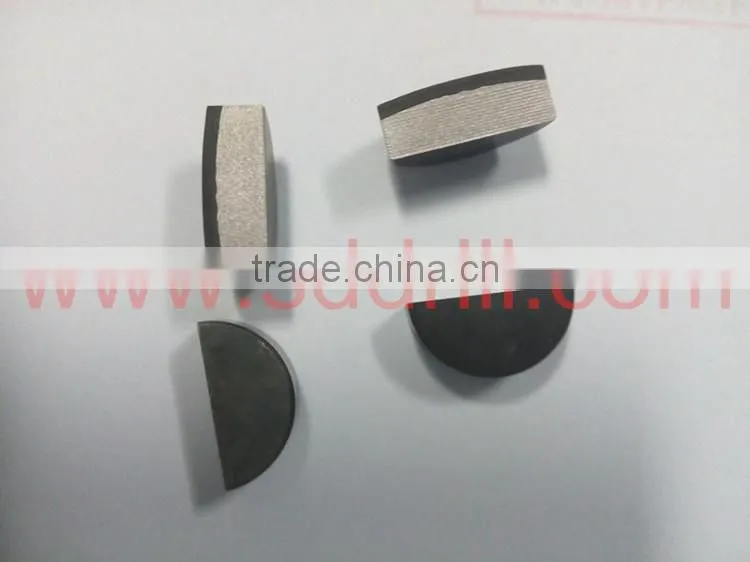

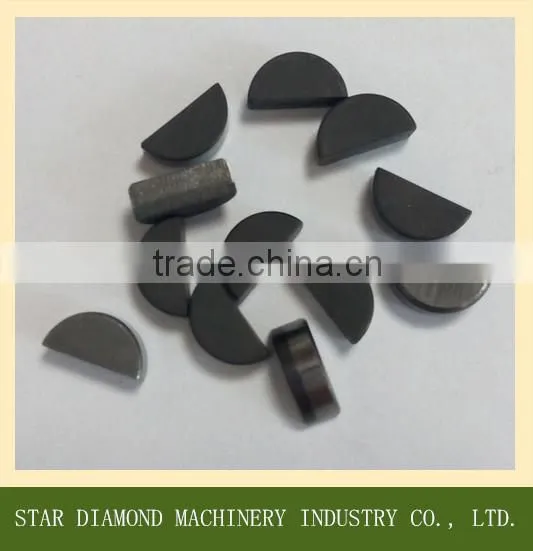

Half Cut Type:
Packaging & Shipping:

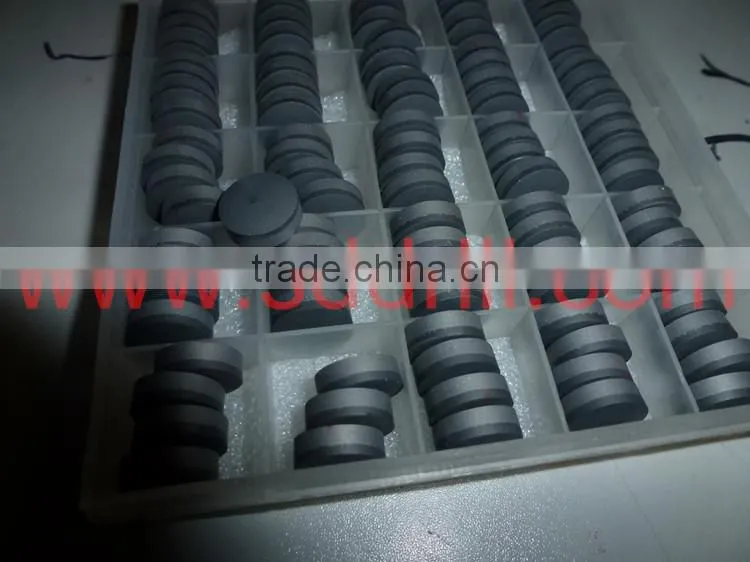

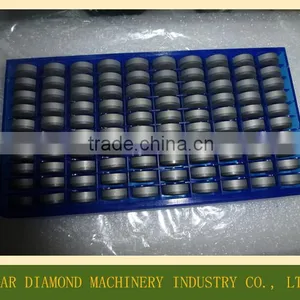

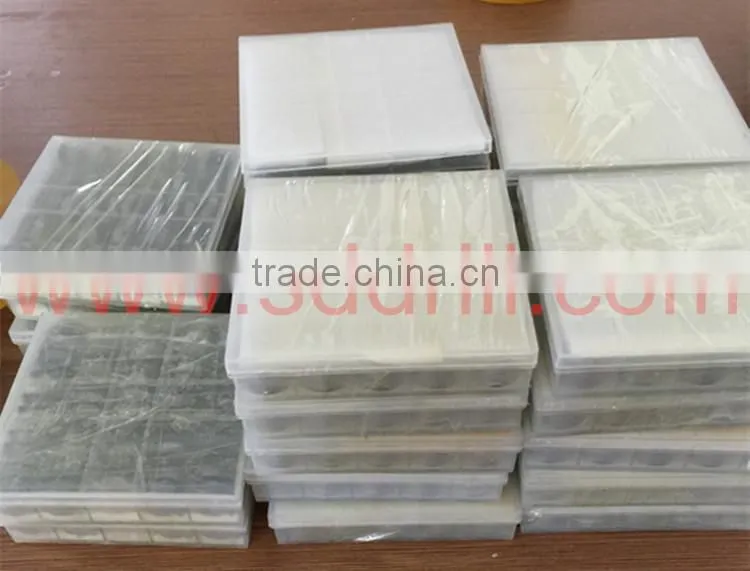

Packaging: Gauge sponge in plastic box, In carton.
Shipping: Less than 100pcs by express (DHL, UPS, TNT, FedEx, EMS) or by your choose.
More than 500pcs by Air or by your choose.
Payment:
Our Services:
Quality control system.
After-sale service.
Brand new & not used.
Product drawing and design.
24 hours service.
FAQ:
Q: What's your delivery time?
A: Commonly produce need 7 days to produce. Within 2 days if in stock.
Q: What methods of payment are accepted?
A: We agree T/T, L/C, West Union, One touch, Money Gram, Alipay, Paypal.
Q: What about the shipment?
A: Based on order quantity. We can send it to you by Express or by Air. Or send the goods to your chinese agent.
Q: How to control the quality?
A: We should be checking & testing everyone PDC cutter before shipment.
Q: Do you agree sample order?
A: Yes, we are welcome your sample order to testing our quality.
Q: Do you have after-sale service and warranty service?
A: Any quality or quantity problem once confirmed, we will be compensate you the same. Any question or problem we will be reply you within 24 hours.
Q: Can i trust your company?
A: Our company has been certificated by chinese government, and verified by Alibaba Trade Assurance, 100% refund of the Trade Assurance Amount. Alibaba can guarantee all of your payment, Just order from US!!!
