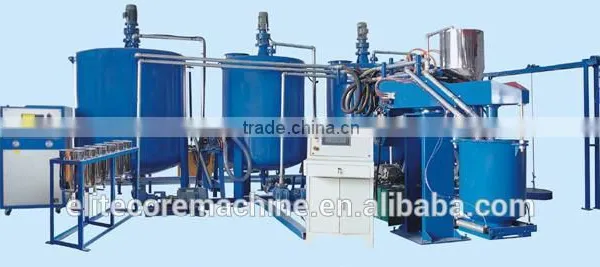

Semi-Auto Batch Sponge Foaming Machine/Spongeing Machine/Batch foaming machine ECMT-131B
Batch Foaming :
Foam/Sponge producing machine with pneumatic motion, which can be used with Rectangular, Cubic and Cylindrical Molds. The speed of the Mixer can be controlled electronically from control panel. The small Raw-Materials are put in to the Tank manually. Its products used in Bed, Furniture and all kind Sponge Producing Factories.
SPECIFICATION:
|
Mixing Tank Capacity:
|
180L
|
|
Mixer Total Power:
|
11KW |
|
Mixing Speed:
|
2800r~4200r/min
|
|
Save Formular Q.T.Y.:
|
100 Groups.
|
|
Control System:
|
PLC Touch Screen Control System
|
|
PPG Tank:
|
3Ton*1Set.
|
|
POP Tank:
|
3Ton*1Set.
|
|
TDI Tank:
|
2Ton*1Set.
|
|
MC Tank:
|
1Ton*1Set.
|
|
Air Valves:
|
Euro Standard
|
|
Auto Loading Pumps For PPG,POP,TDI,MC:
|
4Sets(“Line”Brand Made In China)
|
|
Transducers:
|
4Sets
|
|
Chiller(Both Cooling & Heating System):
|
1Set*10HP(Made In TaiWan)
|
|
Oil Hydraulic System:
|
1Set
|
|
Air Compressor:
|
1Set*7.5KW
|
|
Electric Float Top System:
|
1Set(Electric)
|
|
Auto Cleaning System:
|
1Set
|
|
Air Filtering System:
|
1Set.
|
|
Water Tower:
|
1Set
|
|
Water Pump:
|
1Set.
|
|
Foaming Density Range:
|
8~70kg/Cubicmeter.
|
|
Outputs:
|
96 Blocks/per day/8hrs(480m3/day)
|
|
Match With One Square Mould:
|
L2100mm*W2100mm*H1300mm(To Be Requested)
|
|
Match With One Cylinder Mould:
|
Dia1800mm*H2200mm(To Be Requested)
|
|
Total Motor Power:
|
Approx 35KW.
|
|
Machine N.W.:
|
Approx 6Ton
|
|
Floor Space Required:
|
L10m*W10m*H6m.
|
Packing: Wooden Box or Hard Paper Film Packing
Shipping: By sea, by air, by express (DHL, UPS, EMS Fedex etc)
1. Your inquiry for our products will be replied in 24 hours,
2. Well-trained and experienced employers to answer all your question.
3. Protection of your sales area ideas of design and all your private information.
The EliteCore Machinery Manufacturing Co.,Ltd is one of the China main professional manufacturer of polyurethane foam machines,especially foam making machines,foam cutting machines,3D CNC foam contour cutting machines are gained a lot of reputation from all over the world. As an outstanding manufacturer of China polyurethane foam Machinery Industry,EliteCore Designs Machinery From Standard Models To High-Tech 3D CNC machines.Whenever you are looking for high quality foam machines,EliteCore is truly your only one choice from China.EliteCore always your reliable partner.
