Specifications
horizontal foam cutting machine1.Knife & Wire Can choose
2.High Precision Cutting
3.Fully Automatic Control
4.PLC

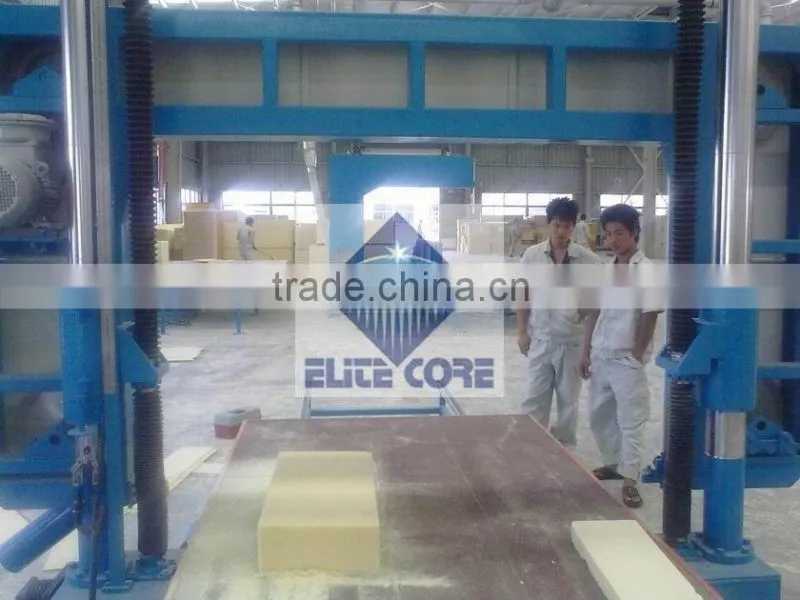

horizontal foam cutting machine
Automatic Phenolic Foam Cutting Machine which is specializing for cutting Phenolic foam blocks and Rigid Foam Blocks, The cut off foam slice is need of being taken away from working table after each cutting. the cutting angle of the knife guidance can be adjusted from 0º to 5º.
ECMT-138B |
ECMT-138 |
||
|
Cutting Foam Size:
|
W1650mm*L2000mm |
Cutting Foam Size:
|
W2150mm*L3000mm |
|
Cutting Foam Height:
|
H1200mm |
Cutting Foam Height:
|
H1200mm |
|
Cutting Thickness:
|
5mm Up
|
Cutting Thickness:
|
5mm Up
|
|
Cutting Speed:
|
0~15m/min(Adjustable)
|
Cutting Speed:
|
0~15m/min(Adjustable)
|
|
Blade Length:
|
L6900mm*W30mm*T0.45 |
Blade Length:
|
L8500mm*W30mm*T0.45 |
|
Cutting Type:
|
Automatic+Press Roller+ Dust Clean System
|
Cutting Type:
|
Automatic+Press Roller+ Dust Clean System
|
|
Blade Tension System:
|
Choose Available
|
Blade Tension System:
|
Choose Available
|
|
Machine N.W:
|
2000kg |
Machine N.W:
|
2200kg |
|
Total Motor Power:
|
9.74kw |
Total Motor Power:
|
11.74kw |
|
Floor Space:
|
L5800mm*W3700mm*H2400mm |
Floor Space:
|
L7800mm*W4500mm*H2400mm |
