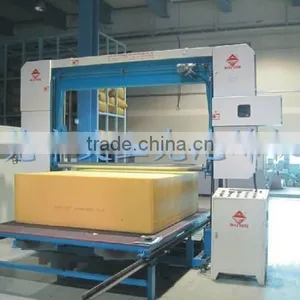

ECMT-104b 105b vacuum system foam cutting machine
Parameters:
ECMT-104b |
ECMT-105b |
||
Cutting Foam Size: |
W1650mm*L2000mm |
Cutting Foam Size: |
W2150mm*L3000mm |
Cutting Foam Height: |
H1200mm |
Cutting Foam Height: |
H1200mm |
Cutting Thickness: |
2mm Up |
Cutting Thickness: |
2mm Up |
Cutting Speed: |
0~50m/min(Adjustable) |
Cutting Speed: |
0~50m/min(Adjustable) |
Blade Length: |
L9060mm*W30mm*T0.45mm |
Blade Length: |
L10160mm*W30mm*T0.45mm |
Cutting Type: |
Automatic & With Press- Roller |
Cutting Type: |
Automatic & With Press- Roller |
Blade Tension System: |
Choose Available |
Blade Tension System: |
Choose Available |
Machine N.W.: |
2100kg |
Machine N.W: |
2300kg |
Total Motor Power: |
15.32kw |
Total Motor Power: |
15.32kw |
Floor Space: |
L5800mm*W3600mm*H2400mm |
Floor Space: |
L7800mm*W4500mm*H2400mm |
Main Usage:
The Automatic Horizontal Cutting Machine ECMT-104b/105b is a Fully Automatic machine for cutting and stacking of flexible foam and open-celled P.V.C. foam. The cut off foam slice is no need of being taken away from working table after each cutting. Depending upon cutting thickness and foam density, This machine matched with Press-Roller which is good for High Thickness Sheets Cutting for Foam Mattress use,the cutting angle of the knife guidance can be adjusted from 0º to 5º
Application :
Foam industry ;sponge industry ;furniture industry ;sofe factory ;furniture factory.shoes factory .

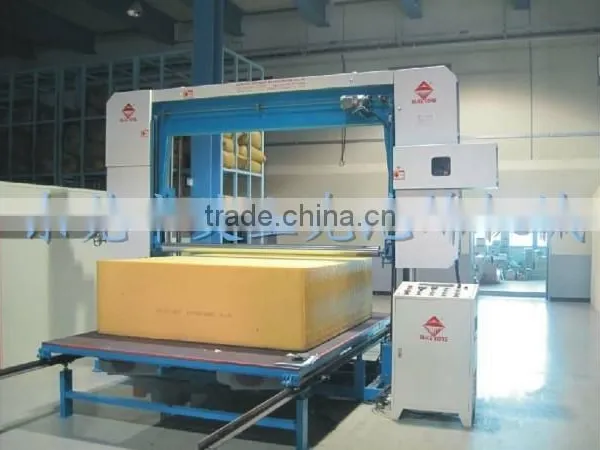

Images :
Package: Wooden Box & Hard Paper Film Packing
Shiping: by sea & by air &by express(DHL,UPS,EMS,Fedex etc)
1. Your inquiry for our products will be replied in 24 hours
2. Well-trained and experienced employers to answer all your questions
3. Protection of your sales area, ideas of design and all your private information.
EliteCore Machinery Manufacturing Co.Ltd is one of professimal manufacturers with design,manufacture and sales polyurathane foam machinery. Our products are exported to more than one hundred countries such as: America ,Europe and Southeast Asia, especially we sold dozens of Fully Automatic Continuous Foaming Machine to Romania, Argentina, Croatia, UAE, Jordan,Nigeria,Turkey,Egypt,Zambia,Dubai,Greece,Saudi Arabia, Brazil, Uzbekistan,
India, Korea, South Africa etc !
Our Mission is to Deliver the Right Product at the Right Price at the Right Time,With Our Genuinely Service to Get Your Money’s Worth.
Exhibition :
Other products:
Semi-Auto batch foaming machine .
Fully -automatic continous foaming machine .
