Home > Construction & Decoration > Pipe Fittings > Tee > Sucker Rod Couplings,Sub-couplings,Polished Rod Connections
Sucker Rod Couplings,Sub-couplings,Polished Rod Connections
US$ 1.31 - 2.45
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Material:
Carbon Steel
Technics:
Other, compressed thread
Type:
Coupling
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN XINGANG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Material
Carbon Steel
Technics
Other, compressed thread
Type
Coupling
Place of Origin
Inner Mongolia, China
Model Number
5/8",3/4",7/8",1"(full size and slim hole)
Brand Name
LD
Connection
Female
Shape
Other, two sorts:equal and reducing
Head Code
Other
Sucker rod couplings ,Sub-couplings and Polished rod connections
Our Advantages:
1 API Certificate
2 R&D Ability
3 100% Inspection
4 0 Defect
5 Five years' exporting experience
Technical Parameters
Full Size Coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Length of Wrench Square (mm) |
Hardness(HRA) |
| 5/8" | 38.10 | 101.6 | 15/16" | 31.8 | 56-62 |
| 3/4" | 41.28 | 1-1/16" | |||
| 7/8" | 46.00 | 1-3/16" | |||
| 1" | 55.60 | 1-3/8" | 38.1 | ||
| 1-1/8" | 60.33 | 114.3 | 1-9/16" |
Slim Hole Coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Length of Wrench Square (mm) |
Hardness(HRA) |
| 5/8" | 31.75 | 101.6 | 15/16" | 31.8 | 56-62 |
| 3/4" | 38.10 | 1-1/16" | |||
| 7/8" | 41.30 | 1-3/16" | |||
| 1" | 50.80 | 1-3/8" | 38.1 |
Full Size Sub-coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Small End Thread D. | Big End Thread D. | Hardness(HRA) |
| 5/8"-3/4" | 41.28 | 101.6 | 15/16" | 1-1/16" | 56-62 |
| 3/4"-7/8" | 46.00 | 1-1/16" | 1-3/16" | ||
| 7/8"-1" | 55.60 | 114.3 | 1-3/16" | 1-3/8" | |
| 1"-1-1/8" | 60.33 | 127.0 | 1-3/8" | 1-9/16" |
Slim Hole Sub-coupling
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Small End Thread D. | Big End Thread D. | Hardness(HRA) |
| 5/8"-3/4" | 38.10 | 101.6 | 15/16" | 1-1/16" | 56-62 |
| 3/4"-7/8" | 41.30 | 1-1/16" | 1-3/16" | ||
| 7/8"-1" | 50.80 | 114.3 | 1-3/16" | 1-3/8" |
Full Size Polished Connection
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Vanish Cone | Hardness(HRA) |
| 5/8" | 38.10 | 101.6 | 15/16" | 9O | 56-62 |
| 3/4" | 41.28 | 1-1/16" | |||
| 7/8" | 46.00 | 1-3/16" | |||
| 1" | 55.60 | 1-3/8" | |||
| 1-1/8" | 60.33 | 114.3 | 1-9/16" |
Slim Hole Polished Connection
| Size(in) | Coupling O.D W(mm) (+0.13,-0.25) |
Length L(mm) (+1.57,-0.00) |
Thread D.(in) | Vanish Cone | Hardness(HRA) |
| 5/8" | 31.75 | 101.6 | 15/16" | 9O | 56-62 |
| 3/4" | 38.10 | 1-1/16" | |||
| 7/8" | 41.30 | 1-3/16" | |||
| 1" | 50.80 | 1-3/8" |
Coupling Mechanical Properties
| Tensile Strength Rm(Mpa) | Yield Strength Rel(Mpa) | Elongation Percentage A(%) | Reduction Percentage of Area Z(%) |
| ≥655 | ≥405 | ≥16 | ≥48 |
Manufacturing Workshop of coupling

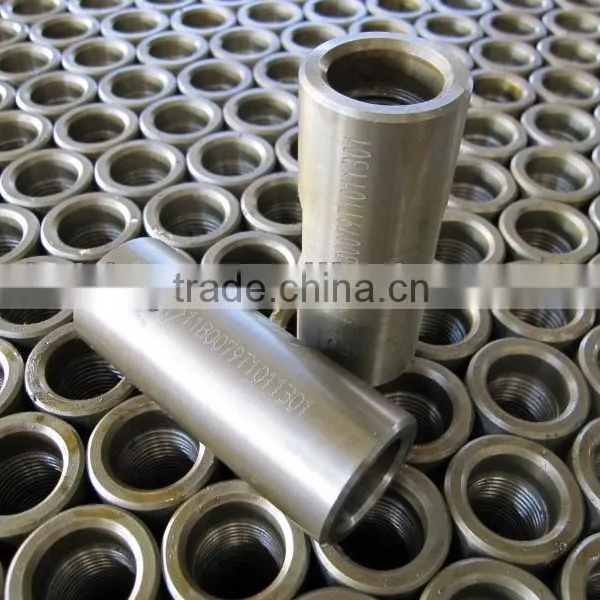

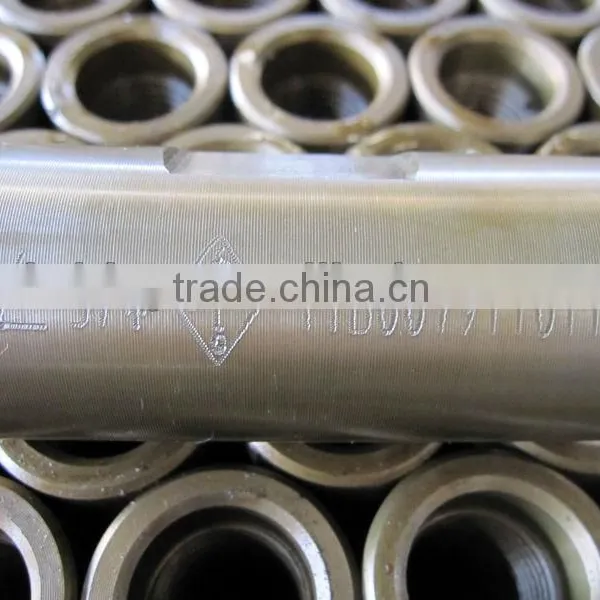

sucker rod coupling
Packaged into box
We are willing to cooperate with customers from places and countries all over the world, and it will be appreciated if you can provide us with precious suggestions.
