Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Extruder > 5Lmultilayer Bottle Blow Molding Machine

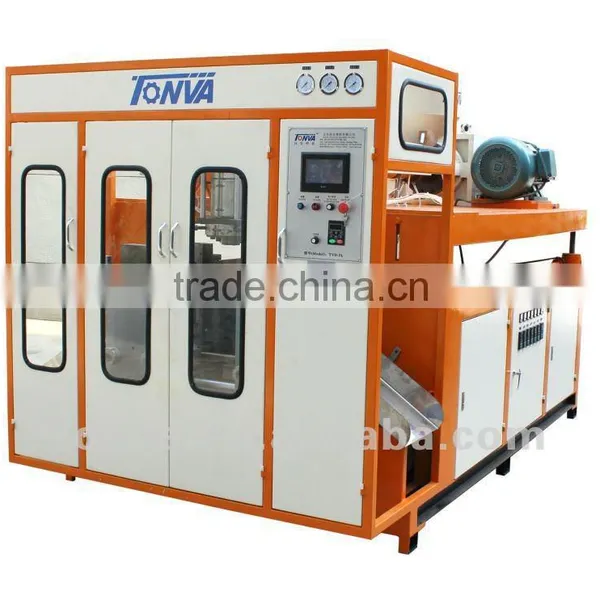

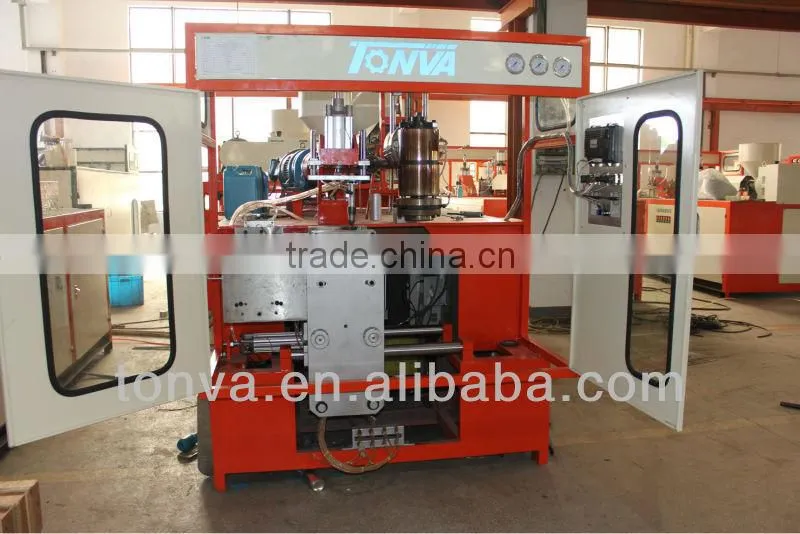

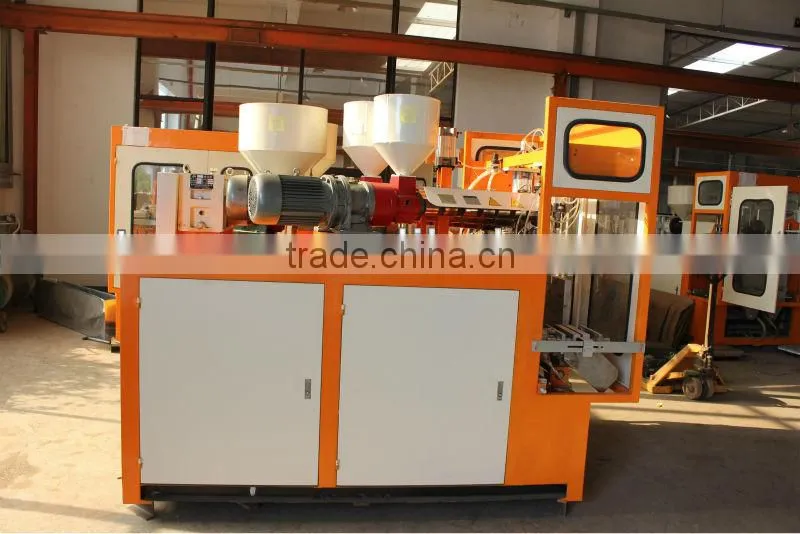

5Lmultilayer Bottle Blow Molding Machine

Name: 5Lmultilayer Bottle Blow Molding Machine
Brand: TONVA
SKU: 118810463

5Lmultilayer Bottle Blow Molding Machine thumbnail-1

5Lmultilayer Bottle Blow Molding Machine photo-1

US$ 19,800 - 54,800 MOQ: 1 Piece

Key Specifications

Get Latest Price

Condition:

Used

Application:

Other, plastic bottles;plastic products

Plastic Processed:

Other, PE;PP;EVOH

Contact Supplier Request Quote Chat Now

Yuhuan Tonva Plastics Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition Used

Application Other, plastic bottles;plastic products

Plastic Processed Other, PE;PP;EVOH

Screw Design Single-screw

Automatic Grade fully automatic

Place of Origin Zhejiang, China

Brand Name TONVA

Model Number TVD-5L/II

Voltage 380VAC,50HZ

Power(W) 22000

Dimension(L*W*H) 3.3*2.1*1.8

Weight 4.2T

Certification CE;ISO9001;SGS

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Specilizing in blow molding machine 21years since 1993
2.Deflashing device
3.Famous brand components part
4.CE;ISO9001;SGS

two layer Blow molding machine Main Characteristic:

1. Two station,Two layer, , PE / PP etc.

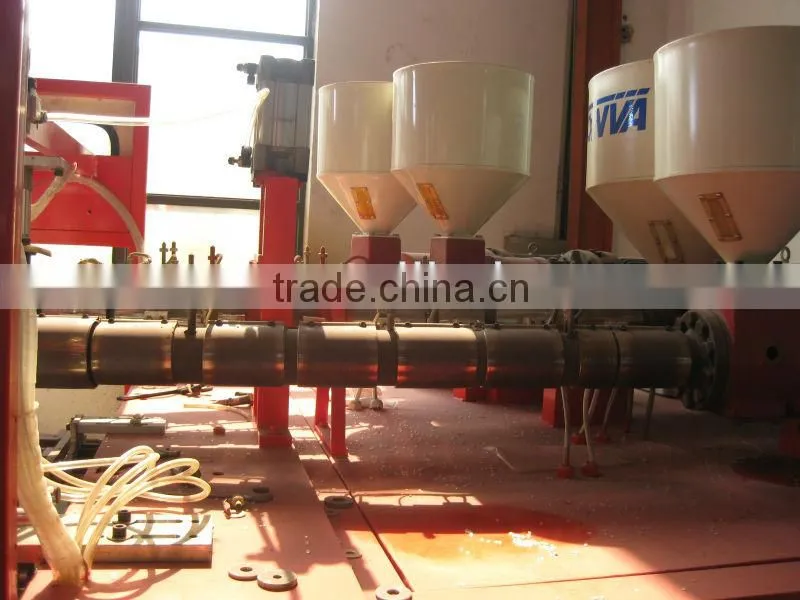

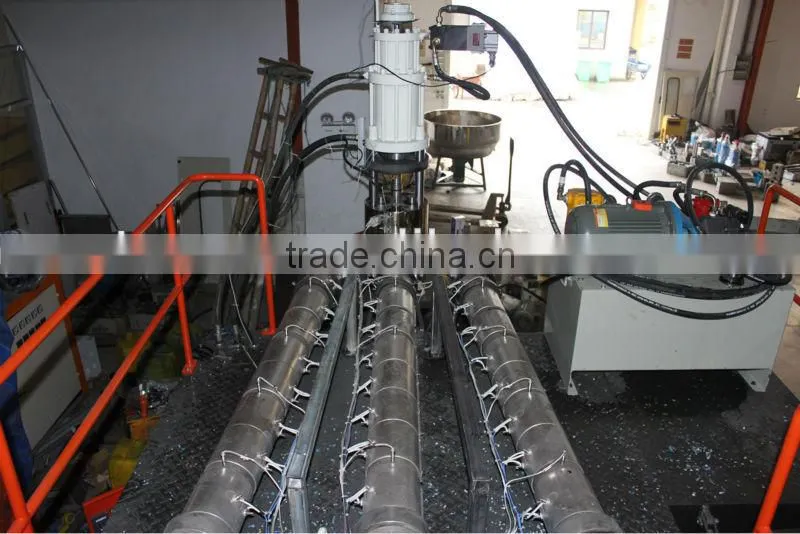

Primary screw:65mm,7.5kw;

secondary screw:35mm,2.2kw.

third layer screw:35mm,2.2kw

Fourth layer screw:35mm,2.2kw

2. Power supply: 380VAC, 50Hz (depending on client's county ).

3. Different Die Head for Choosing:

One head (2L-5L): 5L---around 180 bottles per hour
Two head (1L-2L): 2L---around 600 bottles per hour
Three head ( 500ml to 1L): 1L---around 1200 bottles per hour
Four head (up to 500ml): 500ml---around 2000 bottles per hour

4. Center Distance: Two Die head: 180mm, Three Die head: 120mm

Four die head:100mm

5. Auto matic Deflashing system: Neck/ handle/ bottom deflashing.Fully automatic.

6. MOOG 100 Points Parison Controller (Optional)

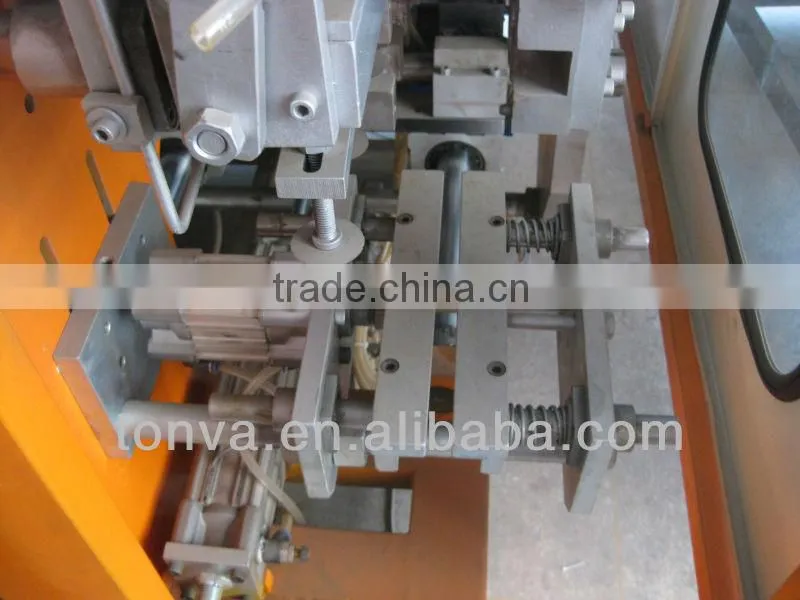

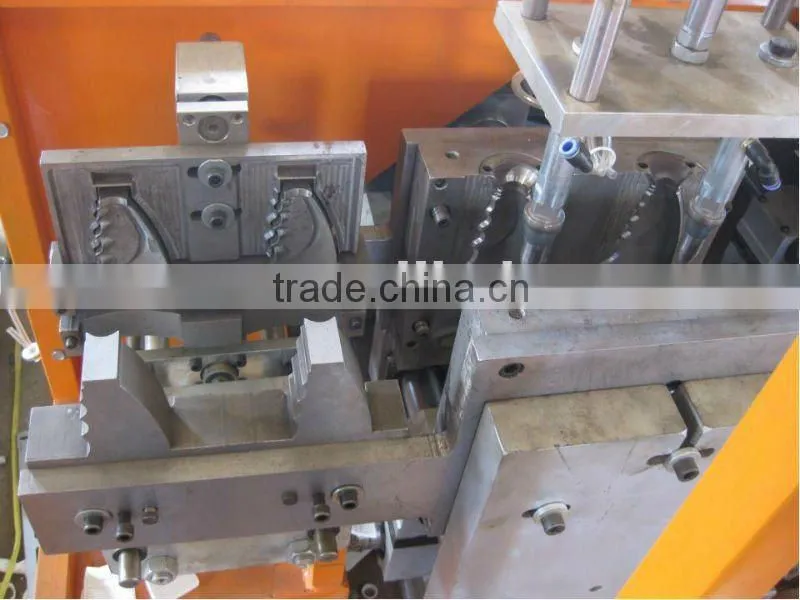

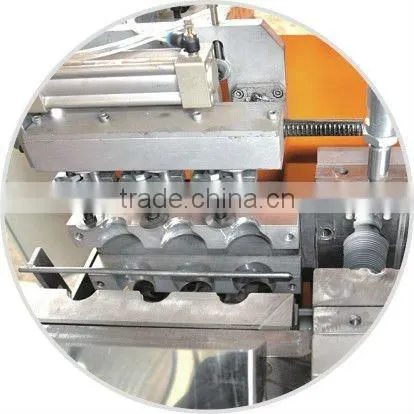

Deflashing device:

A. one desing of deflashing(rolling knife)

B. another desing of deflashing(punching knife)

C. Bottom cutting

Basic working theory:

This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by hydraulic cylinders actuated by pneumatic primary cylinders. Moreover, it equips with deflashing system, resulting in saving time and manual cost for clients.

Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN

Technical parameters:

Item	Unit	TVD-2L/II
Diameter of screw stem	mm	65+35
L/D of screw stem	-------	25:1*2
Extrusion power	Kw	22+2.2
Heating power	Kw	13+4.5
Heating zones	piece	6+3
Plasticizing capacity	kg	80
Number of moulds	set	2
Mould thickness scope	mm	160-200
Open stroke	mm	200
Mould length	mm	150-350
Max. clamping force	KN	50
Pressure of air source	Mpa	0.7
Air consumption	m³/min	0.8
Water consumption	m³/h	1.5
Weight	T	4.2
Dimension	m	3.32.11.8

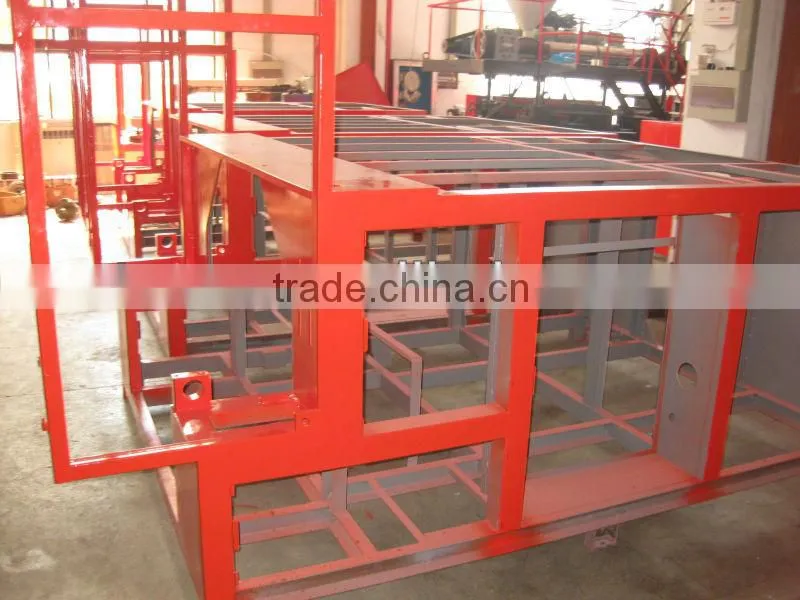

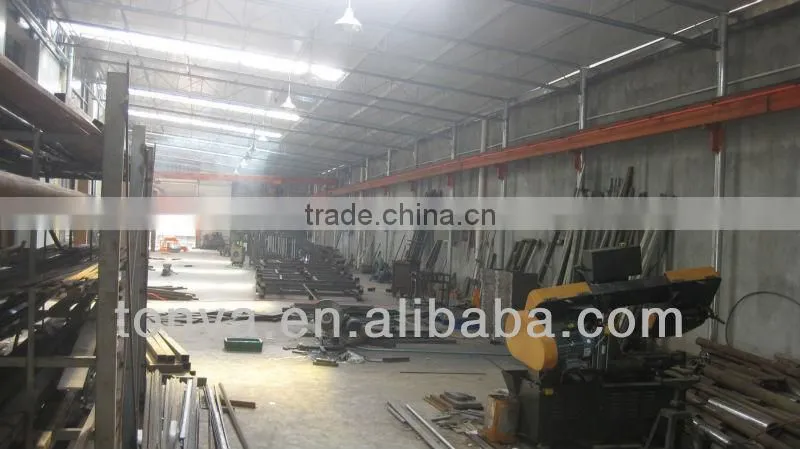

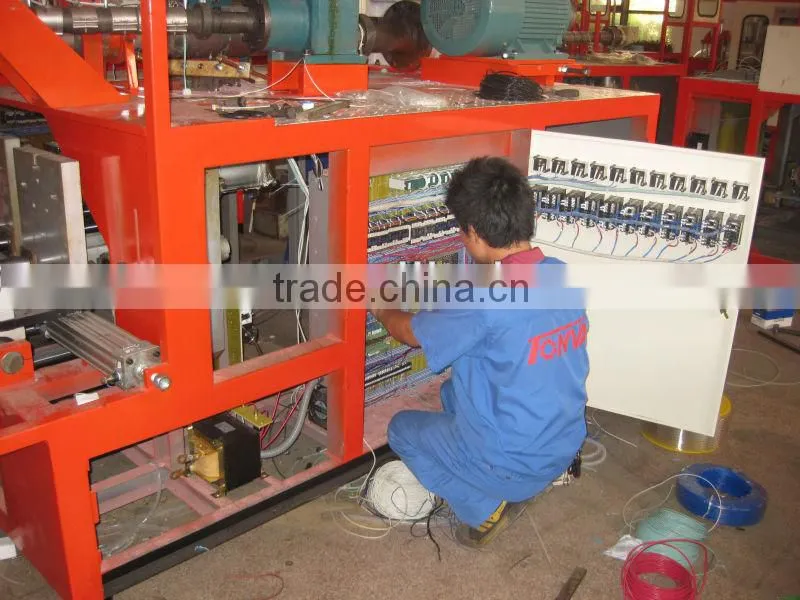

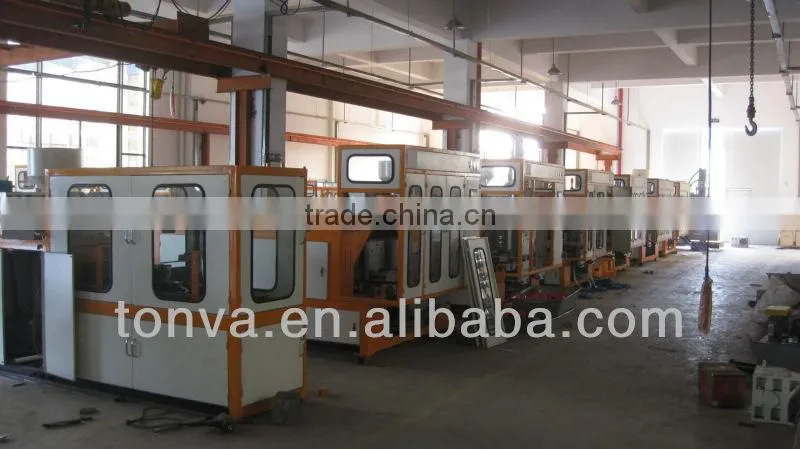

Assemble plant:

After-sale service:

1. Instruction for Installation and Debugging

Before delivery, TONVA takes responsible for debugging of machine, in order to make sure the provided machine could be safely and smoothly put into operation.

TONVA also take responsibility to have debugging overseas, and Client abroad please sends invitation forward of time to engineer of TONVA, provides the engineer with round-trip tickets, accommodation, vehicle and $60 per day salary.

2. User Training

Before delivery, TONVA will take responsibility to indoctrinate technical training to the users so that they could understand the machine features and could operate the machine by themselves.

3. Warranty Period

The warranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.

Note:Information listed above are for reference only, the production line can be designed according to customer's requirements.
