Help Center500ml Multilayer Semiautomatic Extrusion Blow Molding Machine
Related Products
-
Plastic Toys Blow Molding Machine, Accumulator TypeUS$ 53,800 - 70,000MOQ: 1 Piece -
2L Multilayer Automatic Plastic Bottle Blowing MachineUS$ 26,800 - 50,000MOQ: 1 Set
-
Hollow Chair Blow Molding Machine, Accumulator TypeUS$ 53,800 - 70,000MOQ: 1 Piece
-
Blow Molding Machine, Four Station Two Head, Jar Blowing MachineUS$ 19,800 - 50,000MOQ: 1 Piece
-
5L Multilayer Automatic Plastic Bottle Blowing MachineUS$ 30,800 - 50,000MOQ: 1 Set
Specifications
1.19 years of experience in blow molding machine2.Original Four station
3.Famous brand component
4.CE
5. 2 years warranty

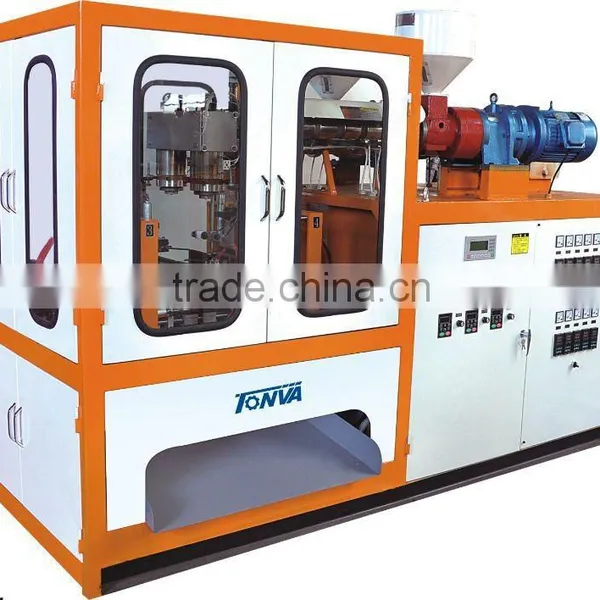

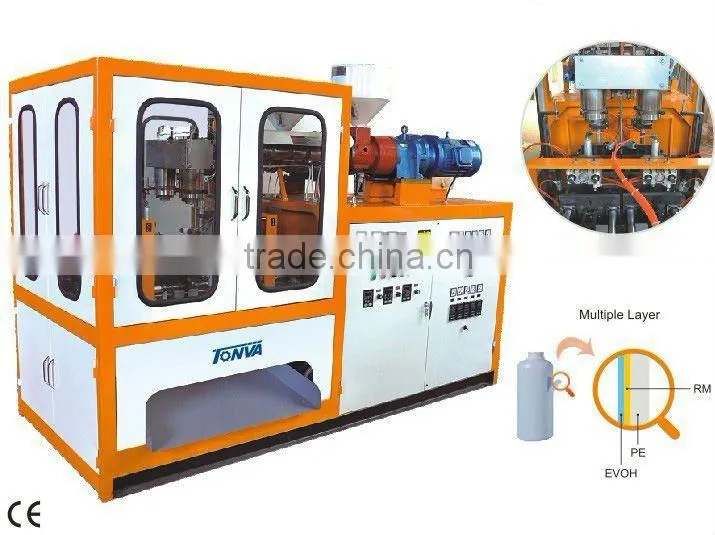

TONVA TVF-500ML/II multilayer(2 - 5 layer ) four station extrusion blow molding machine

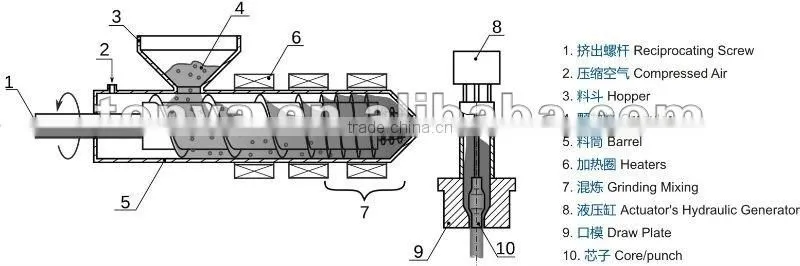

Blowing technology:
Main Characteristic:
1. Four station, Double head, multiple layer, 50mm screw, 7.5kw motor, PE / PP etc.
National initiative Four station plastic blowing technology,adopting ball bearing liner guide,it works durable and stable.
2. Power supply: 380VAC, 50Hz (depending on client's county ).

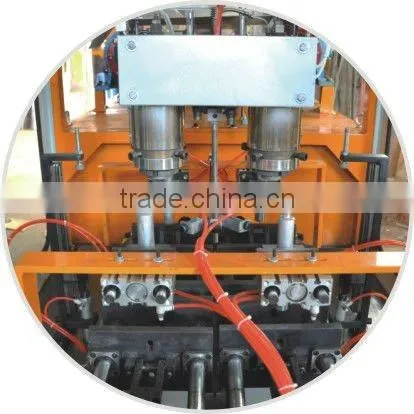

3. Two die head: 50ml around 2500 bottles per hour
500ml around 1000 bottles per hour
4. Specializing in following industries:
Plastic bolltle, Chrismas ball, Tool case, Test dropper.
5. can produce two different size and shape of bottles at the same time!

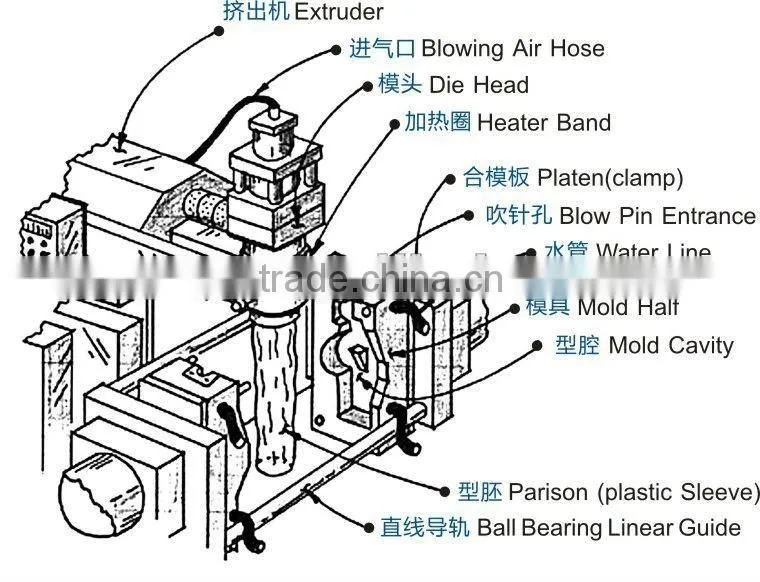

Basic working theory:
This kind of blow molding machine is using PLC control system, operating manual in English, pneumatic operated, clamping by bent axle actuated by pneumatic primary cylinders.

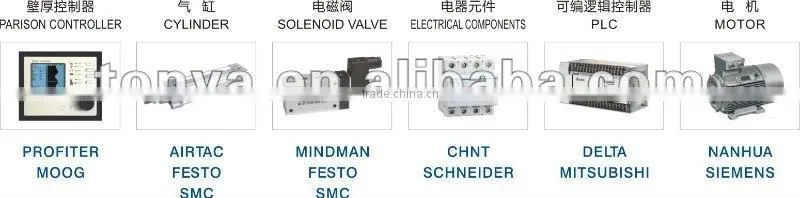

Our machine adopts famous brand in most component parts, almost from GERMANY, JAPAN, FRANCE, TAIWAN

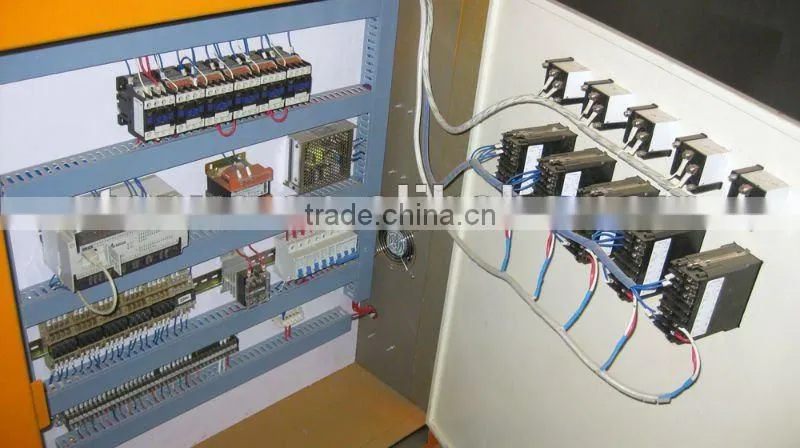

Electirc system:
Technical Specification:
Item
Unit
Parameter
Raw Material
-
PE/PP/PVC/EVA...
Diameter of primary screw
mm
55
Diameter of secondary screw
mm
35
L/D of screw
-
23:1
Extrusion Power of primary screw
KW
7.5
Extrusion Power of secondary screw
KW
2.2*2
Heating Power of primary screw
KW
9
Heating Power of secondary screw
KW
4.5*2
Plasticizing Capacity
kg
50
Moulds
piece
4
Mould thickness
mm
60~110
Open stroke
mm
85
Mould length
mm
100~280
Max. Clamping Force
KN
45
Molding Head
piece
2
Pressure of air source
Mpa
0.6
Air consumption
m3/min
0.4
Water Consumption
m3/h
1.2
Weight
T
2.2
Dimention
m
2.5*1.2*1.8
Packing for machine:
Packing for mould:

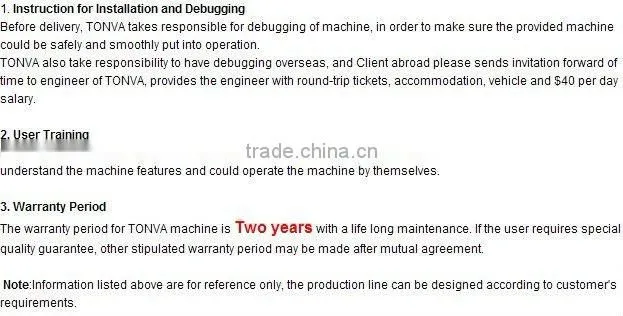

After-sale service:
