Specifications
Low cost Advertising CNC Router:1. Servo motor,Italy air cooling
2. DSP off-line control system
3. LCD , USB, CE

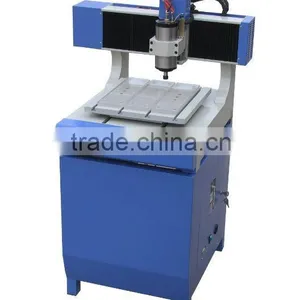

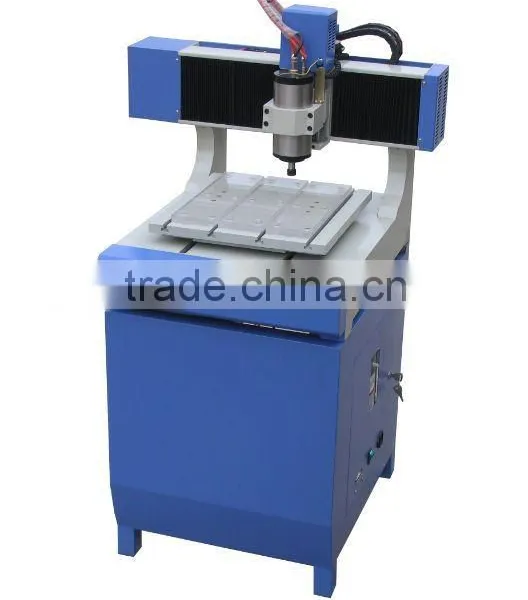

Low cost Advertising CNC Router :
Technical Parameter :
Model |
QX-3030 |
Table size |
350mm*320mm |
Working area |
300mm*300mm |
X, Y, Z working area |
300mm x 300mm x 120mm or depends on customer |
Max.Speed |
4m-6m/min |
Max.Working Speed |
2m-3m/min |
Repositioning Positioning Accuracy |
0.05mm |
Resolution |
0.01mm |
Engraving command |
G*.u00*.mmg*.plt |
Max.Consume power |
300W |
Working Voltage |
AC220V/50Hz |
Spindle Power |
1.5kw |
Spindle Speed |
0-24000rpm/min |
Working motor |
Stepper motor |
Feeding height |
100mm |
The diameter of the knife |
Φ3.175,Φ6 |
Engraving code |
HPGL,G code |
Main power |
1.2KV |
Applicable area:
Applicable for advertisement, double face board and scutcheon, department brand, chest brand and the architecture board, ABS brand, the engraving and cutting of acrylic and the engraving of many jade article.
Samples:
