In-line Plantary Gearbox for Servo Motors

In-line Plantary Gearbox for Servo Motors thumbnail-1

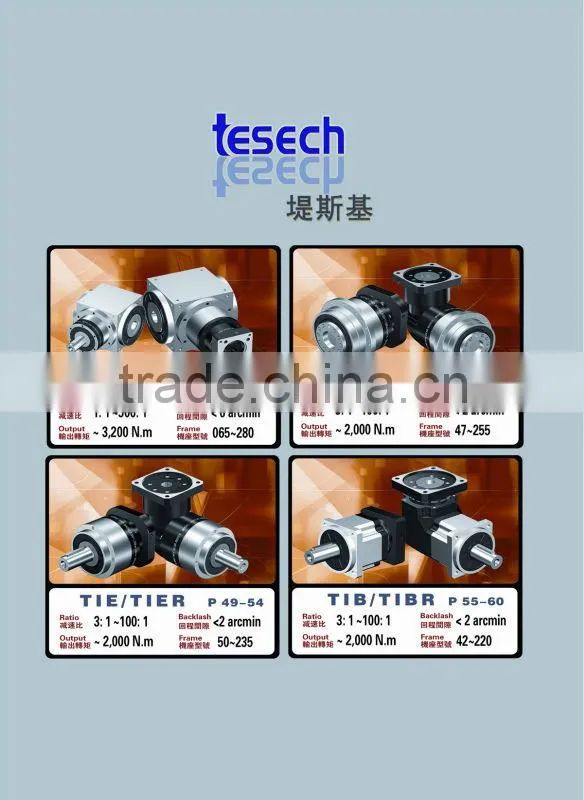

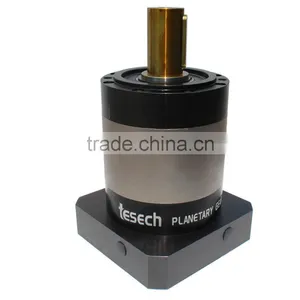

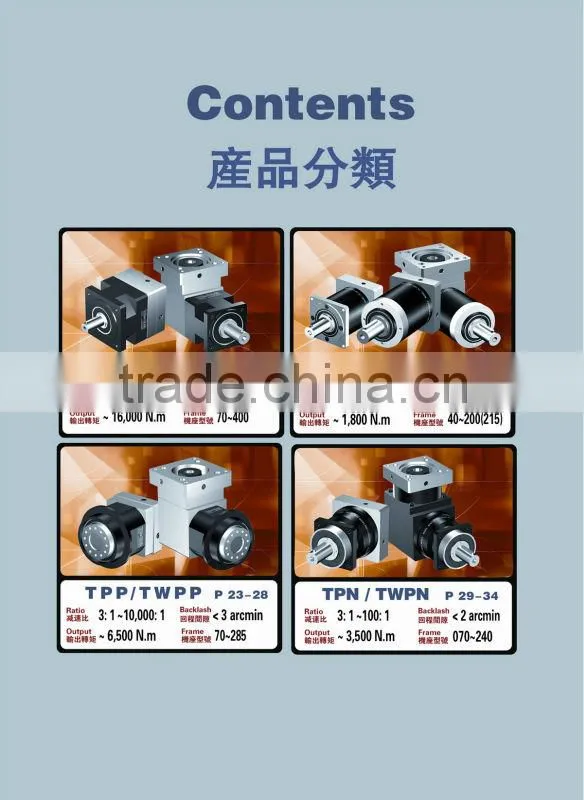

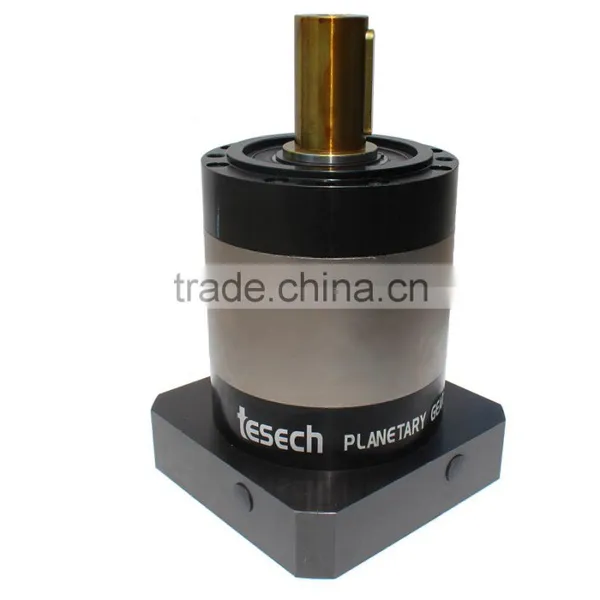

In-line Plantary Gearbox for Servo Motors photo-1
US$ 99 - 199 MOQ: 1 Set
Key Specifications
Get Latest Price
Gearing Arrangement:
Planetary
Output Torque:
<15000N.M
Rated Power:
0.1-5.5KW
Contact Supplier Request Quote Chat Now
Shenzhen Xintaichuang Motor Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Planetary
Output Torque <15000N.M
Rated Power 0.1-5.5KW
Input Speed 2500-3000rpm
Output Speed 10-500rpm
Place of Origin Guangdong, China
Model Number TPS/TWPS
Brand Name Tesech

Planetary Gearbox for Servo Motor





1. WPH series precision planetary gear speed reducer Model: WPH40, WPH60, WPH90, WPH120, WPH160, WPH200


2. The speed ratio: 3, 4, 5, 7, 9, 10, 15, 20, 25, 30, 35, 40, 50, 64, 70, 80, 100, 150, 200, 250, 350, 400, 500, 700, 1000
3. Stages: Three
Performance and features:
1. Planetary gear transmission interface using doesn't contain full needle needle bearing, and increase the contact area to improve structural rigidity and output torque;
2. WPH series precision planetary gear reducer, with high precision, high rigidity, high load, high efficiency, high speed ratio, high life, low inertia, low vibration, low noise, low temperature rising, beautiful appearance, structure, light weight, easy installation, accurate positioning, etc, and is suitable for AC servo motor, DC servo motor, stepper motor, hydraulic motor of growth and slow down transmission

Type WPH-40 WPH-60 WPH-90 WPH-115 WPH-142 WPH-190 Ratio Stages
T2N
Rated output torque
(Nm)		 5 12.5 37 100 310 1485 3 1
10 28 76 200 605 1780 4
9 24 62 140 420 1345 5
5 15 37 90 270 745 7
6 9 20 45 120 905 10
6 15.5 42 112 340 1070 9 2
6 15.5 42 112 340 1485 15
12 34.5 90 235 680 2035 20
10.5 29 70 155 460 1485 25
12 34.5 90 235 680 2035 30
9 24 62 140 590 1450 35
10.5 29 70 155 460 1485 40
9 24 50 112 340 1070 50
6 17 41 96 308 840 70
6 17 41 96 308 840 100
7.6 19 54 145 422 2590 64 3
15.5 44 110 295 895 2590 80
15.5 44 110 295 895 2590 100
15.5 44 110 295 895 2590 150
13.5 38 89 195 580 1855 200
15.5 44 110 295 895 2596 250
13.5 38 89 195 580 1855 350
10.5 30 50 145 515 1450 400
7.5 22 52 124.5 400 1070 500
7.5 22 52 124.5 400 1070 700
7.5 22 52 124.5 400 1070 1000

emergency stop torque		 T2not=2T2N

Rotational inertia
(kgm2)		 0.031 0.0135 0.77 2.63 12.14 15.6 3 1
0.022 0.093 0.52 1.79 7.78 16.3 4
0.019 0.078 0.45 1.53 6.07 15.4 5
0.017 0.065 0.39 1.32 4.63 16.1 7
0.016 0.065 0.39 1.32 4.63 15.2 10
0.03 0.131 0.74 2.62 12.14 15.9 9 2
0.023 0.077 0.71 2.53 12.35 15 15
0.019 0.075 0.44 1.5 6.65 15.7 20
0.019 0.075 0.44 1.49 5.81 15.3 25
0.017 0.064 0.39 1.3 6.36 15.2 30
0.016 0.064 0.39 1.3 5.28 16.1 35
0.016 0.064 0.39 1.3 5.28 15.2 40
0.016 0.064 0.39 1.3 4.5 15.2 50
0.016 0.064 0.39 1.3 4.5 15.2 70
0.016 0.058 0.31 1.12 3.53 15.2 100
0.019 0.075 0.5 1.5 7.5 15.4 80 3
0.019 0.075 0.44 1.49 7.4 15.4 100
0.016 0.064 0.39 1.3 6.5 15.2 150
0.016 0.064 0.39 1.3 6.2 15.2 200
0.016 0.064 0.39 1.3 5.7 15.2 250
0.016 0.064 0.39 1.3 5.4 15.2 350
0.016 0.064 0.39 1.3 5.4 15.2 400
0.016 0.064 0.39 1.3 5.2 15.2 500
0.016 0.064 0.39 1.3 5.2 15.2 700
0.016 0.064 0.39 1.3 5.2 15.2 1000
backslash
(arcmin)		 reduced <5 <3 <3 <3 <5 <10   1
standard <10 <8 <8 <8 <10 <15
reduced <8 <5 <5 <5 <8 <15   2
standard <12 <10 <10 <10 <10 <18
reduced <10 <8 <8 <8 <10 <18   3
standard <15 <12 <12 <12 <15 <22
torsional rigidity
(Nm/arcmin)		 0.7 1.8 4.4 9.2 26.7 66.7
noise dB(A) 55 58 60 65 70 75
Max.input speed 10000 8000 6000 6000 5000 3500 1-min
Rated input speed 4500 4000 4000 3500 2000 1500 1-min
Max.Radialforce(N) 1850 3400 5300 9550 14000 18000
Stages
Max.Axialforce(N) 1600 3000 4500 8000 11000 15000
Full-load efficiency(%) 96 1
94 2
90 3
 service life (H) 20000
Weight (Kg) 1.1 2.2 5.8 12.7 29 55 1
1.3 2.4 6.3 14.7 34 62 2
1.5 2.6 6.8 16.7 39 76 3
