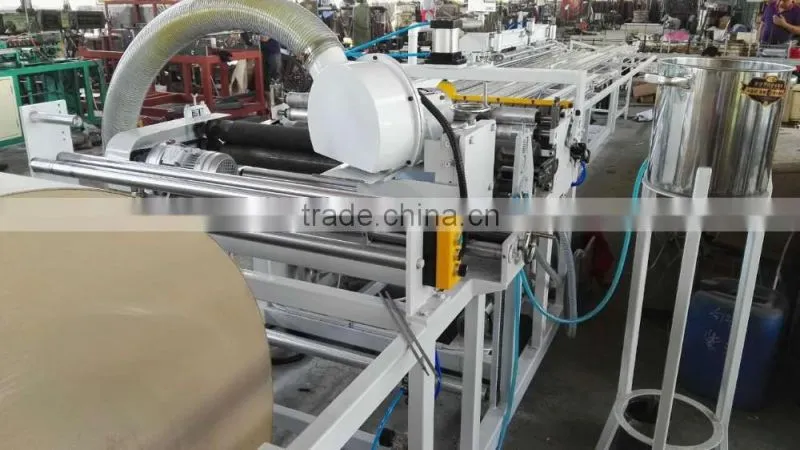

Help CenterAutomatic Paper Tube Machinery, Inner Diameter 9mm to 600mm
Related Products
-
Automatic Parallel Steel Paper Tube Machine, Wire Paper Tube Machine, Tube Inner Diameter 9mm to 600mmUS$ 26,000 - 35,000MOQ: 1 Set -
China Manufacture Thermocouple Paper Tube Machine Parallel Paper Tube MachineUS$ 20,000 - 35,000MOQ: 1 Set
-
China Manufacture Automatic Parallel Paper Tube Making Machine ThermocoupleUS$ 20,000 - 35,000MOQ: 1 Set
-
Thermocouple Manufacture Automatic Parallel Paper Tube Making MachineUS$ 20,000 - 35,000MOQ: 1 Set
-
China Manufacture Automatic Parallel Paper Tube Making MachineUS$ 20,000 - 35,000MOQ: 1 Set
Automatic Parallel Steel Paper Tube Machine, Wire Paper Tube Machine with PLC control
Tube inner diameter: 9mm to 500mm
Applications:
SKPJ16-102 Automatic parallel paper tube winding machine could make thermocouple paper tubes in metallurgy industry and it could also make paper tubes which is used in packing industry to pack precise instrument and also in cloth pack and pencils.
Paper Tube Winding Machine Features:
1, Forming tube's electric motor is adopted Japan's Panasonnic servo motor.
2, The paper tube machine is used German Original Siemens' PLC control.
3, The outter circle of the paper tube is adopted paper grinding system to make sealing the outter circle of the paper tube become easier.
4, The outter circle of the paper tube is adopted automatically water spraying system to make seal the outter circle of the paper tube easy.
5, The machine is adopted Tai wan's Delta inverter.
6, The forming paper tube 's spindle's head and tail's inner diameters are same size.
7, The machine is used electric motor to raising the Jumbo roll.
Paper Tube Winding Machine Specification:
1, Paper tube inner diameter range: 16-102mm
2, Paper tube thickness: 2.5-10mm
3, Paper tube maximum length:1220(2520)mm
4, Working efficiency: 10-12 times/Min
5, Operation required: 1 person control 2 machines
6, Paper thickness: 280-550gsm
7, Maximum jumbo roll diameter: 1300mm
8, Total power: 8.32KW/9.62KW
9. Dimension: 5360(7960)*1840(2530)*1400mm
SKPJ16-102 Automatic parallel paper tube winding machine's paper tube inner diameter and length can be customerized.
Payment terms:
T/T 30% in advance, T/T 70% before shipment, LC at sight
After-sales service:
Engineer could be sent to customer's facotry to install and training if customer required
For more models, pls send inquiry to us!
Welcome to visit our factory!
We are the best partner of parallel paper tube machine manufacturer!
