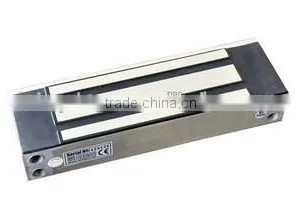

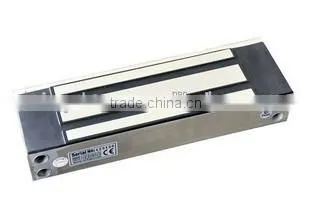

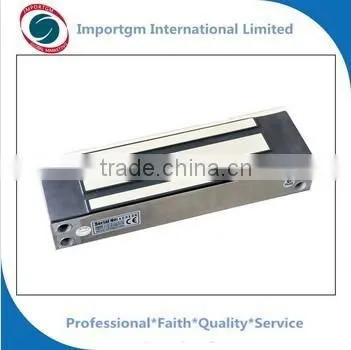

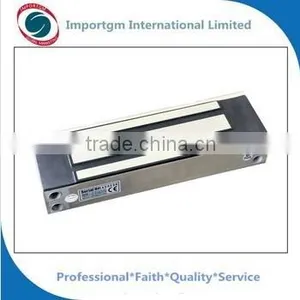

500KG holding force (waterproof)Single Door Magnetic Lock
Model item: IGM -500W-S
YM-500W-S single door electric lock with waterproof function, the case is stainless steel and it is 100% waterproof treatment.All the accessories are sealed inside the lock cylinder. Specially for metal door, heavy door and so on.
Production details
| Product Parameter | Parameter Description |
| Size | 220Lx63Wx36H(mm) |
| Armature plate | 185Lx60Wx13H(mm) |
| Holding Force | 500kg(1200Lbs) |
| Voltage | 12 or 24VDC |
| Current Draw: | 12V/420mA or 24V/210mA |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 4.5kg |
Advantages
Collinear Load Test 500Kg,1200pounds.
Dual Voltage 12 or 24 VDC (optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
100 percent waterproof,All the Parts Pressurize in resin.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
Electromagnetic Lock Trouble and Shooting
Troubles |
Cause |
Shooting |
Door cannot lock |
1. Circuitry malfunction or low voltage. 2. The power supply wire is too thin and long to cause big decrease of voltage. 3. Power supply is broken to cause no voltage output. 4. The positive and negative wire of power supply is connected in reverse.
|
1. Check the connection, and measure the voltage to see if it is normal. 2. Modify or change the power supply wire into thicker one. 3. Check the power polarity and correct the connection. 4. Check to see if power supply or controller is correctly connected to NC.Make sure to see up the controller correctly. |
No transform of indicator output with low holding force. |
1. The mount plate and the electromagnetic lock face not in complete close. 2. The mount plate is fixed to tight, no room to move. 3. The electromagnetic lock and the mounting plate not at same level for case the door is deformed or moved. 4. The surface of mount plate or electromagnetic lock is not clear. 5. The power supply with lower power. 6. The power supply wire is too thin and long. 7. The electromagnetic lock is malfunction.
|
1. Check the face of mount plate or electromagnetic lock, if the face of plate is deformed to cause no complete close to the lock, please change the plate. 2. Check if the rubber gasket is put into the stick of plate, and adjusts the bolt of plates not too tight at least a little movable. 3. Adjust the mount plate and electromagnetic lock to be level at each other and close completely. 4. Clean the surface of lock and plate, if rusted to cause no working please change the part. 5. Use millimeter to check the voltage and current of electromagnetic lock to see if it is normal, or need repairing or changing power supply. 6. Change into high quality power supply wire, better no more the 20 meters. 7. Repair or change the electromagnetic lock. |
Door cannot open |
The power is not cut off |
To check out the connection of power supply and controller, the electromagnetic lock is power-on locking power-off opening type. The lock can be open once power off. |
