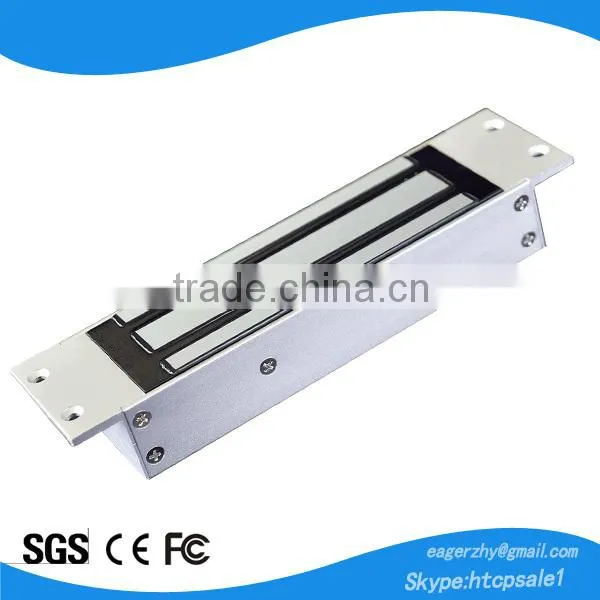

500kg/1200lbs Hidden Magnetic Lock with Mortise Mount
Specification:
| Product Parameter | Parameter Description |
| Lock Size | 254Lx65.8Wx38.8H(mm) |
| Armature plate | 185Lx60Wx13H(mm) |
| Holding Force | 500kg(1200Lbs) |
| Voltage | 12/24VDC+10% |
| Current Draw | 12V/420mA 24V/210mA |
| Suitable for | Wooden door, Glass door, Metal door, Fireproof door |
| Installation | Mortise Mount |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 4.5kg |
Features:
Collinear Load Test 500kg, 1200 pounds
Dual Voltage 12 or 24 VDC(optional)
The Standard Voltage is 12VDC when Finished
MOV Provides Reverse Current Protection
Anti-Residual Magnetism Designed
High Strength Material, Anodized Aluminum Housing
Design without Mechanical Failure
Increase the holding Force, Dual Insulative Housing
