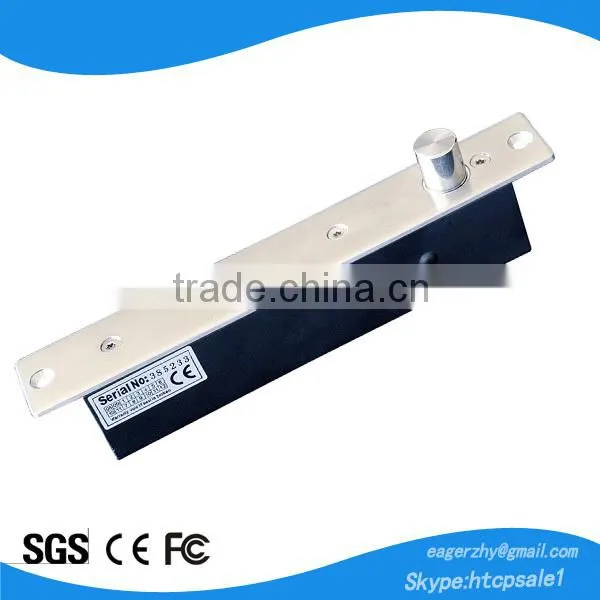

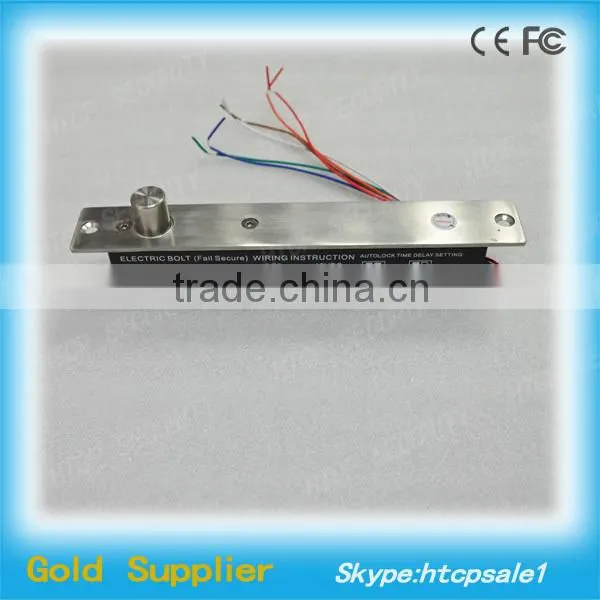

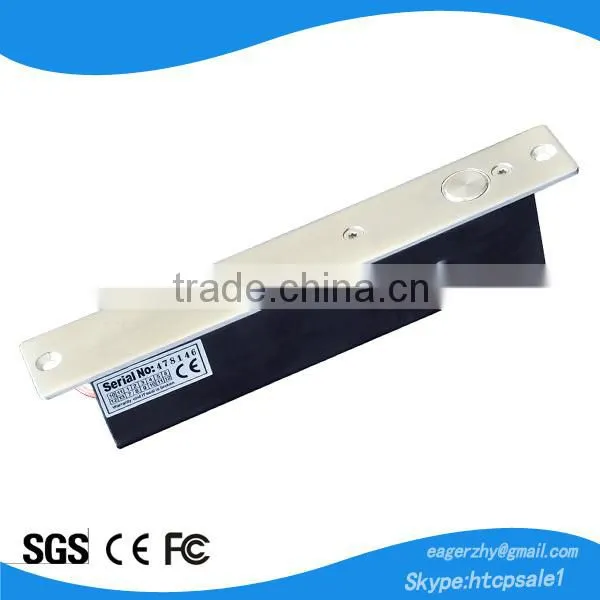

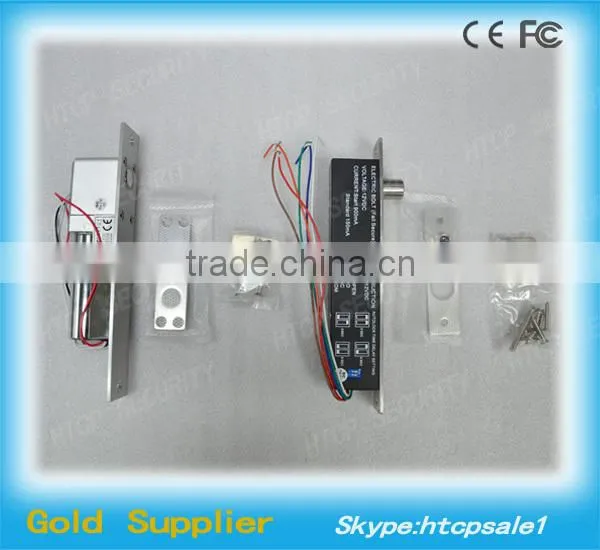

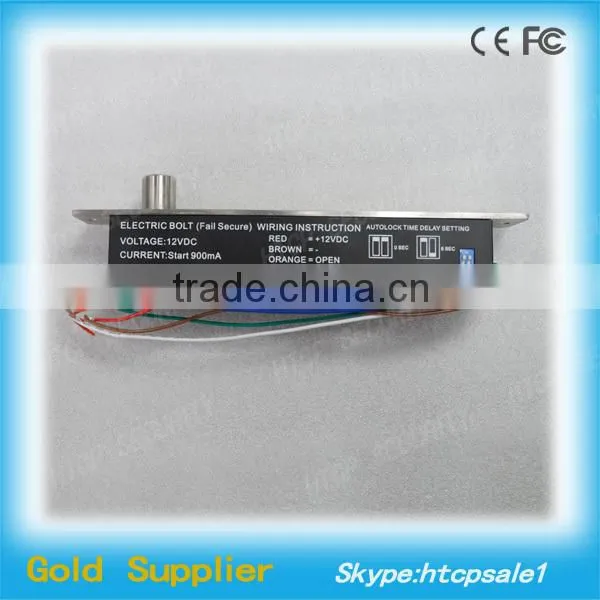

Timer & Signal Fail Secure Electric Sliding Door Bolt Lock
Introduction:
EL-700B is a fail secure electric bolt suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low tempreture design.
Specification:
| Fail Secure | Unlocked when energized |
| Face Plate | 205Lx30WX38H(mm) |
| Strike | 100Lx25Wx3W(mm) |
| Bolt | 16mmDIA,stainless steel 16mm throw |
| Voltage | DC12V+10% |
| Start Current | 900mA |
| Standby Current | 120mA |
| Solid Bolt | polishing housing, 2000Kg Holding Force |
| Suitable For | Wooden Door,Glass Door,Metal Door |
| Autolock Time Delay | 0,3,6,9sec |
| Signal Output | Door status Output,NO/NC/COM |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10~+55°C(14~131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Special Designed | Tested to 500000 cycles |
| Face place material | Stainless Steel |
| Weight | 1.0kg |
Advantage:
Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 Operations.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy,Solid Stain-less Steel Bolt.
Autolock Time Delay: 0,3,6,9sec.
Door statue signal output contact(NO.NC.COM).
Double protection for loading current.
Auto-relock if no Action within 5 secs.
Certificate:CE&MA.
Photoelectricity Control,Low Temperature,
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology,prevent the machanical defect.
