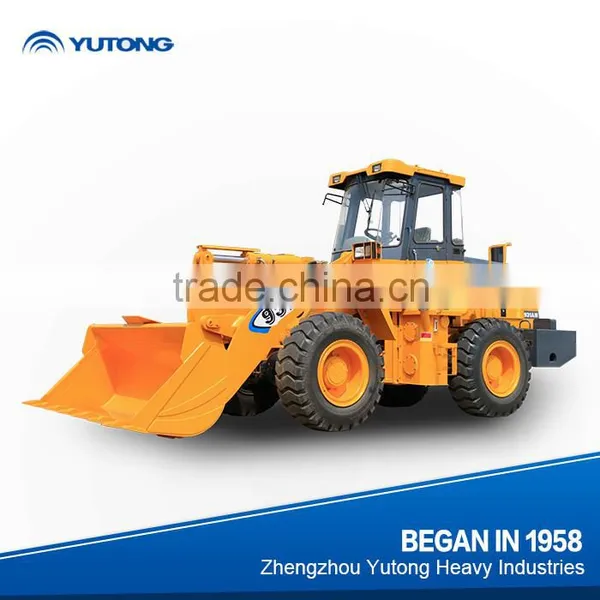

Help CenterYellow Wheel Loader 953A
Related Products
The complete machine is provided with Weichai second-stage supercharged engine of high performance which is designed with high output power and low oil consumption to ensure reliable quality and economic price; equipped with Hangchi hydraulic power shift transmission and HD driving axle of reliable quality and excellent performance in the field. As a result, the complete machine is very powerful with high horsepower and has won popularity among users.
The frames are in short wheelbase arrangement which requires small operation area and can ensure flexible and handy steering; the 3400 discharge height of standard configuration has realized higher discharging; the motor point of the optimized single-bellcrank implement, time of 9.8s for three elements, and 170kN breakout force have proved the fast loading speed and huge power. In a word, it will create great wealth for you.
It is optional for Weichai second-stage supercharged low-speed engine with constant power and output power increased to 900 Nm/ (1,300 - 1,500) rPm, rotate speed dropped to 2,000 rPm for the purpose of fuel-efficient environmental protection. According to the testing data, the motor can realize the oil saving up to over 8% and efficiency promotion of 1.5%. It is a way to initiate a new concept of oil saving and high efficiency.
Overall size (L * W * H) |
8320*3000*3480 |
Rated load |
5 |
Shovel volume |
2.7-4.2 |
Weight of complete machineUnloading height |
17.04 |
Unloading height |
3400 |
Unloading distance |
1070 |
Sum of lifting, dumping and falling time |
9.8 |
Wheelbase |
3000 |
Wheel distance |
2200 |
Maximum dig up force |
175 |
Maximum tractive force |
145 |
Steering angle |
36º |
Maximum driving speed |
36 |
Minimum turning radius |
6160 |
Maximum grade ability |
25 |
Motor Model |
WD10G220E21 |
Motor Rated power |
162 /220 |
Motor Rated revolution |
2200 |
Torque |
949 |
Engine emission |
National Stage II Emission Standard |
Transmission model |
Hangzhou Gear ZL50X54D transmission |
Transmission gear |
Two forward gears, One reverse gear |
Drive axle model |
YuTong M Drive axle |
Drive axle load (t) |
28 |
Brake |
Caliper disc brake |
Tyre Model |
23.5-25-16PR |
Working system pressure (MPa) |
16 |
Working system operating method |
Flexible shaft operation |
Air-conditioning system |
Heating system |
