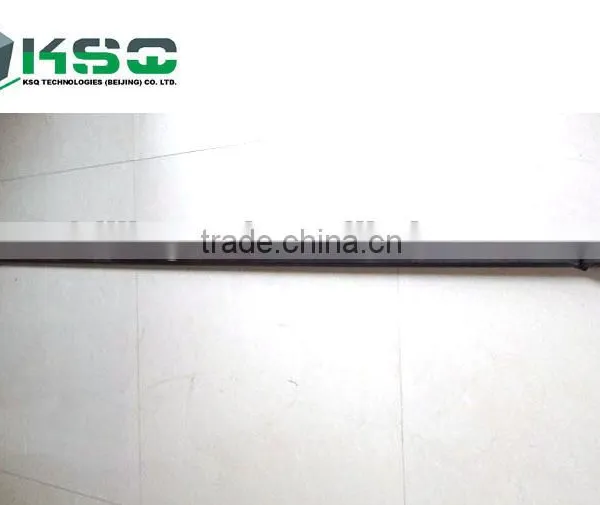

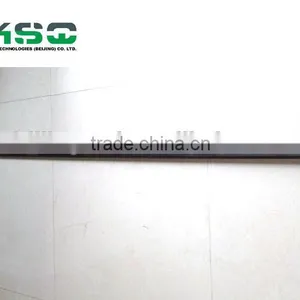

11 Degrees Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm
Negotiable
MOQ: 30 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
MIROC
Model Number:
H22-11D-610 to H22-11D-8000
Payment & Shipping
Payment Methods:
Port of Shipment:
Beijing or Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12 Degrees Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mmNegotiableMOQ: 30 Pieces -
12 Degrees Taper Hex 25 Tapered Rod, Shank 25 mm x 159 mmNegotiableMOQ: 30 Pieces
-
12 Degrees Female Threaded Rod for Rock Drilling ToolNegotiableMOQ: 30 Pieces
-
Taper Hex 22 Tapered Drill Rod for Female Threaded RodNegotiableMOQ: 30 Pieces
-
11 Degrees Tapered Drill Rod With Female Threaded RodNegotiableMOQ: 30 Pieces
Place of Origin
Shandong, China
Brand Name
MIROC
Model Number
H22-11D-610 to H22-11D-8000
Type
Other, Taper Hex 22 Tapered Rod
Machine Type
Drilling Tool
Material
Carbon Steel
Processing Type
Casting
Use
Ore Mining
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceDescription
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
Application
• Dimensional Stone Industry
• Underground Mining
• Tunneling
Speficiation
<
| Part Number | Product Code and Brief Description | Length (mm) | Length (ft/inch) | Weight (kg) |
| 4148300241 | H22-11D-610, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 610 | 2 | 2.2 |
| 4148300242 | H22-11D-1220, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 1220 | 4 | 4.1 |
| 4148300243 | H22-11D-1830, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 1830 | 6 | 5.9 |
| 4148300244 | H22-11D-2000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 2000 | 6 5/9 | 6.4 |
| 4148300245 | H22-11D-2435, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 2435 | 8 | 7.8 |
| 4148300246 | H22-11D-2600, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 2600 | 8 1/2 | 8.3 |
| 4148300247 | H22-11D-3200, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 3200 | 10 1/2 | 10.1 |
| 4148300248 | H22-11D-3655, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 3655 | 12 | 11.5 |
| 4148300249 | H22-11D-4000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 4000 | 13 1/8 | 12.6 |
| 4148300250 | H22-11D-4800, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 4800 | 15 3/4 | 14.9 |
| 4148300251 | H22-11D-5600, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 5600 | 18 3/8 | 17.4 |
| 4148300252 | H22-11D-6400, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 6400 | 21 | 19.8 |
| 4148300253 | H22-11D-7200, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 7200 | 23 5/8 | 22.2 |
| 4148300254 | H22-11D-8000, 11° Taper Hex 22 Tapered Rod, Shank 22 mm x 108 mm | 8000 | 26 1/4 | 24.6 |
