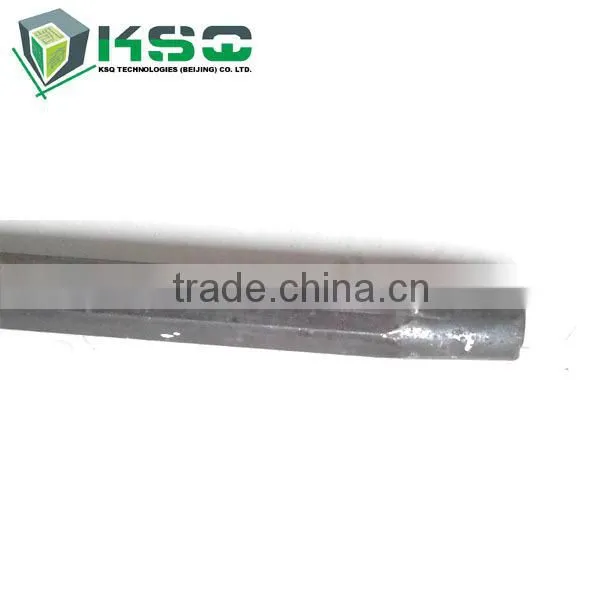

Help Center7 Degrees Tapered Hex 22 Rock Female Threaded Rod
Related Products
-
11 Degrees Taper Hex 22 CNC Rock Drilling Tapered RodNegotiableMOQ: 30 Pieces -
12 Degrees Mining Coal Hex 22 Rock Drilling Tapered RodNegotiableMOQ: 30 Pieces
-
China High Quality , Chisel Bit Integral Drill Steels and Taper Rod , Hex19--H22 , Shank19*108mm , Length 400-8000mmUS$ 10 - 100MOQ: 10 Pieces
-
Mining Rock Integral Tapered Drill RodUS$ 7 - 120MOQ: 5 Pieces
-
Hex 22 , Hex 25 Tapered Drill Rod Taper RodUS$ 7 - 120MOQ: 5 Pieces
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
Tapered equipment affords drillers the ability to change drilling bits whilst still using the same drilling rod. Different taper sizes have different characteristics when it comes to the “knock-off” index – the smaller angle will prevent the bit from spinning.
• Suitable for small hole range
• Widely used in Dimensional Stone Quarrying Industry
• Widely used in Underground Mining Industry
Color: Based on Customer requirements
Material: Tungsten carbide and high strength alloy steel
Processing: CNC milling and proprietary heat treatment process
Type: 7° Tapered Hex 22 Tapered Rod Shank 22 mm x 159 mm
Applications
• Underground Mining
• Tunneling
Competitive Advantage
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance
specification
| Part Number | Product Code and Brief Description |
Length (mm) |
Length (ft/inch) |
Weight (kg) |
| 4148300199 |
H25-7D-4000, 7° Tapered Hex 22 Tapered Rod, Shank 22 mm x 159 mm |
4000 | 13 1/8 | 16.1 |
| 4148300200 |
H25-7D-4700, 7° Tapered Hex 22 Tapered Rod, Shank 22 mm x 159 mm |
4700 | 15 3/7 | 18.9 |
| 4148300201 |
H25-7D-5000, 7° Tapered Hex 22 Tapered Rod, Shank 22 mm x 159 mm |
5000 | 16 2/5 | 22.1 |
| 4148300202 |
H25-7D-5500, 7° Tapered Hex 22 Tapered Rod, Shank 22 mm x 159 mm |
5500 | 18 | 22.1 |
| 4148300203 |
H25-7D-6000, 7° Tapered Hex 22 Tapered Rod, Shank 22 mm x 159 mm |
6000 | 19 2/3 | 24.1 |
Packaging:Carton or Wooden Box
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due o physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
KSQ Technologies (Beijing) Co. Ltd. has significant experience and know-how in the supply of materials, components, finished goods, specially designed/engineered equipment, and services from China. The company caters to medium to large scale clients who are doing projects and capital expansion, as well as to firms who require support with consumable products, maintenance, and repair operations.
