Home > Computer Products > Network Hardware & Parts > Router > HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C

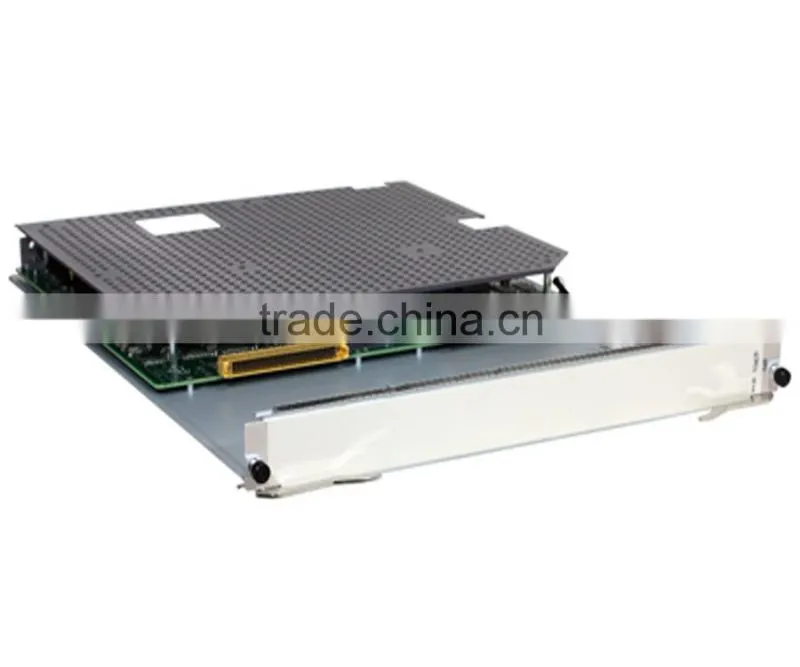

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C

Name: HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C
Brand: HAUWEI
SKU: 119128901

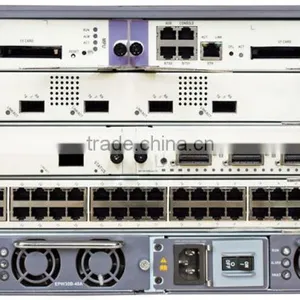

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C thumbnail-1

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C thumbnail-2

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C thumbnail-3

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C thumbnail-4

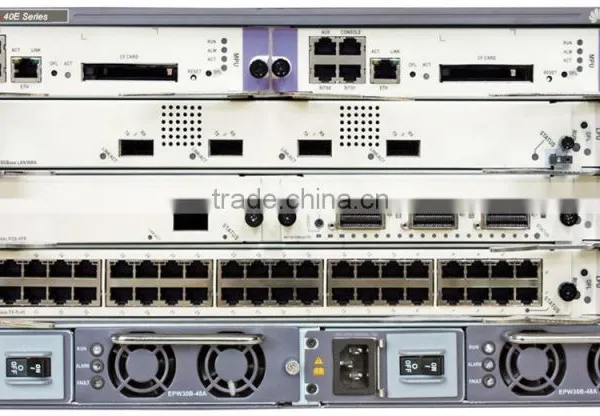

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C photo-1

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C photo-2

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C photo-3

HUAWEI NE Series Quidway NE40E-X3 NE 40E-X16 NE40E-X8 Card CR53-SPU-C photo-4

US$ 80.00 - 100.00 MOQ: 1 Piece

Key Specifications

Get Latest Price

Products Status:

Stock, Used

Type:

Wired

Application:

Enterprise

Contact Supplier Request Quote Chat Now

Beijing Kang Jie Data Communication Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock, Used

Type Wired

Application Enterprise

Function Firewall, QoS

LAN Ports Other

WAN Ports Other

Certification ROHS

Brand Name HAUWEI

Model Number CR53-SPU-C

Place of Origin Beijing, China

Product Description

Product Picture:

Product specifications

Item	NE40E-X16A	NE40E-X16	NE40E-X8A	NE40E-X8	NE40E-X3
Number of Slots	22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs	22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs	12 slots, including 2 SRUs (1:1 backup), 2 SFUs (3+1 backup), and 8 LPUs	11 slots, including 2 SRUs (1:1 backup), 1 SFUs (2+1 backup), and 8 LPUs	5 slots (for 3 LPUs and 2 MPUs)
Dimensions (W x D x H)	442 mm x 650 mm x 1,778 mm (40U)	442 mm x 650 mm x 1,420 mm (32U)	442 mm x 650 mm x 934 mm (21U)	442 mm x 650 mm x 620 mm (14 U)	442 mm x 650 mm x 175 mm (DC, 4U) 442 mm x 650 mm x 220 mm (AC, 5U)
Power Consumption (in full configuration)	9,040 W (480G)	4,610W (120G) 7,970W (240G)	4,770W (480G)	2,340W (120G) 4,100W (240G)	1,070W (AC) 920W (DC)
Weight (in full configuration)	356 kg (480G)	246 kg (120G) 279 kg (240G)	186 kg (480G)	119 kg (120G) 136 kg (240G)	42 kg (DC) 52 kg (AC)
IPv4	IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP4 Line rate forwarding on all interfaces in complex routing environments Various IPv4-to-IPv6 transition technologies: manual tunnel, automatic tunnel, 6to4 tunnel, GRE tunnel, and ISATAP tunnel IPv4 over IPv6 tunnel and IPv6 Provider Edge (6PE) IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, static IPv6 DNS, IPv6 DNS server, TFTP IPv6 client, and IPv6 policy-based routing Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB L2NAT, NAT444, DS-Lite, and NAT64 MPLS TE, P2MP TE/mLDP, and MPLS/BGP VPN, in compliance with RFC 2547 Three inter-AS implementations, integrated with Internet services Martini and Kompella MPLS L2VPN, L2VPN techniques such as VPLS and VLL, and IP interworking over heterogeneous media Multicast VPN MPLS TP
IPv6
MPLS
Layer 2 Features	IEEE 802.1Q, IEEE802.1ad, IEEE 802.1D, IEEE 802.1w, and IEEE 802.1s VLAN aggregation (super VLAN) 1483B and filtering list based on MAC addresses and ports
Reliability	IP/LDP/VPN/TE/VLL FRR, and IP/TE auto re-routing IGP/BGP/ multicast route convergence, VRRP, RRPP, and IP trunk load balancing and backup Hardware-based BFD of 3.3 ms, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane design: backup for key components such as route processing IP/LDP/VPN/TE/VLL FRR, and IP/TE auto rerouting IGP/BGP/multicast route convergence, VRRP, RRPP, and IP trunk load balancing and backup Hardware-based BFD of 3.3 ms, MPLS/Ethernet OAM, Y.1731, and routing protocol/port/VLAN damping PW redundancy, E-Trunk, E-APS, and E-STP In-service patching for smooth software upgrade Passive backplane design: backup for key components such as route processing modules, SFUs, and power modules to guard against single points of failure Switching between components that hot back up each other, Graceful Restart (GR), NSF, NSR, and ISSU Hot swap of all components Well-designed HQoS and advanced scheduling and congestion avoidance technologies on each LPU Accurate traffic policing and traffic shaping Complex rule definition and fine-grained flow identification MPLS HQoS, ensuring QoS for MPLS VPN, VLL, and PWE3 services DS-TE that combines MPLS TE and the DiffServ model and 8CT TE-tunnel-oriented QoS Y.1731, IP FPM, RFC 2544, MPLS OAM, 802.1ag, and 802.3ah IGMPv1, IGMPv2, and IGMPv3 Static multicast and multicast protocols, including PIM-DM, PIM-SM, PIM-SSM, Multicast Source Discovery Protocol (MSDP), and Multiprotocol BGP (MBGP) Multicast CAC Interoperability between multicast protocols Processing of multicast policies (multicast routing protocols and multicast forwarding policies), multicast QoS, and multicast replication for IPoE access users Two-level multicast replication on the SFUs and LPUs to optimize the multicast effect ACL-based packet filtering URPF GTSM DHCP snooping ARP attack defense and DoS attack defense MAC address limit and MAC-IP binding Secure Shell (SSH) and SSHv2 IPsec tunnel Distributed GRE tunnel Distributed NetStream High-precision NAT: CGN Long-term operating temperature: 0°C to 45°C Short-term operating temperature: –5°C to +55°C Long-term operating humidity: 5% RH to 85% RH Short-term operating humidity: 0% RH to 100% RH Operating altitude: ≤ 3,000 meters
QoS
OAM
Multicast
Security
Value-added Services
Environment Requirements

Ordering information

Item	Description
NE40E-X16 Basic Configuration	NE40E-X16 Integrated Chassis Components (Including 8 DC Power)
	Main Processing Unit B4
	200 Gbit/s Switch Fabric Unit B (SFUI-200-B)
	40 Gbit/s Switch Fabric Unit B
NE40E-X8 Basic Configuration	NE40E-X8 Integrated Chassis Components (Including 4 DC Power)
	Switch and Route Processing Unit A5
	200 Gbit/s Switch Fabric Unit C (SFUI-200-C)
	40 Gbit/s Switch Fabric Unit C
NE40E-X3 Basic Configuration	Integrated DC Chassis Components (NE40E-X3)-4U, Including Dual DC Power
	Integrated AC Chassis Components (NE40E-X3)-5U, Including Dual AC Power
	Main Processing Unit D
	Main Processing Unit D2
40G Line Card	Flexible Card Line Processing Unit (LPUF-40,2 sub-slots) A
	2-Port 10G Base LAN/WAN-XFP Flexible Card (P40)
	20-Port 100/1,000 Base-X-SFP Flexible Card (P40)
	2-Port 10G Base LAN/WAN-XFP Flexible Card B (P40-B)
	20-Port 100/1,000 Base-X-SFP Flexible Card B (P40-B)
	2-Port 10G Base LAN/WAN-XFP Flexible Card A (P40-A, Supports 1588v2)
	20-Port 100/1,000 Base-X-SFP Flexible Card A (P40-A, Supports 1588v2)
	20-Port 10/100/1,000 Base-RJ45 Flexible Card (P40)
	4-Port 10G Base LAN/WAN-XFP Flexible Card (P40, Occupies one sub-slot)
	8-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41)
	4-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41)
	48-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)
	2-Port 10G Base LAN/WAN-XFP+24-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)
	4-Port 10G Base LAN/WAN-XFP Integrated Line Processing Unit (LPUI-41)
	40-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)
	2-Port 10G Base LAN/WAN-XFP+20-Port 100/1,000 Base-X-SFP Integrated Line Processing Unit (LPUI-41)

Packaging & Shipping

Package information: carton package with Huawei original package

Our Services

1.We can provide detail documents and remote help for device installation and configuration.
2. Warranty: 1 year. ( After the quality guarantee period began to charge appropriate maintenance service fee.)
3. Our company promises goods enjoy full return due to quality problem since goods delivered within 7 days or 15 days , returned goods must keep original state and it’s accessories are complete.
