Help CenterY3150E,YM3150E,YB3150E,Y3150E/1 Gear Hobbing Machine
Related Products
Specifications
1.CE,standard2.No.1 quality in the market
3.High quality to price ratio
4.spare parts support

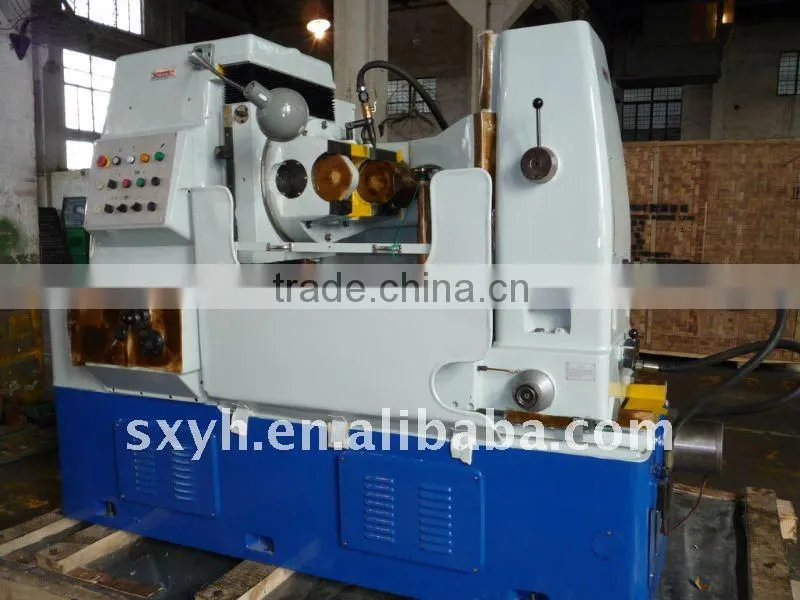

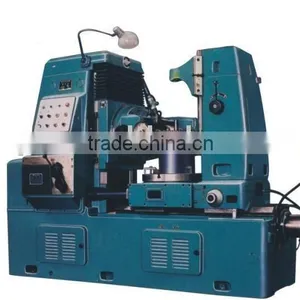

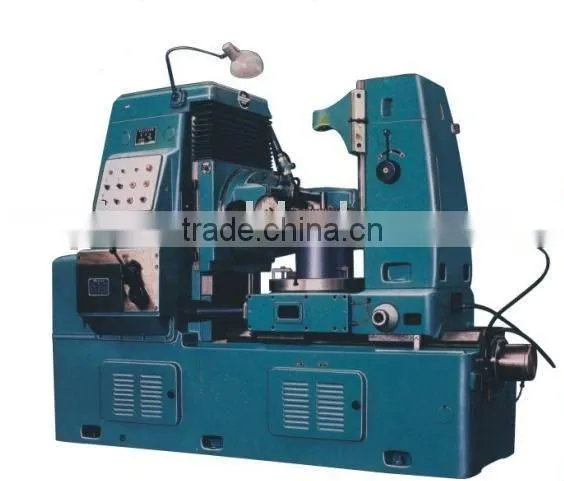

The Y3150E General-purpose Gear Hobbing Machine is capable of cutting spur and helical gears, worm wheels and short spline shafts in one-off, small-scale and a large-scale production. The machine features reasonable construction, high rigidity, less thermal deformation, high speed and heavy load, stable accuracy, easy operation, simple set up and so on. The machine is equipped with an automatic shutdown device, safety-securing mechanisms, and an automatic lubricating system. The machine can be furnished with imported hydraulic components or tangential hob head on customer's request.
The YM3150E Precision Gear Hobbing Machine is developed by some key components refined on the basis of the general-purpose machine so that the working accuracy is increased at least by one grade.
The YB3150E Semi-automatic Gear Hobbing Machine has the same specifications and applications as that of general-purpose machine. It can perform a square working cycle and has automatic hob's service life.
The Y3150E/1 Slightly-tapered Gear Hobbing Machine is designed for hobbing slightly tapered gears. Cylindrical gears can be cut with plain axial feed, while the worm wheels can be cut under automatic radial feed.
Description |
Unit |
Y3150E |
YM3150E |
YB3150E |
Y3150E/1 |
|
Max. workpiece dia. |
mm |
500 |
500 |
500 |
500 |
|
Max. module |
mm |
8 |
6 |
8 |
8 |
|
Max. worktable speed |
rpm |
7.8 |
5.2 |
7.8 |
7.8 |
|
Spindle speed/steps |
rpm |
40-250/9 |
40-250/9 |
40-250/9 |
40-250/9 |
|
Distance between hob axis and worktable surface |
mm |
235-535 |
235-535 |
235-535 |
235-535 |
|
Min. center distance between tool and worktable |
mm |
30 |
30 |
30 |
30 |
|
Distance between tailstock end face and worktable surface |
mm |
380-630 |
380-630 |
380-630 |
380-630 |
|
Max. hob dia. |
mm |
160 |
160 |
160 |
160 |
|
| Max. hob length | 160 |
160 |
160 |
160 |
||
Max. hob head swiveling angle |
degree |
+/-240 |
+/-240 |
+/-240 |
+/-240 |
|
Total power |
Kw |
6.45 |
6.45 |
7.44 |
6.45 |
|
Overall dimensions |
Length | cm |
244 |
244 |
244 |
244 |
| width | 136 |
136 |
136 |
142 |
||
| Height | 180 |
180 |
180 |
180 |
||
Case size |
Length | cm |
269 |
269 |
269 |
269 |
| width | 187 |
187 |
187 |
187 |
||
| Height | 233 |
233 |
233 |
233 |
||
Net / Gross weight |
Kg |
4500/5500 |
4500/5500 |
4500/5500 |
4500/5500 |
|
Remarks: Tangential hob head isavailable on the Model Y3150E, YM3150E and YB3150E for customers' special order to work worm wheels. | ||||||
